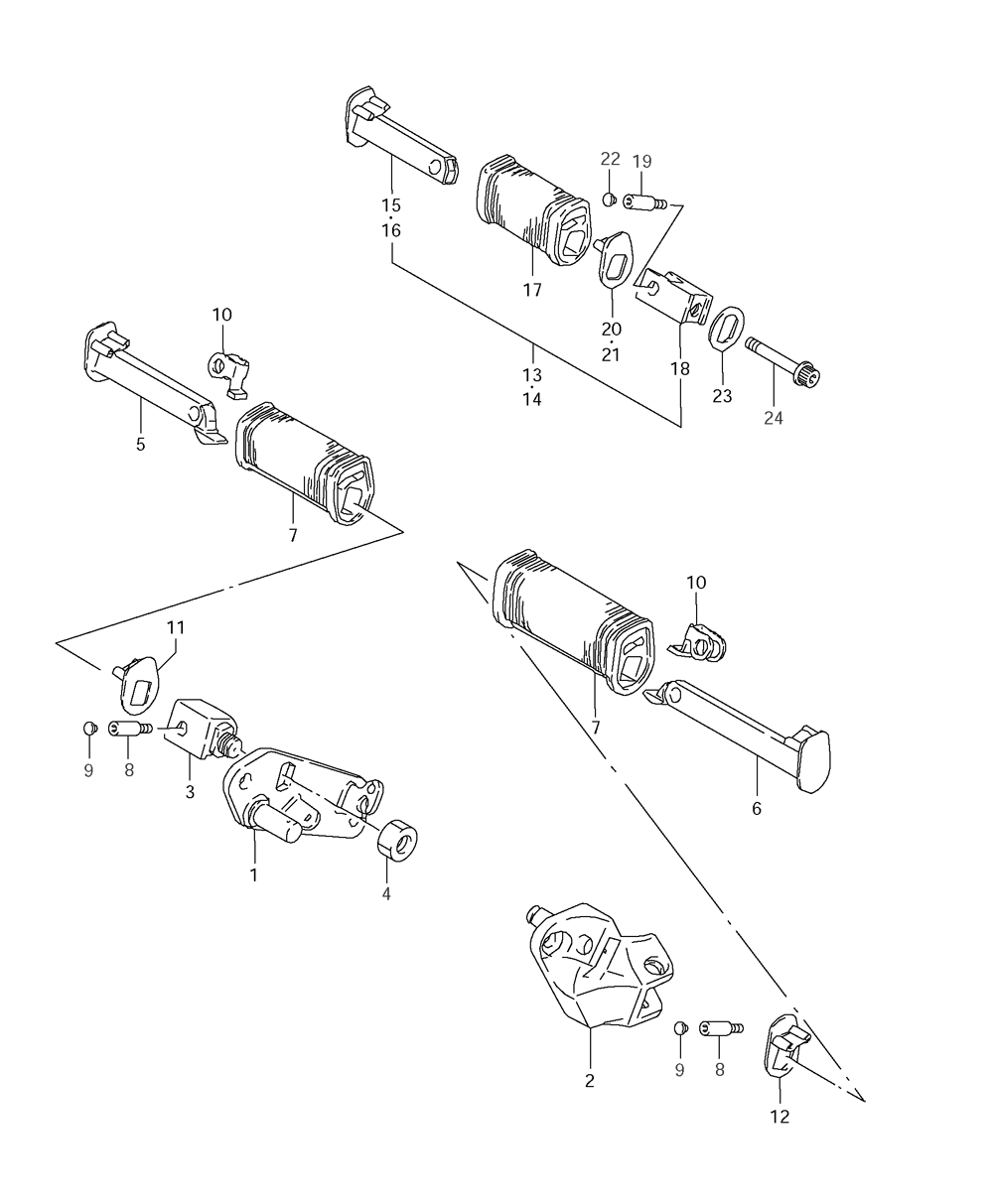

FOOTREST для Suzuki LS650 K7 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    43510-24B00 BRACKET, FRONT FOOTREST RIGHT HAND
    BRACKET, FRONT FOOTREST RIGHT HAND
  • 2
    43520-24B22 BRACKET, FRONT FOOTREST LEFT HAND
    BRACKET, FRONT FOOTREST LEFT HAND
  • 3
    43517-24B01 HOLDER, FRONT FOOTREST RIGHT HAND
    HOLDER, FRONT FOOTREST RIGHT HAND
  • 4
    09140-16029 NUT, RIGHT HAND
    NUT, RIGHT HAND
  • 5
    43530-24B02 BAR, FRONT FOOTREST RIGHT HAND
    BAR, FRONT FOOTREST RIGHT HAND
  • 6
    43540-24B02 BAR, FRONT FOOTREST LEFT HAND
    BAR, FRONT FOOTREST LEFT HAND
  • 7
    43551-38A00 RUBBER
    RUBBER
  • 8
    09106-06100 BOLT, RUBBER
    BOLT, RUBBER
  • 9
    43576-24B00 CAP
    CAP
  • 10
    43570-24B01 CUSHION, FRONT FOOTREST
    CUSHION, FRONT FOOTREST
  • 11
    43470-24B00 WASHER, FRONT FOOTREST RIGHT HAND
    WASHER, FRONT FOOTREST RIGHT HAND
  • 12
    43480-24B00 WASHER, FRONT FOOTREST LEFT HAND
    WASHER, FRONT FOOTREST LEFT HAND
  • 13
    43600-24B00 FOOTREST ASSEMBLY, PILLION RIGHT HAND
    FOOTREST ASSEMBLY, PILLION RIGHT HAND
  • 14
    43700-24B00 FOOTREST ASSEMBLY, PILLION LEFT HAND
    FOOTREST ASSEMBLY, PILLION LEFT HAND
  • 15
    43610-24B01 ...BAR, PILLION FOOTREST RIGHT HAND
    ...BAR, PILLION FOOTREST RIGHT HAND
  • 16
    43710-24B01 ...BAR, PILLION FOOTREST LEFT HAND
    ...BAR, PILLION FOOTREST LEFT HAND
  • 17
    43651-24B00 ...RUBBER, PILLION FOOTREST
    ...RUBBER, PILLION FOOTREST
  • 18
    43621-24B10 ...HOLDER, PILLION FOOTREST
    ...HOLDER, PILLION FOOTREST
  • 19
    09106-06100 ...BOLT, RUBBER
    ...BOLT, RUBBER
  • 20
    43570-38A00 ...WASHER, RIGHT HAND
    ...WASHER, RIGHT HAND
  • 21
    43580-38A00 ...WASHER, LEFT HAND
    ...WASHER, LEFT HAND
  • 22
    43576-24B00 ...CAP, BOLT
    ...CAP, BOLT
  • 23
    43622-24B00 WASHER, HOLDER
    WASHER, HOLDER
  • 24
    09106-10086 BOLT
    BOLT
