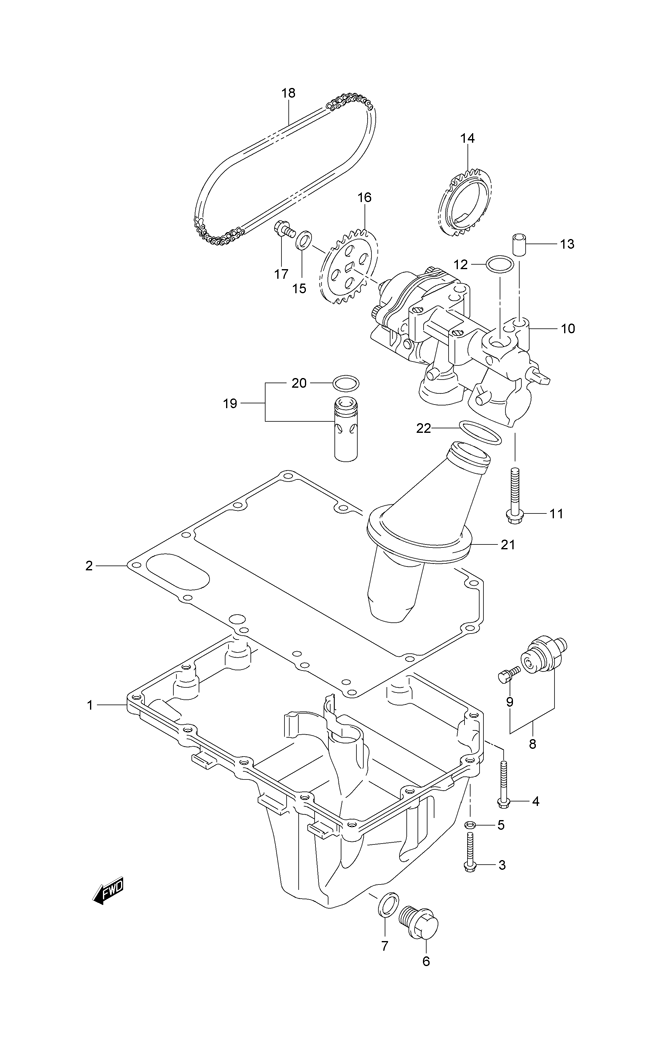

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-R600 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
111511-01H00 PAN, OILPAN, OIL
-
211489-01H00 GASKETGASKET
-
301547-0625A BOLTBOLT
-
409103-06204 BOLT (6X30)BOLT (6X30)
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
609247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
709168-14002 GASKETGASKET
-
837820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
937822-33D00 BOLTBOLT
-
1016400-01H00 PUMP ASSY, OILPUMP ASSY, OIL
-
1101547-0635A BOLTBOLT
-
1209280-15007 O RINGO RING
-
1304211-09149 PINPIN
-
1416321-01H00 SPROCKET, DRIVESPROCKET, DRIVE
-
1509181-10158 WASHERWASHER
-
1616331-01H00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1709103-06285 BOLT (6X12)BOLT (6X12)
-
1816310-01H00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
1916440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
2009280-13004 O RING (D:1.9,ID:13.0)O RING (D:1.9,ID:13.0)
-
2116520-01H00 STRAINER, ENGINE OIL NO.1STRAINER, ENGINE OIL NO.1
-
2209280-25004 O RINGO RING
