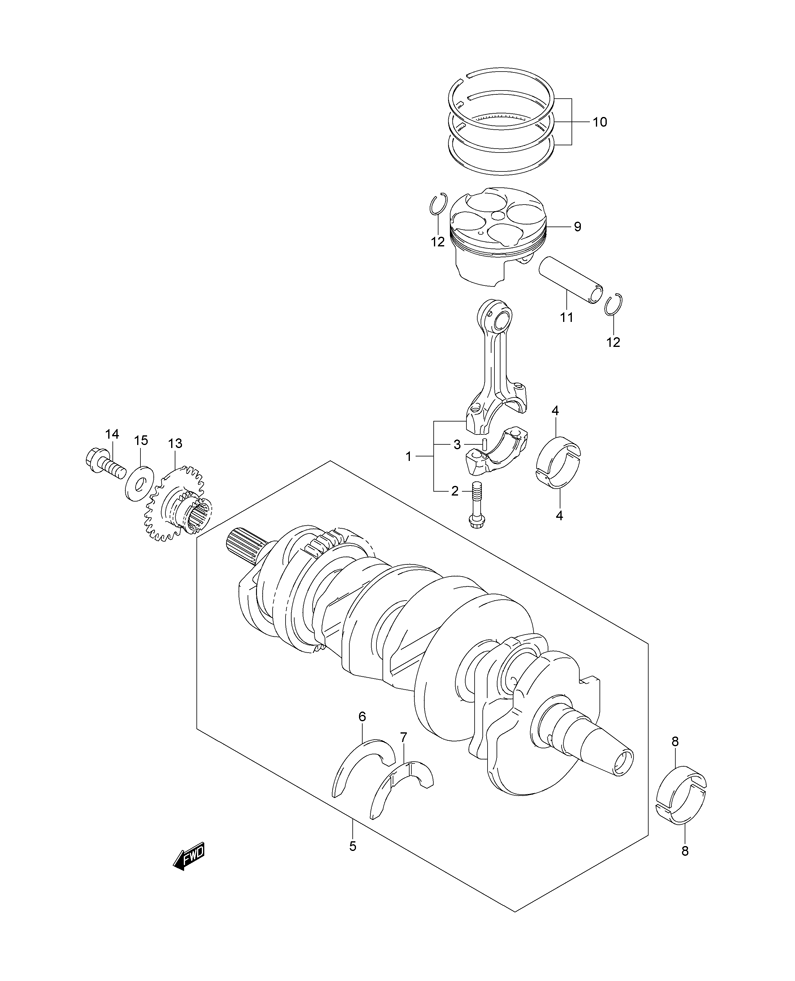

CRANKSHAFT W/ PISTON для Suzuki GSX-R600 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
112160-01H00 ROD ASSY, CONNECTINGROD ASSY, CONNECTING
-
212163-35F00 BOLTBOLT
-
304221-04089 PINPIN
-
412164-29G00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
412164-29G00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
412164-29G00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
412164-29G00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-01810 CRANKSHAFT SETCRANKSHAFT SET
-
612228-17E00-0D0 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
712228-17E00-0A0 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
712228-17E00-0B0 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
712228-17E00-0C0 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
712228-17E00-0D0 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
712228-17E00-0E0 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
712228-17E00-0F0 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
812229-01H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-01H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-01H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-01H00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
812229-01H00-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
912111-01H00-0F0 PISTONPISTON
-
1012140-29G10 RING SET, PISTONRING SET, PISTON
-
1112151-39F00 PIN, PISTONPIN, PISTON
-
1209381-14001 CIRCLIPCIRCLIP
-
1312731-01H00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1409103-10189 BOLTBOLT
-
1508211-10285 WASHERWASHER
