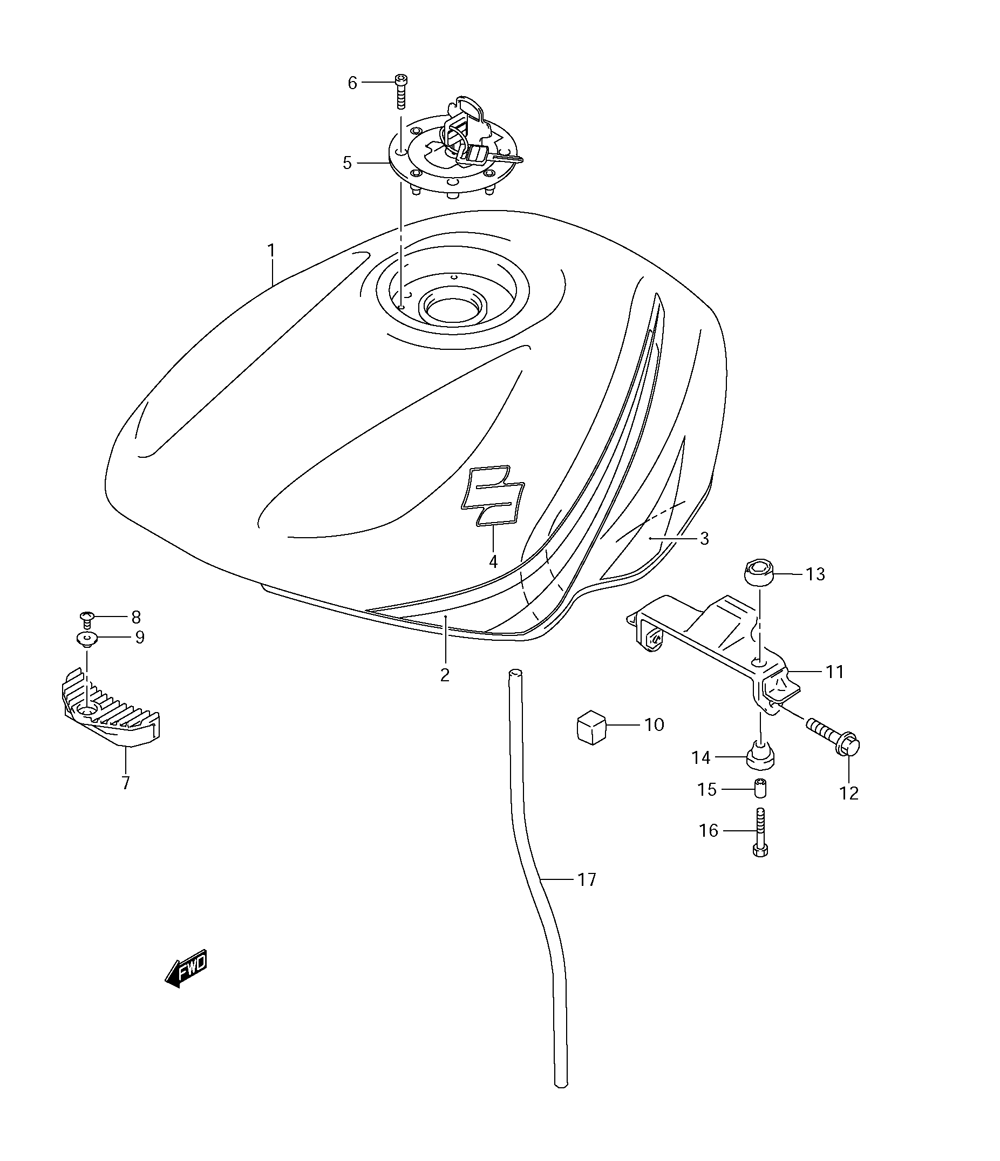

FUEL TANK для Suzuki GS500F K7 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    49100-01D90-YHG TANK ASSEMBLY, FUEL (GRAY) (EXCEPT CALF.) (YHG, YAY FOR BPK)
    TANK ASSEMBLY, FUEL (GRAY) (EXCEPT CALF.) (YHG, YAY FOR BPK)
  • 1
    49100-01D90-YKY TANK ASSEMBLY, FUEL (BLUE) (EXCEPT CALF.) (YBD, YKY FOR CWH)
    TANK ASSEMBLY, FUEL (BLUE) (EXCEPT CALF.) (YBD, YKY FOR CWH)
  • 1
    49100-01DB0-YHG TANK ASSEMBLY, FUEL (GRAY) (FOR CALF. ONLY) (YHG, YAY FOR BPK)
    TANK ASSEMBLY, FUEL (GRAY) (FOR CALF. ONLY) (YHG, YAY FOR BPK)
  • 1
    49100-01DB0-YKY TANK ASSEMBLY, FUEL (BLUE) (FOR CALF. ONLY) (YBD, YKY FOR CWH)
    TANK ASSEMBLY, FUEL (BLUE) (FOR CALF. ONLY) (YBD, YKY FOR CWH)
  • 2
    68110-01DE0-BVB ...TAPE SET, UPPER (FOR YHG)
    ...TAPE SET, UPPER (FOR YHG)
  • 2
    68110-01DE0-DZD ...TAPE SET, UPPER (FOR YKY)
    ...TAPE SET, UPPER (FOR YKY)
  • 3
    68110-01DF0-BPK ...TAPE SET, UPPER (FOR YHG)
    ...TAPE SET, UPPER (FOR YHG)
  • 3
    68110-01DF0-CWH ...TAPE SET, UPPER (FOR YKY)
    ...TAPE SET, UPPER (FOR YKY)
  • 4
    68111-18G20 EMBLEM "S"
    EMBLEM "S"
  • 5
    44201-33820 CAP SET, FUEL TANK (EXCEPT CALF.)
    CAP SET, FUEL TANK (EXCEPT CALF.)
  • 5
    44200-33890 CAP SET, FUEL TANK (FOR CALF. ONLY)
    CAP SET, FUEL TANK (FOR CALF. ONLY)
  • 6
    09106-05017 BOLT
    BOLT
  • 7
    44511-27E00 CUSHION, FRONT
    CUSHION, FRONT
  • 8
    D2116-0510B SCREW
    SCREW
  • 9
    09169-05012 WASHER
    WASHER
  • 10
    44541-01D00 CUSHION, SIDE
    CUSHION, SIDE
  • 11
    44550-0BE00 BRACKET, REAR
    BRACKET, REAR
  • 12
    01551-0840B BOLT, BRACKET
    BOLT, BRACKET
  • 13
    09320-14017 CUSHION, REAR UPPER
    CUSHION, REAR UPPER
  • 14
    09320-10038 CUSHION, REAR LOWER
    CUSHION, REAR LOWER
  • 15
    09180-06271 SPACER
    SPACER
  • 16
    09116-06214 BOLT
    BOLT
  • 17
    44423C0BE00J000 HOSE, DRAIN
    HOSE, DRAIN
