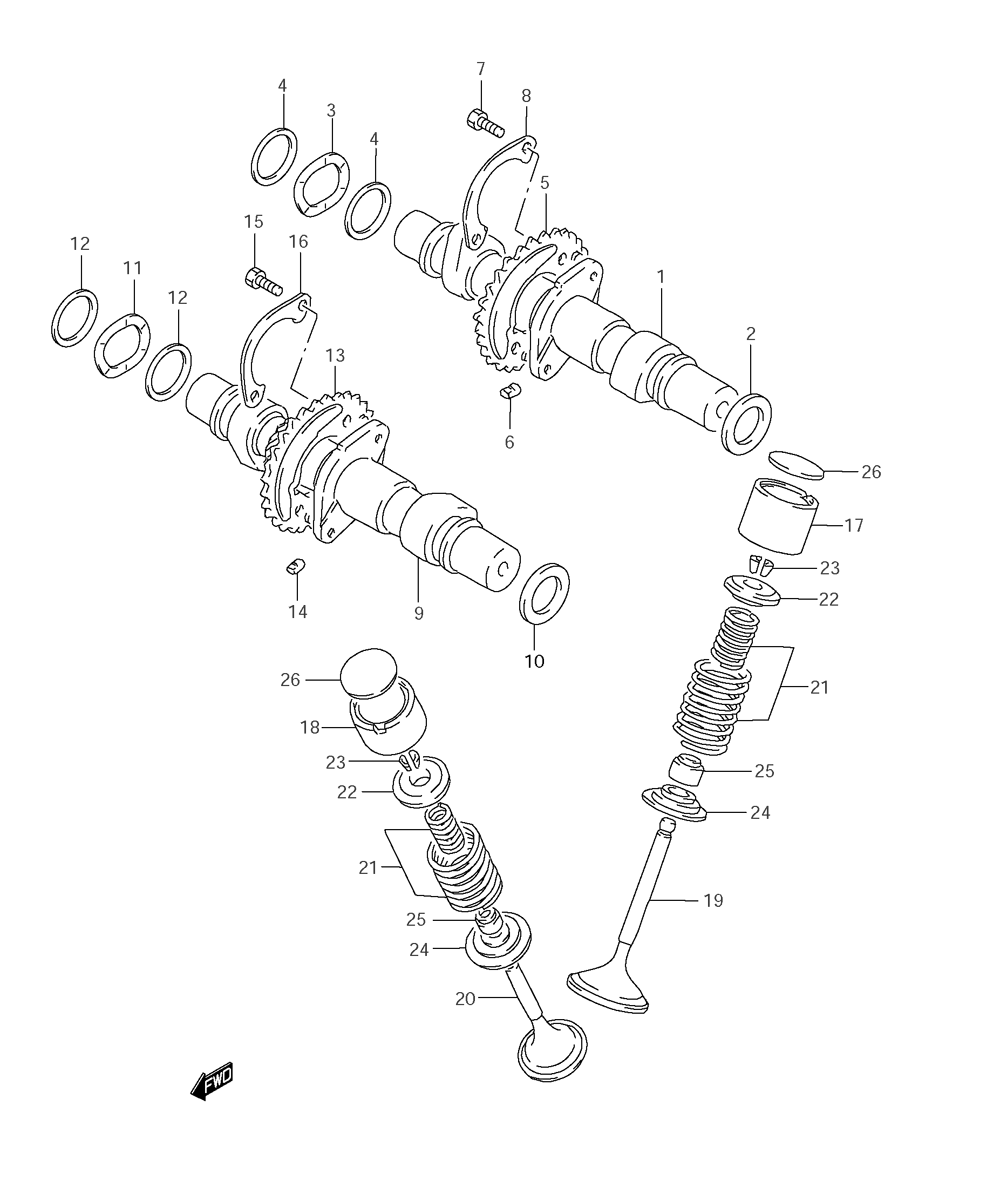

CAMSHAFT W/ VALVES для Suzuki GS500F K7 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    12710-01831 CAMSHAFT SET, INTAKE
    CAMSHAFT SET, INTAKE
  • 2
    09181-22167 ...WASHER (THICKNESS: 1.0)
    ...WASHER (THICKNESS: 1.0)
  • 2
    09160-22074 ...WASHER (THICKNESS: 1.1) (OPTIONAL)
    ...WASHER (THICKNESS: 1.1) (OPTIONAL)
  • 2
    09160-22075 ...WASHER (THICKNESS: 1.2) (OPTIONAL)
    ...WASHER (THICKNESS: 1.2) (OPTIONAL)
  • 2
    09160-22076 ...WASHER (THICKNESS: 1.3) (OPTIONAL)
    ...WASHER (THICKNESS: 1.3) (OPTIONAL)
  • 3
    09164-22012 ...WASHER, WAVE
    ...WASHER, WAVE
  • 4
    09181-22132 ...WASHER (THICKNESS: 0.7)
    ...WASHER (THICKNESS: 0.7)
  • 5
    12740-45042 SPROCKET, INTAKE (NO. OF TEETH: 30)
    SPROCKET, INTAKE (NO. OF TEETH: 30)
  • 6
    12748-44000 PIN
    PIN
  • 7
    09111-06027 BOLT (6X12.5)
    BOLT (6X12.5)
  • 8
    12747-44001 WASHER
    WASHER
  • 9
    12720-01841 CAMSHAFT SET, EXHAUST
    CAMSHAFT SET, EXHAUST
  • 10
    09181-22167 ...WASHER (THICKNESS: 1.0)
    ...WASHER (THICKNESS: 1.0)
  • 10
    09160-22074 ...WASHER (THICKNESS: 1.1) (OPTIONAL)
    ...WASHER (THICKNESS: 1.1) (OPTIONAL)
  • 10
    09160-22075 ...WASHER (THICKNESS: 1.2) (OPTIONAL)
    ...WASHER (THICKNESS: 1.2) (OPTIONAL)
  • 10
    09160-22076 ...WASHER (THICKNESS: 1.3) (OPTIONAL)
    ...WASHER (THICKNESS: 1.3) (OPTIONAL)
  • 11
    09164-22012 ...WASHER, WAVE
    ...WASHER, WAVE
  • 12
    09181-22132 ...WASHER (THICKNESS: 0.7)
    ...WASHER (THICKNESS: 0.7)
  • 13
    12750-45041 SPROCKET, EXHAUST (NO. OF TEETH: 30)
    SPROCKET, EXHAUST (NO. OF TEETH: 30)
  • 14
    12748-44000 PIN
    PIN
  • 15
    09111-06027 BOLT (6X12.5)
    BOLT (6X12.5)
  • 16
    12747-44001 WASHER
    WASHER
  • 17
    12891-15501 TAPPET, INTAKE
    TAPPET, INTAKE
  • 18
    12891-45001 TAPPET, EXHAUST
    TAPPET, EXHAUST
  • 19
    12911-01D00 VALVE, INTAKE
    VALVE, INTAKE
  • 20
    12912-01D00 VALVE, EXHAUST
    VALVE, EXHAUST
  • 21
    12920-44110 SPRING SET, VALVE
    SPRING SET, VALVE
  • 22
    12931-45001 RETAINER, SPRING
    RETAINER, SPRING
  • 23
    12932-45010 COTTER, VALVE
    COTTER, VALVE
  • 24
    12933-45001 SEAT, SPRING
    SEAT, SPRING
  • 25
    09289-07002 OIL SEAL (7X14.4X9)
    OIL SEAL (7X14.4X9)
  • 26
    12892-45000-215 SHIM, TAPPET (THICKNESS: 2.15)
    SHIM, TAPPET (THICKNESS: 2.15)
  • 26
    12892-45000-220 SHIM, TAPPET (THICKNESS: 2.20)
    SHIM, TAPPET (THICKNESS: 2.20)
  • 26
    12892-45000-225 SHIM, TAPPET (THICKNESS: 2.25)
    SHIM, TAPPET (THICKNESS: 2.25)
  • 26
    12892-45000-230 SHIM, TAPPET (THICKNESS: 2.30)
    SHIM, TAPPET (THICKNESS: 2.30)
  • 26
    12892-45000-235 SHIM, TAPPET (THICKNESS: 2.35)
    SHIM, TAPPET (THICKNESS: 2.35)
  • 26
    12892-45000-240 SHIM, TAPPET (THICKNESS: 2.40)
    SHIM, TAPPET (THICKNESS: 2.40)
  • 26
    12892-45000-245 SHIM, TAPPET (THICKNESS: 2.45)
    SHIM, TAPPET (THICKNESS: 2.45)
  • 26
    12892-45000-250 SHIM, TAPPET (THICKNESS: 2.50)
    SHIM, TAPPET (THICKNESS: 2.50)
  • 26
    12892-45000-255 SHIM, TAPPET (THICKNESS: 2.55)
    SHIM, TAPPET (THICKNESS: 2.55)
  • 26
    12892-45000-260 SHIM, TAPPET (THICKNESS: 2.60)
    SHIM, TAPPET (THICKNESS: 2.60)
  • 26
    12892-45000-265 SHIM, TAPPET (THICKNESS: 2.65)
    SHIM, TAPPET (THICKNESS: 2.65)
  • 26
    12892-45000-270 SHIM, TAPPET (THICKNESS: 2.70)
    SHIM, TAPPET (THICKNESS: 2.70)
  • 26
    12892-45000-275 SHIM, TAPPET (THICKNESS: 2.75)
    SHIM, TAPPET (THICKNESS: 2.75)
  • 26
    12892-45000-280 SHIM, TAPPET (THICKNESS: 2.80)
    SHIM, TAPPET (THICKNESS: 2.80)
  • 26
    12892-45000-285 SHIM, TAPPET (THICKNESS: 2.85)
    SHIM, TAPPET (THICKNESS: 2.85)
  • 26
    12892-45000-290 SHIM, TAPPET (THICKNESS: 2.90)
    SHIM, TAPPET (THICKNESS: 2.90)
  • 26
    12892-45000-295 SHIM, TAPPET (THICKNESS: 2.95)
    SHIM, TAPPET (THICKNESS: 2.95)
  • 26
    12892-45000-300 SHIM, TAPPET (THICKNESS: 3.00)
    SHIM, TAPPET (THICKNESS: 3.00)
  • 26
    12892-45000-305 SHIM, TAPPET (THICKNESS: 3.05)
    SHIM, TAPPET (THICKNESS: 3.05)
  • 26
    12892-45000-310 SHIM, TAPPET (THICKNESS: 3.10)
    SHIM, TAPPET (THICKNESS: 3.10)
