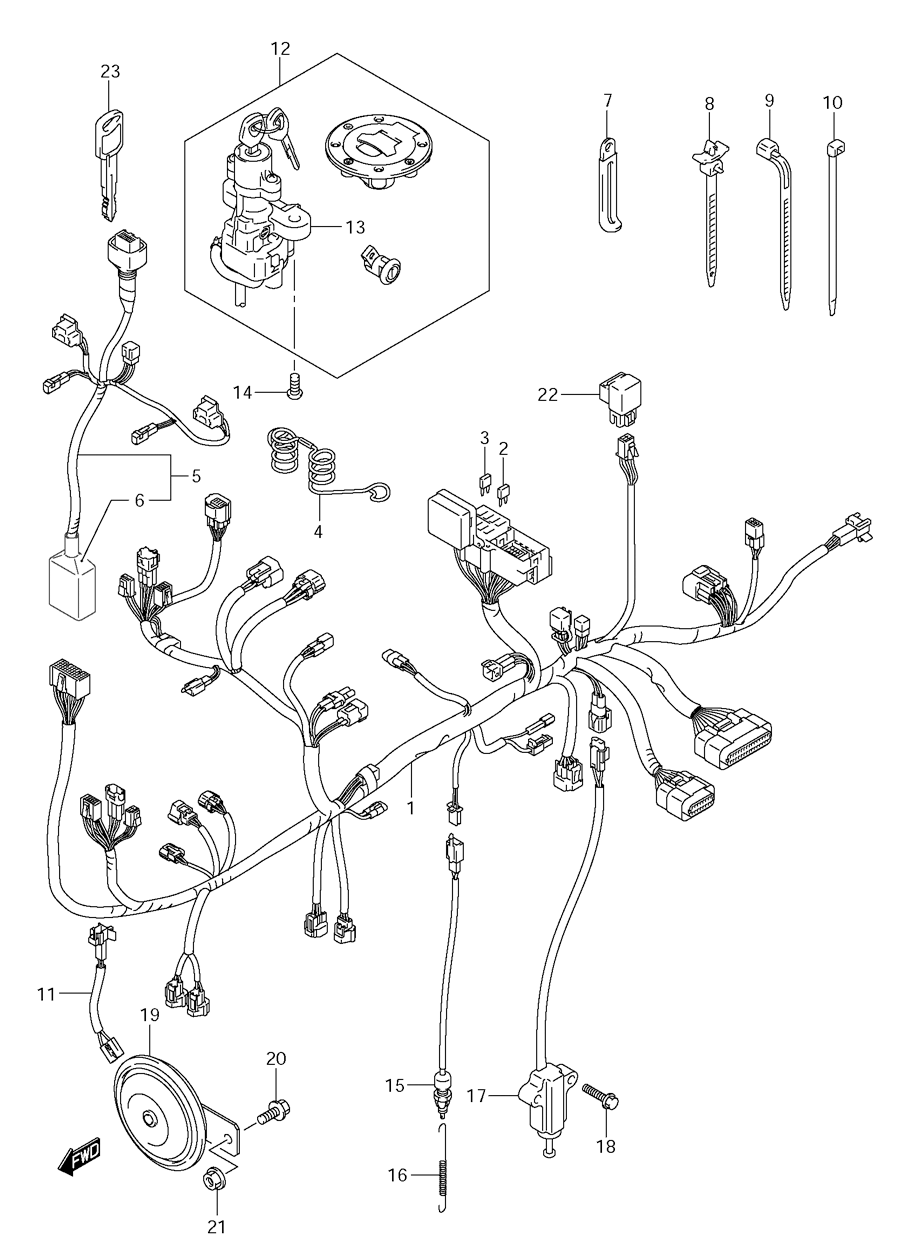

ELECTRICAL - WIRING HARNESS для Suzuki DL650 K7 - 2007 года выпуска
-
№АртикулНазвание
-
136610-27GB0 HARNESS, WIRING, NO.1HARNESS, WIRING, NO.1
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
436619-06G01 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
536620-27G80 HARNESS, WIRING, NO.2HARNESS, WIRING, NO.2
-
636618-18G10 ...COVER, CONNECTOR...COVER, CONNECTOR
-
709404-06429 CLAMP (LENGTH: 45)CLAMP (LENGTH: 45)
-
709404-06433 CLAMP (LENGTH: 80)CLAMP (LENGTH: 80)
-
809407-11402 CLAMPCLAMP
-
909407-11401 CLAMP (LENGTH: 95)CLAMP (LENGTH: 95)
-
909407-14403 CLAMP (LENGTH: 125)CLAMP (LENGTH: 125)
-
1009407-14407 CLAMP (LENGTH: 145)CLAMP (LENGTH: 145)
-
1136852-06G00 WIRE, HORN LEADWIRE, HORN LEAD
-
1237000-27860 LOCK SETLOCK SET
-
1237000-27870 LOCK SET (FOR CALF. ONLY)LOCK SET (FOR CALF. ONLY)
-
1337100-27G00 ...LOCK ASSEMBLY, STEERING...LOCK ASSEMBLY, STEERING
-
1409139-08016 BOLT (8X20)BOLT (8X20)
-
1537740-45D00 SWITCH ASSEMBLY, STOP LAMPSWITCH ASSEMBLY, STOP LAMP
-
1609443-06012 SPRINGSPRING
-
1737840-06G00 SWITCH ASSEMBLY, SIDE STANDSWITCH ASSEMBLY, SIDE STAND
-
1801550-06163 BOLTBOLT
-
1938500-27G00 HORN ASSEMBLYHORN ASSEMBLY
-
2001550-08123 BOLT, HORNBOLT, HORN
-
2108316-1008A NUT, HORNNUT, HORN
-
2238740-24X50 RELAY ASSEMBLY, FUEL PUMPRELAY ASSEMBLY, FUEL PUMP
-
2337146-33E00 KEY, BLANK (OPTIONAL)KEY, BLANK (OPTIONAL)
