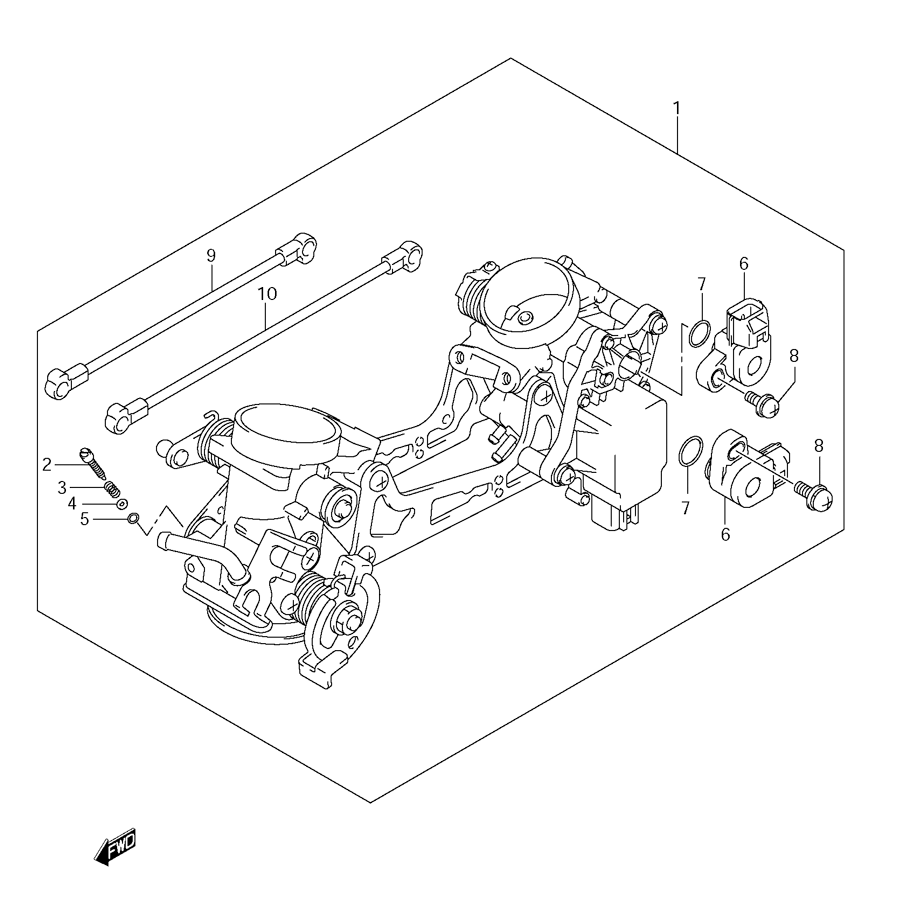

CARBURETOR - THROTTLE BODY для Suzuki DL650 K7 - 2007 года выпуска
-
№АртикулНазвание
-
113405-27G20 THROTTLE BODY (EXCEPT CALF.)THROTTLE BODY (EXCEPT CALF.)
-
113405-27G30 THROTTLE BODY (FOR CALF. ONLY)THROTTLE BODY (FOR CALF. ONLY)
-
213269-33E00 ...SCREW...SCREW
-
313268-48700 ...SPRING...SPRING
-
413606-47A00 ...WASHER...WASHER
-
513295-29900 ...O RING...O RING
-
613580-27G20 ...SENSOR ASSEMBLY...SENSOR ASSEMBLY
-
713575-29G00 ...O RING...O RING
-
813605-02F00 ...SCREW...SCREW
-
913552-17G00 ...ROD ASSEMBLY...ROD ASSEMBLY
-
1013552-16G00 ...ROD ASSEMBLY...ROD ASSEMBLY
