GASKET SET для Suzuki DL1000 K7 - 2007 года выпуска

  • №
    Артикул
    Название

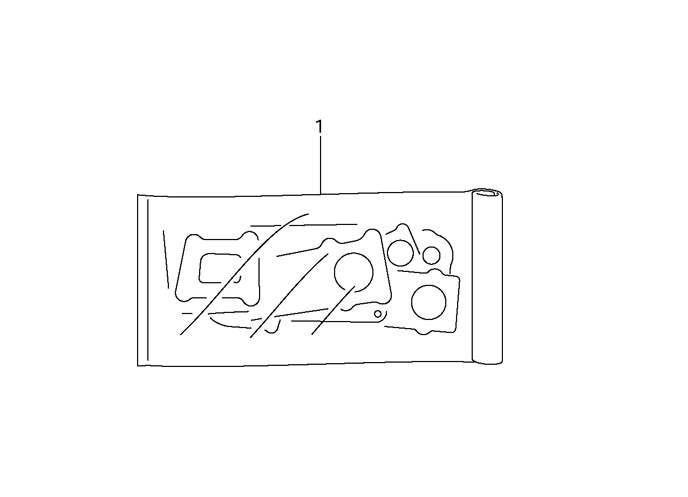

  • 1
    11401-06840 GASKET SET (OPTIONAL)
    GASKET SET (OPTIONAL)
  • 2
    11141-02F01 ...GASKET, CYLINDER HEAD (NOT SHOWN)
    ...GASKET, CYLINDER HEAD (NOT SHOWN)
  • 3
    11173-02F00 ...GASKET, CYLINDER HEAD COVER NO.1 (NOT SHOWN)
    ...GASKET, CYLINDER HEAD COVER NO.1 (NOT SHOWN)
  • 4
    11178-17E00 ...GASKET, CYLINDER HEAD COVER NO.2 (NOT SHOWN)
    ...GASKET, CYLINDER HEAD COVER NO.2 (NOT SHOWN)
  • 5
    11182-35F00 ...GASKET, 2ND AIR PASSAGE (NOT SHOWN)
    ...GASKET, 2ND AIR PASSAGE (NOT SHOWN)
  • 6
    11241-02F01 ...GASKET, CYLINDER FRONT (NOT SHOWN)
    ...GASKET, CYLINDER FRONT (NOT SHOWN)
  • 7
    11242-02F01 ...GASKET, CYLINDER REAR (NOT SHOWN)
    ...GASKET, CYLINDER REAR (NOT SHOWN)
  • 8
    11482-06G10 ...GASKET, CLUTCH COVER (NOT SHOWN)
    ...GASKET, CLUTCH COVER (NOT SHOWN)
  • 9
    11483-02F10 ...GASKET, MAGNETO COVER (NOT SHOWN)
    ...GASKET, MAGNETO COVER (NOT SHOWN)
  • 10
    11485-02F10 ...GASKET, GEAR SHIFT COVER (NOT SHOWN)
    ...GASKET, GEAR SHIFT COVER (NOT SHOWN)
  • 11
    12837-19B10 ...GASKET, TENSIONER ADJUSTER (NOT SHOWN)
    ...GASKET, TENSIONER ADJUSTER (NOT SHOWN)
  • 12
    12837-24A10 ...GASKET, TENSIONER ADJUSTER (NOT SHOWN)
    ...GASKET, TENSIONER ADJUSTER (NOT SHOWN)
  • 13
    14181-31D00 ...GASKET, EXHAUST PIPE (NOT SHOWN)
    ...GASKET, EXHAUST PIPE (NOT SHOWN)
  • 14
    14771-02F00 ...CONNECTOR, EXHAUST (NOT SHOWN)
    ...CONNECTOR, EXHAUST (NOT SHOWN)
  • 15
    15201-35F00 ...O RING, FUEL PUMP (NOT SHOWN)
    ...O RING, FUEL PUMP (NOT SHOWN)
  • 16
    17689-50F00 ...O RING (NOT SHOWN)
    ...O RING (NOT SHOWN)
  • 17
    09168-14002 ...GASKET (13.8X18.8X0.4) (NOT SHOWN)
    ...GASKET (13.8X18.8X0.4) (NOT SHOWN)
  • 18
    09168-14015 ...GASKET (14X20X1.5) (NOT SHOWN)
    ...GASKET (14X20X1.5) (NOT SHOWN)
  • 19
    09280-33004 ...O RING (DIAMETER: 3.1,INSIDE DIAMETER: 32.7) (NOT SHOWN)
    ...O RING (DIAMETER: 3.1,INSIDE DIAMETER: 32.7) (NOT SHOWN)
  • 20
    09280-55005 ...O RING (DIAMETER: 2.4,INSIDE DIAMETER: 55.6) (NOT SHOWN)
    ...O RING (DIAMETER: 2.4,INSIDE DIAMETER: 55.6) (NOT SHOWN)
