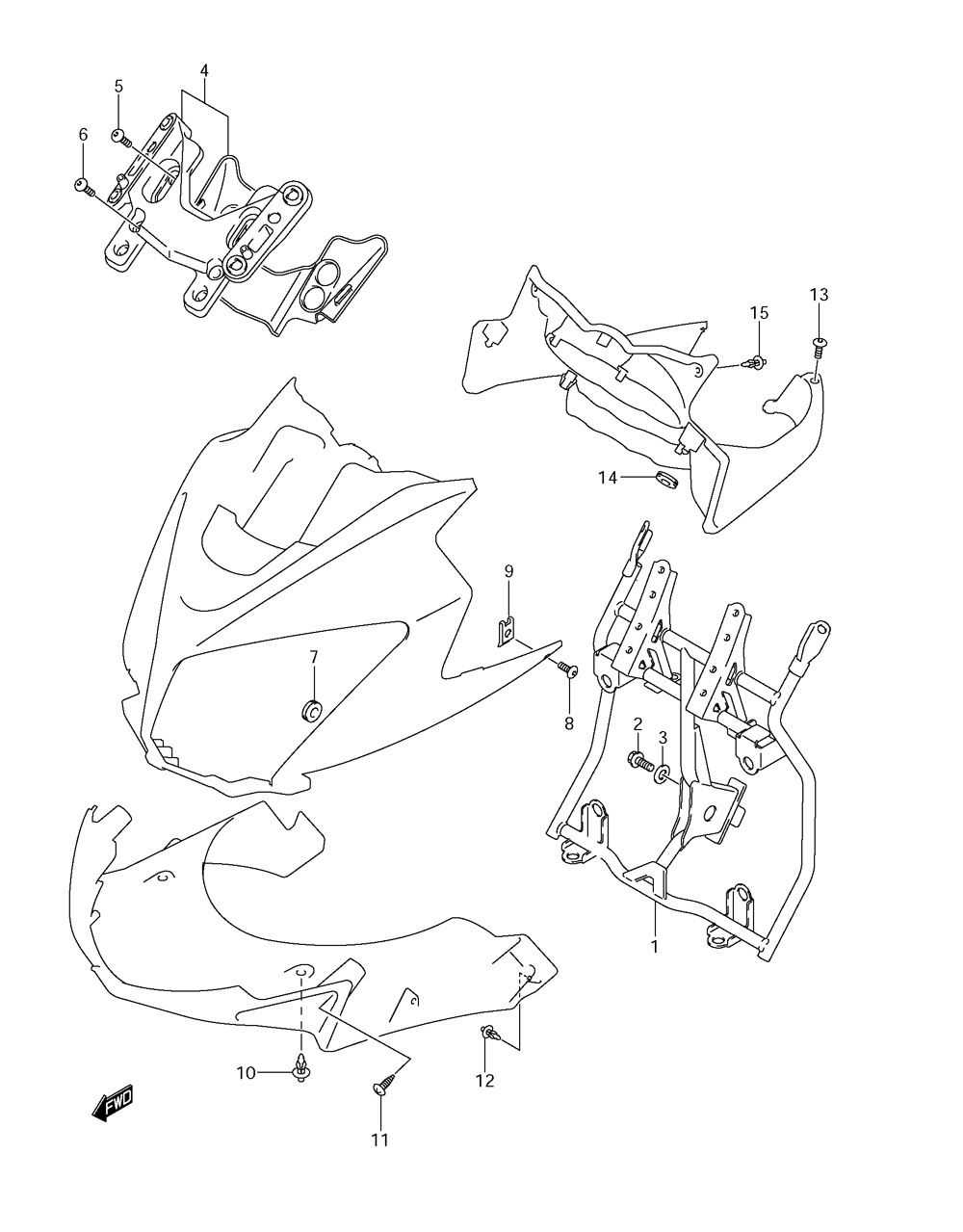

COWLING BODY - INSTALLATION PARTS для Suzuki DL1000 K7 - 2007 года выпуска`
-
№АртикулНазвание
-
194510-27G01 BRACE, COWLINGBRACE, COWLING
-
209103-08505 BOLTBOLT
-
309164-08020 WASHERWASHER
-
494600-27G00 BRACE, WINDSCREENBRACE, WINDSCREEN
-
509139-06126 SCREW, UPPERSCREW, UPPER
-
609139-06120 SCREW, LOWERSCREW, LOWER
-
709320-08028 CUSHIONCUSHION
-
809139-05064 SCREW, SIDESCREW, SIDE
-
909148-05038 NUT, SIDENUT, SIDE
-
1009409-07333 CLIP, INNER COVER UPPERCLIP, INNER COVER UPPER
-
1103241-0516B SCREW, INNER COVERSCREW, INNER COVER
-
1209409-06314-5PK CLIP, SIDE (BLACK)CLIP, SIDE (BLACK)
-
1309139-06122 SCREW, METER PANEL REAR SIDESCREW, METER PANEL REAR SIDE
-
1409320-06016 CUSHION, METER PANEL REARCUSHION, METER PANEL REAR
-
1509409-06314-5PK CLIP, METER PANEL (BLACK)CLIP, METER PANEL (BLACK)
