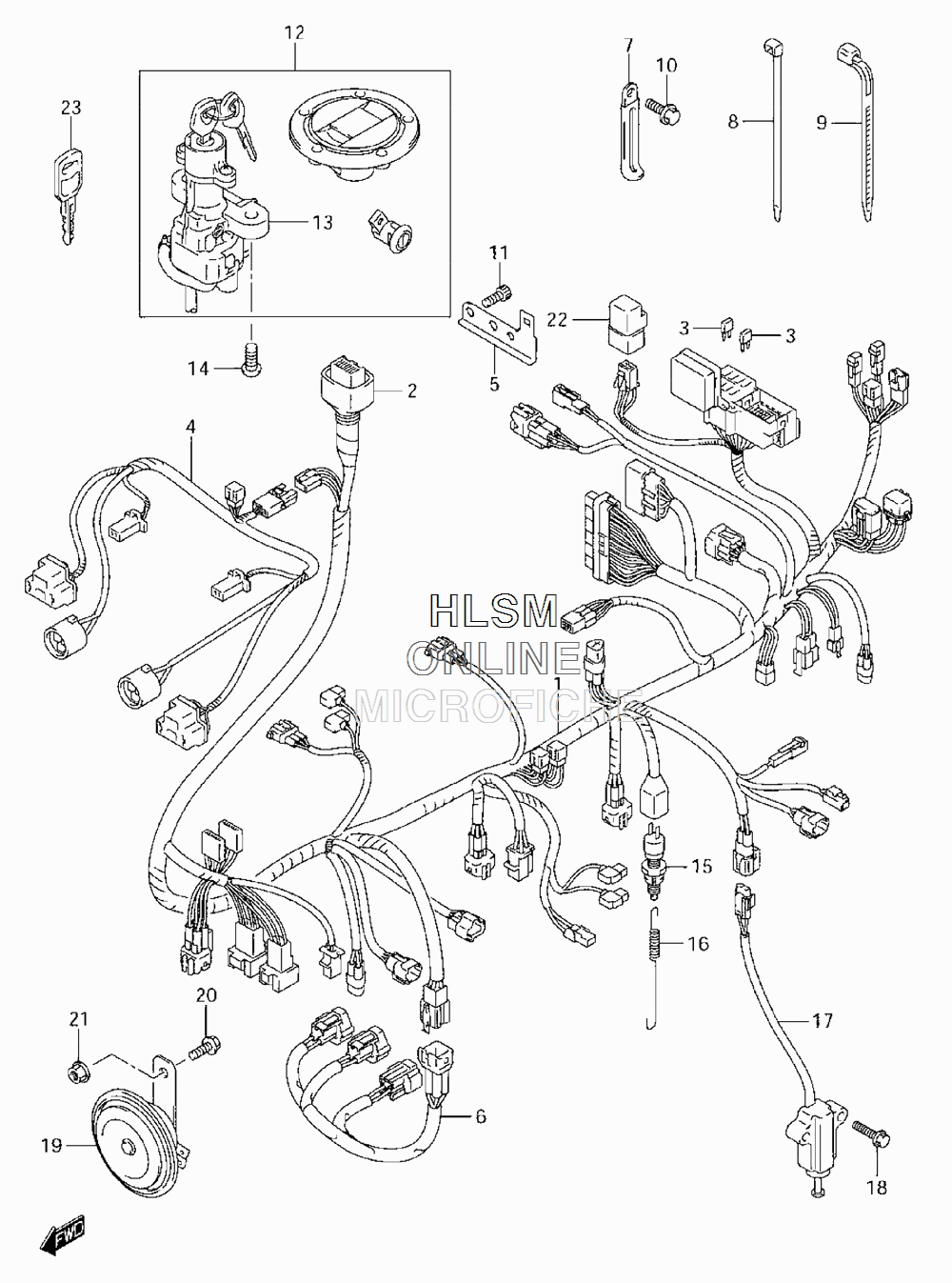

ELECTRICAL - WIRING HARNESS для Suzuki SV1000S K6 - 2006 года выпуска`
-
№АртикулНазвание
-
136610-16GM0 HARNESS, WIRING NO.1 (INCL. 2-3)HARNESS, WIRING NO.1 (INCL. 2-3)
-
236618-33E00 CAPCAP
-
309481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436620-16G10 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
536687-16G00 HOLDER, COUPLERHOLDER, COUPLER
-
636859-16G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
709404-06429 CLAMP (L:45)CLAMP (L:45)
-
809407-14407 CLAMP (L:145)CLAMP (L:145)
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
909407-18402 CLAMP (L:165)CLAMP (L:165)
-
1001550-0612B BOLTBOLT
-
1107130-0610B BOLTBOLT
-
1237000-16840 LOCK SETLOCK SET
-
1237000-16850 LOCK SET (INCL. 13)LOCK SET (INCL. 13)
-
1337100-16G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1409139-08016 SCREW (8X20)SCREW (8X20)
-
1537740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1609443-06016 SPRING, STOP LAMPSPRING, STOP LAMP
-
1737840-16G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1801550-06257 BOLTBOLT
-
1938500-16G00 HORN ASSYHORN ASSY
-
2001550-0812B BOLTBOLT
-
2108316-1008B NUTNUT
-
2238740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2337146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
