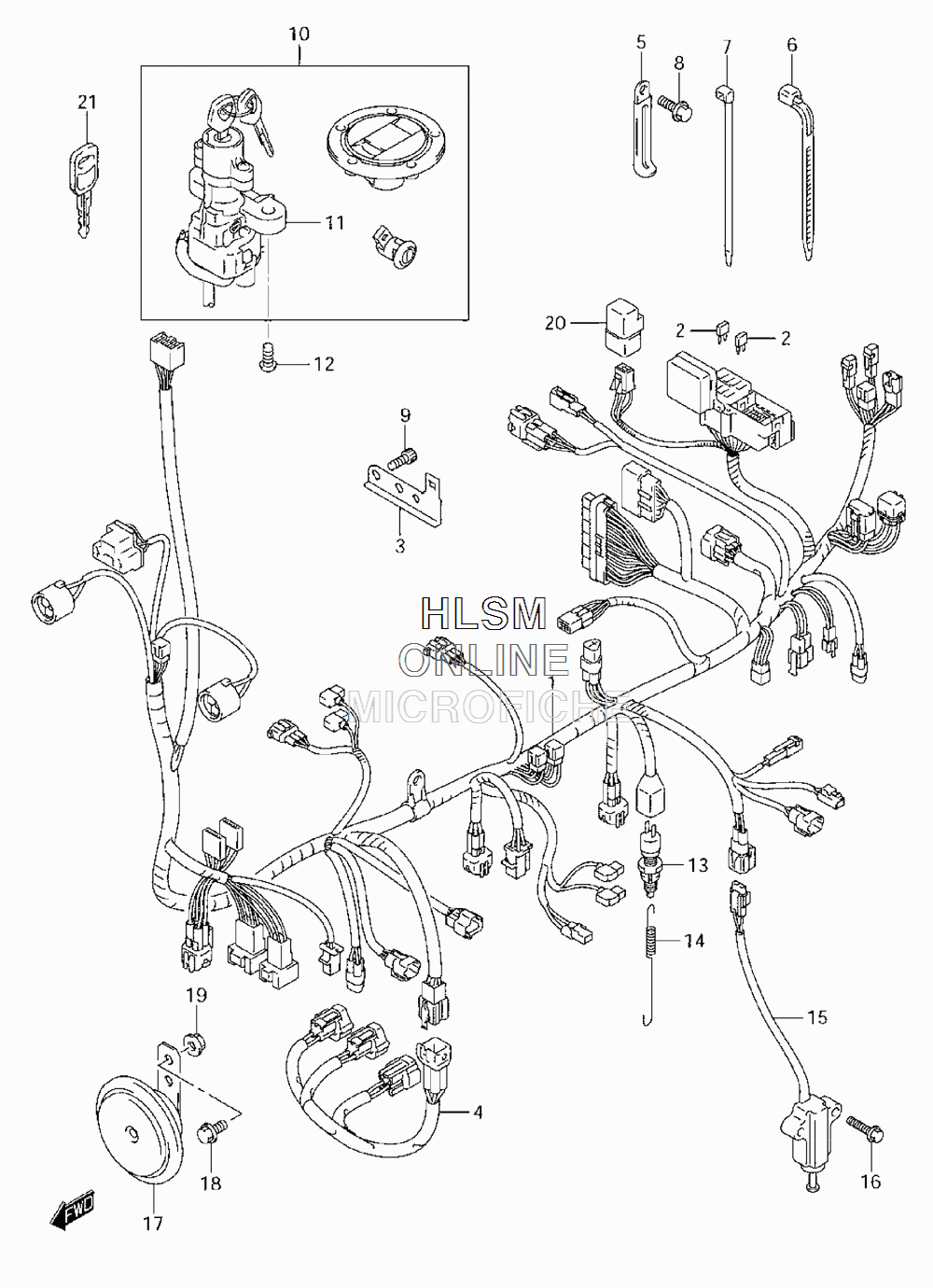

ELECTRICAL - WIRING HARNESS для Suzuki SV1000 K6 - 2006 года выпуска`
-
№АртикулНазвание
-
136610-16GJ0 HARNESS, WIRING NO.1 (INCL. 2-2)HARNESS, WIRING NO.1 (INCL. 2-2)
-
209481-10501 FUSE (10A)FUSE (10A)
-
209481-15501 FUSE (15A)FUSE (15A)
-
336687-16G00 HOLDER, COUPLERHOLDER, COUPLER
-
436859-16G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
509404-06429 CLAMP (L:45)CLAMP (L:45)
-
509404-08207 CLAMP (L:80)CLAMP (L:80)
-
609407-11401 CLAMP (L:95)CLAMP (L:95)
-
609407-18402 CLAMP (L:165)CLAMP (L:165)
-
709407-14407 CLAMP (L:145)CLAMP (L:145)
-
801550-0612B BOLTBOLT
-
907130-0610B BOLTBOLT
-
1037000-16850 LOCK SET (INCL. 11)LOCK SET (INCL. 11)
-
1137100-16G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1209139-08016 SCREW (8X20)SCREW (8X20)
-
1337740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06016 SPRING, STOP LAMPSPRING, STOP LAMP
-
1537840-16G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1601550-06257 BOLTBOLT
-
1738500-16G00 HORN ASSYHORN ASSY
-
1801550-0812B BOLTBOLT
-
1908316-1008B NUTNUT
-
2038740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2137146-33E00 KEY, BLANKKEY, BLANK
