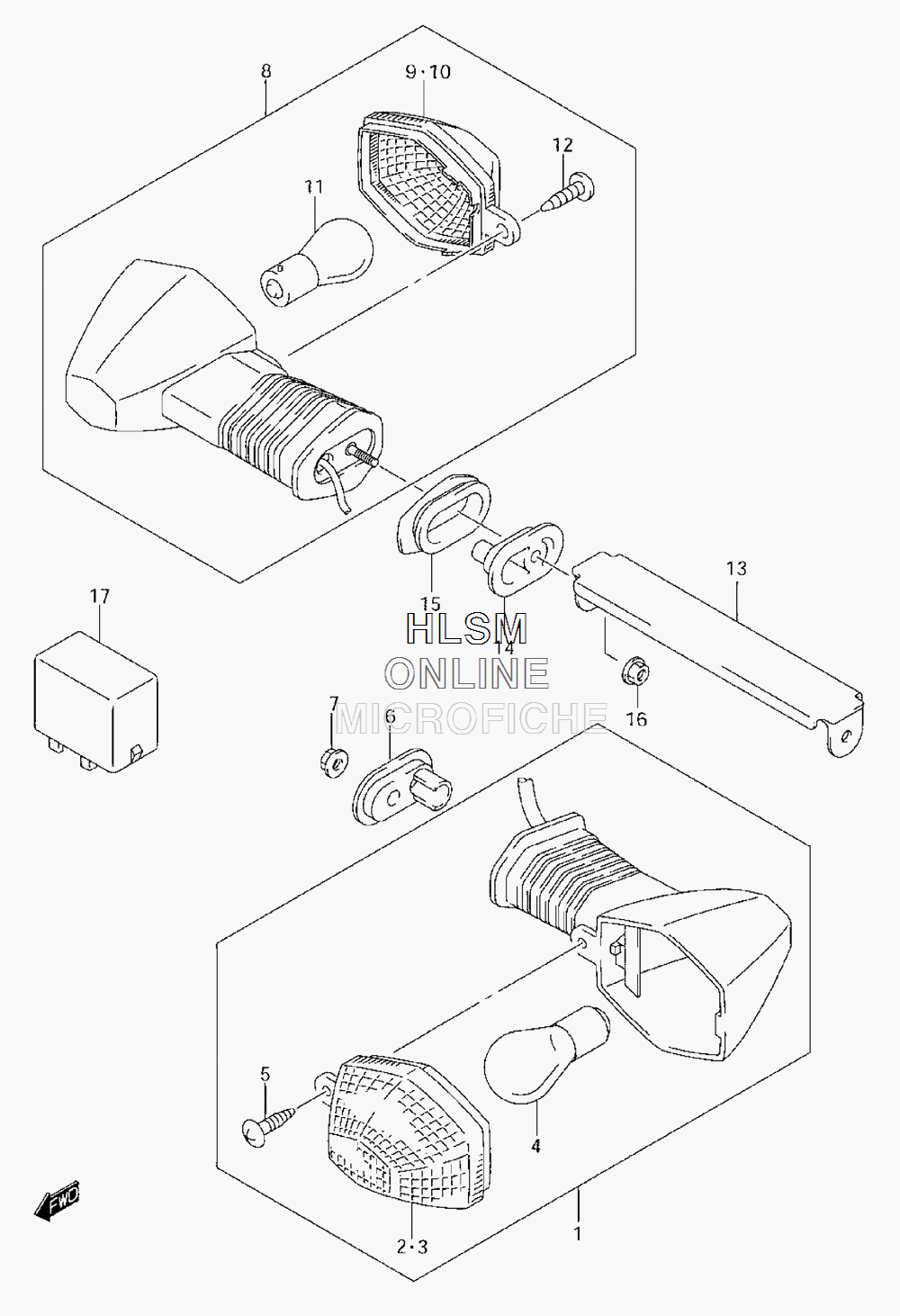

TURN SIGNAL ASSY. для Suzuki SV1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
135601-16G30 LAMP ASSY, FRONT TURN, RIGHT HAND (INCL. 2-5)LAMP ASSY, FRONT TURN, RIGHT HAND (INCL. 2-5)
-
135602-16G30 LAMP ASSY, FRONT TURN, LEFT HAND (INCL. 2-5)LAMP ASSY, FRONT TURN, LEFT HAND (INCL. 2-5)
-
235612-31F30 LENS, RIGHT HANDLENS, RIGHT HAND
-
335632-31F30 LENS, LEFT HANDLENS, LEFT HAND
-
409471-12045 BULB (12V,21W)BULB (12V,21W)
-
503242-04163 SCREWSCREW
-
635629-31F40 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
708316-1005B NUTNUT
-
835603-16GC0 LAMP ASSY, REAR TURN, RIGHT HAND (INCL. 9-12)LAMP ASSY, REAR TURN, RIGHT HAND (INCL. 9-12)
-
835604-16GC0 LAMP ASSY, REAR TURN, LEFT HAND (INCL. 9-12)LAMP ASSY, REAR TURN, LEFT HAND (INCL. 9-12)
-
935632-31F30 LENS, RIGHT HANDLENS, RIGHT HAND
-
1035612-31F30 LENS, LEFT HANDLENS, LEFT HAND
-
1109471-12045 BULB (12V,21W)BULB (12V,21W)
-
1203242-04163 SCREWSCREW
-
1335620-16G00 BRACKET, REAR TURN SIGNALBRACKET, REAR TURN SIGNAL
-
1435629-16G00 PLATE, REAR TURNSIGNALPLATE, REAR TURNSIGNAL
-
1535647-16G00 CUSHION, REARCUSHION, REAR
-
1608316-1005B NUTNUT
-
1738610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
