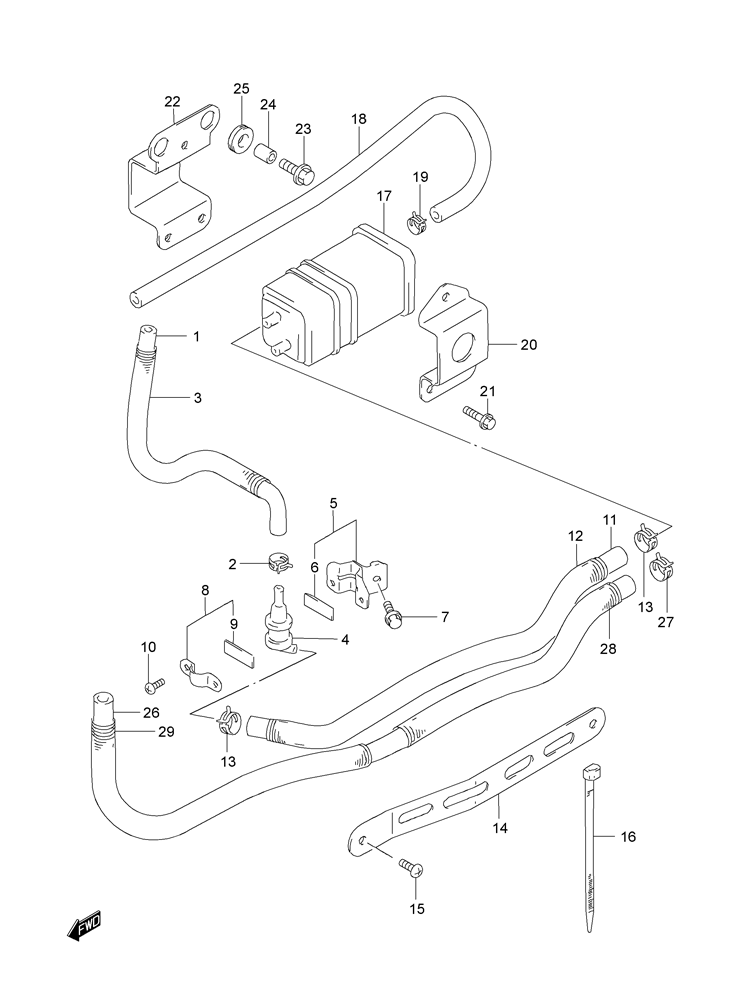

CANISTER (CALIF. ONLY) для Suzuki DR650SE K6 - 2006 года выпуска
-
№АртикулНазвание
-
144434-29F00 HOSE, TANK AND VALVEHOSE, TANK AND VALVE
-
209401-11413 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
309440-13012 SPRINGSPRING
-
444240-17C00 VALVE, BREATHER (CALIF. ONLY)VALVE, BREATHER (CALIF. ONLY)
-
544890-32E00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
644894-24A00 CUSHIONCUSHION
-
701550-06123 BOLT, BRACKETBOLT, BRACKET
-
844892-24A00 CLAMP, VALVECLAMP, VALVE
-
944894-24A00 CUSHIONCUSHION
-
1002112-04083 SCREW, CLAMPSCREW, CLAMP
-
1109355-54116-600 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
1209440-13043 SPRINGSPRING
-
1309401-11413 CLIP (CAILF. ONLY)CLIP (CAILF. ONLY)
-
1444945-32E00 PLATE, CANISTER HOSEPLATE, CANISTER HOSE
-
1502142-06123 SCREWSCREW
-
1609407-14403 CLAMPCLAMP
-
1717210-14A00 CANISTERCANISTER
-
1717210-14A00 CANISTERCANISTER
-
1809355-70125-600 HOSE, DRAINHOSE, DRAIN
-
1909401-11407 CLIPCLIP
-
2044921-32E00 PLATE, CANISTER OUTERPLATE, CANISTER OUTER
-
2101550-06123 BOLTBOLT
-
2244930-32E00 PLATE, CANISTER INNERPLATE, CANISTER INNER
-
2309116-06167 BOLTBOLT
-
2409180-06286 SPACERSPACER
-
2509320-10015 CUSHIONCUSHION
-
2609355-54115-00B HOSE, CANISTER AND CARBHOSE, CANISTER AND CARB
-
2709401-11413 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
2809440-13043 SPRING, NO.1SPRING, NO.1
-
2909440-13053 SPRING, NO.2SPRING, NO.2
