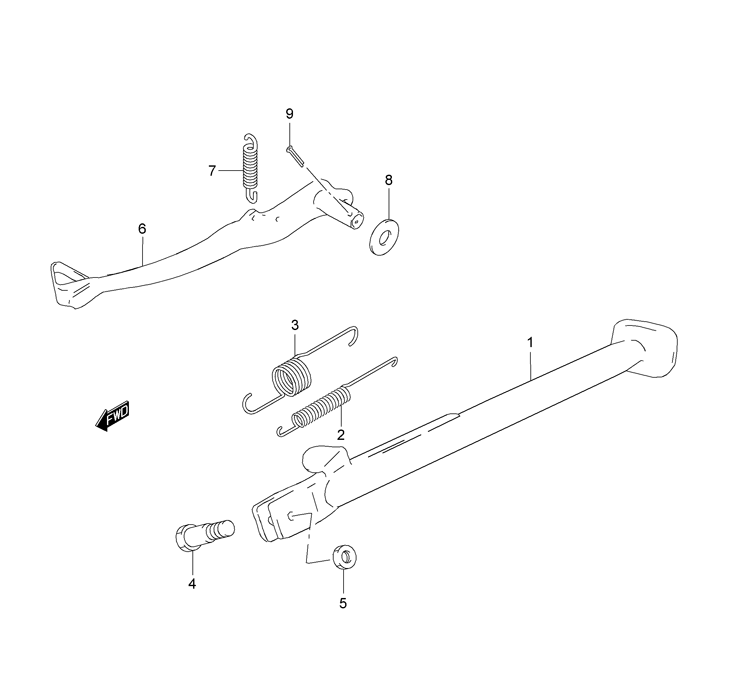

BRAKE PEDAL W/ STAND для Suzuki DR650SE K6 - 2006 года выпуска
-
№АртикулНазвание
-
142310-32E20 STAND, PROPSTAND, PROP
-
209443-12045 SPRING, INNERSPRING, INNER
-
309443-19010 SPRING, OUTERSPRING, OUTER
-
409111-10047 BOLTBOLT
-
509159-10097 NUTNUT
-
643110-32E00 PEDAL, BRAKEPEDAL, BRAKE
-
709443-11030 SPRING, RETURNSPRING, RETURN
-
809160-15049 WASHERWASHER
-
904111-30308 COTTER PINCOTTER PIN
