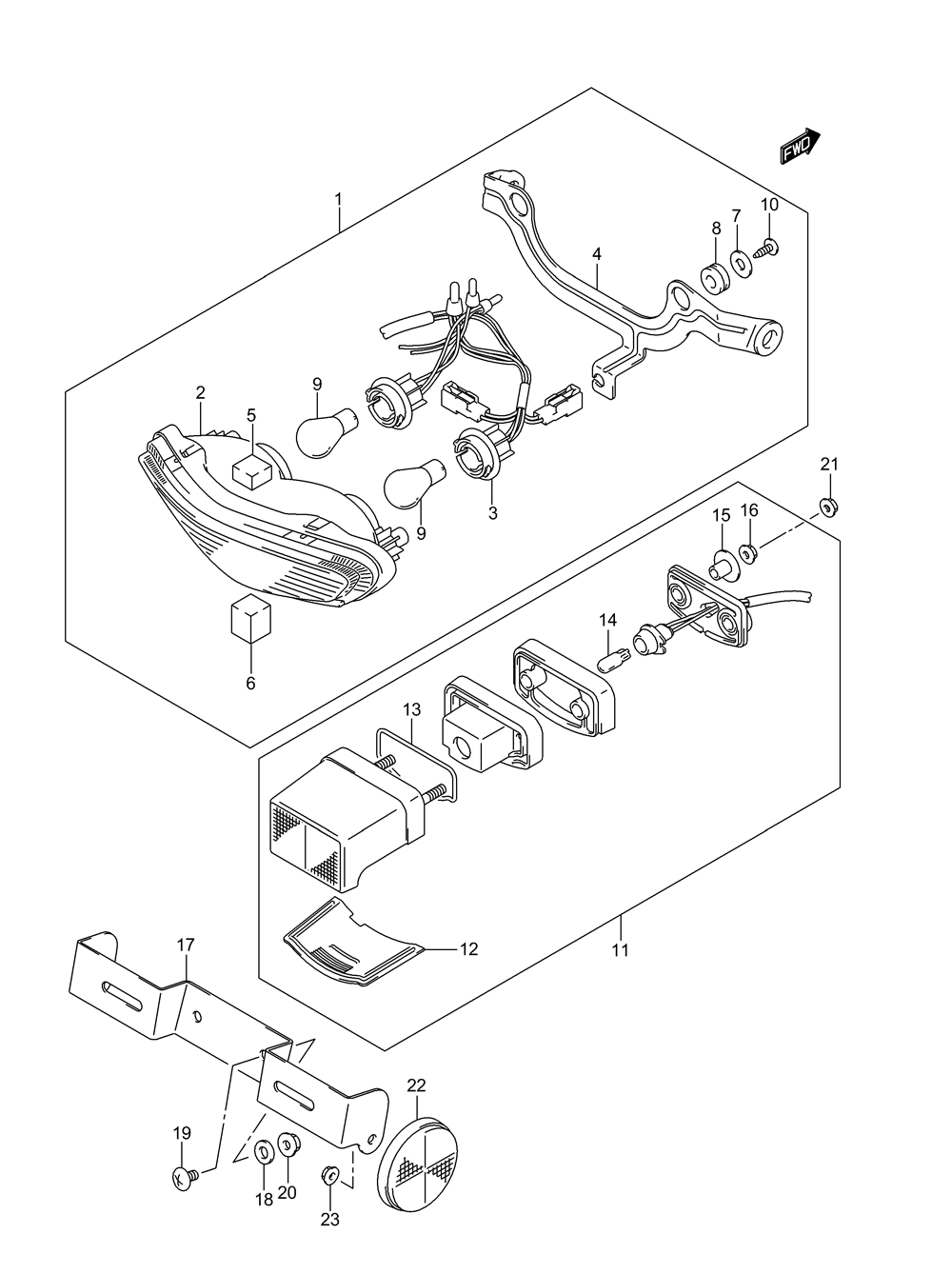

TAILLIGHT ASSY. для Suzuki DL1000 K6 - 2006 года выпуска
-
№АртикулНазвание
-
135710-06G60 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235720-06G30 UNITUNIT
-
335718-06G50 SOCKET AND CORDSOCKET AND CORD
-
435726-06G00 BRACKETBRACKET
-
535734-06G00 CUSHION, UPPER (20X20X12)CUSHION, UPPER (20X20X12)
-
635739-06G00 CUSHION, LOWER (20X20X25)CUSHION, LOWER (20X20X25)
-
709160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
809320-10049 CUSHIONCUSHION
-
909471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
1003242-05163 SCREWSCREW
-
1135910-06G31 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1235912-08F00 LENSLENS
-
1335913-08F00 GASKETGASKET
-
1409471-12216 BULB (12V,5W)BULB (12V,5W)
-
1535766-27G30 SPACERSPACER
-
1608316-20063 NUTNUT
-
1735927-06G00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1809160-06128 WASHER (6.5X15X1.60)WASHER (6.5X15X1.60)
-
1902142-06123 SCREWSCREW
-
2008316-10063 NUT, LICENSE PLATENUT, LICENSE PLATE
-
2108316-10063 NUT, LICENSE LAMPNUT, LICENSE LAMP
-
2235970-14A20 REFLEX REFLECTOR ASSY, REARREFLEX REFLECTOR ASSY, REAR
-
2308316-10053 NUTNUT
