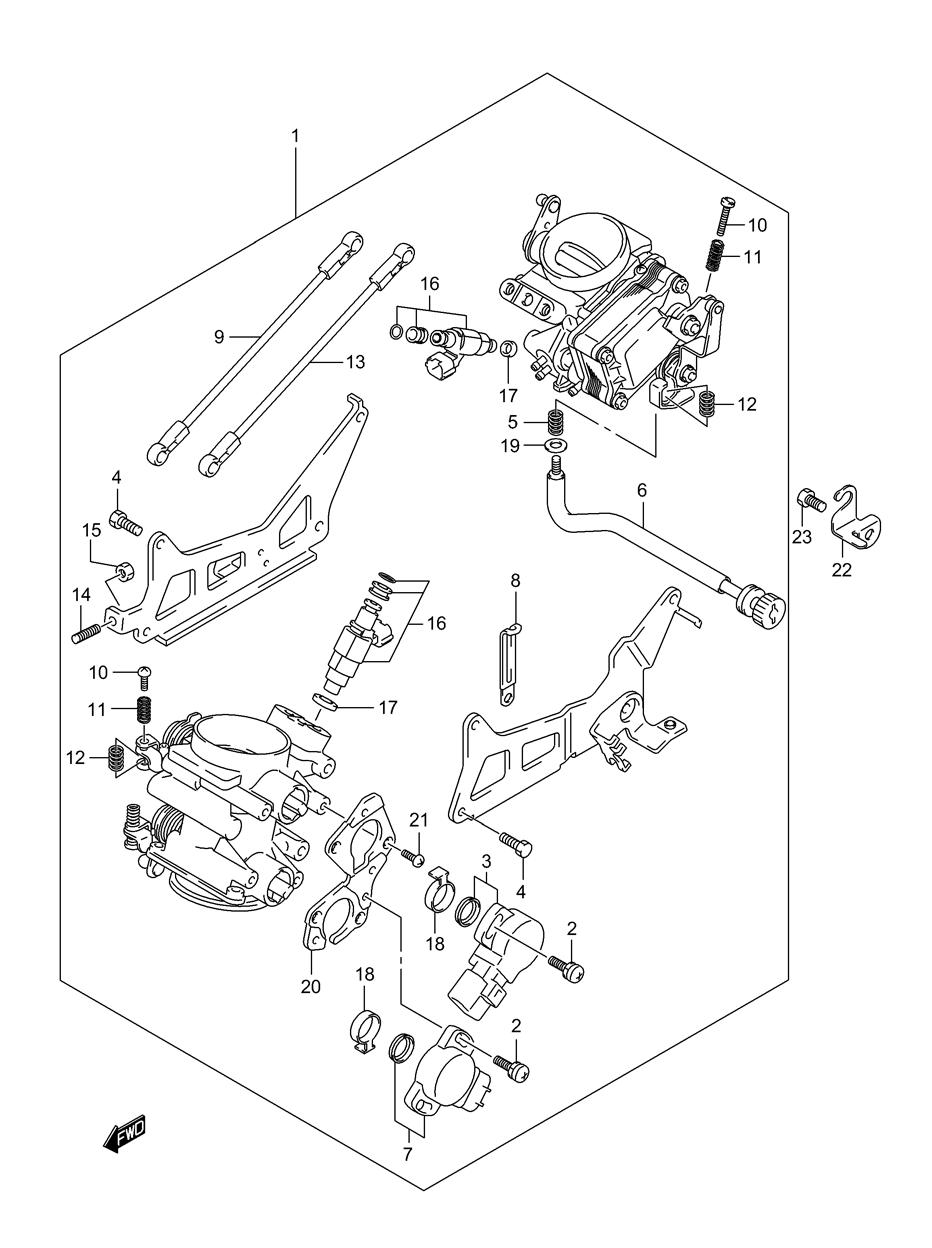

CARBURETOR - THROTTLE BODY для Suzuki DL1000 K6 - 2006 года выпуска`
-
№АртикулНазвание
-
113405-06G50 INJECTION ASSY (EXCEPT CALIF.)INJECTION ASSY (EXCEPT CALIF.)
-
113405-06G40 INJECTION ASSY (CALIF. ONLY)INJECTION ASSY (CALIF. ONLY)
-
213605-02F00 SCREWSCREW
-
313580-06G00 SENSOR ASSYSENSOR ASSY
-
413612-02F00 BOLTBOLT
-
513271-93011 SPRINGSPRING
-
613270-06G00 ADJUST SCREW ASSYADJUST SCREW ASSY
-
713580-02F00 SENSOR ASSYSENSOR ASSY
-
809404-06429 PLATEPLATE
-
913552-06G10 ROD ASSYROD ASSY
-
1013548-42F00 SCREWSCREW
-
1113271-44B00 SPRINGSPRING
-
1213268-89J00 SPRINGSPRING
-
1313552-06G00 ROD ASSYROD ASSY
-
1413605-06G00 ADJUST SCREWADJUST SCREW
-
1513607-47070 NUTNUT
-
1615710-06G00 INJECTOR ASSYINJECTOR ASSY
-
1713672-33E00 SEALSEAL
-
1813311-06G00 RINGRING
-
1913386-09410 PACKINGPACKING
-
2013627-06G00 PLATEPLATE
-
2102112-04107 SCREWSCREW
-
2213279-06G00 PLATE, IDLE ADJUSTPLATE, IDLE ADJUST
-
2301500-06123 BOLT, IDLE ADJUST PLATEBOLT, IDLE ADJUST PLATE
