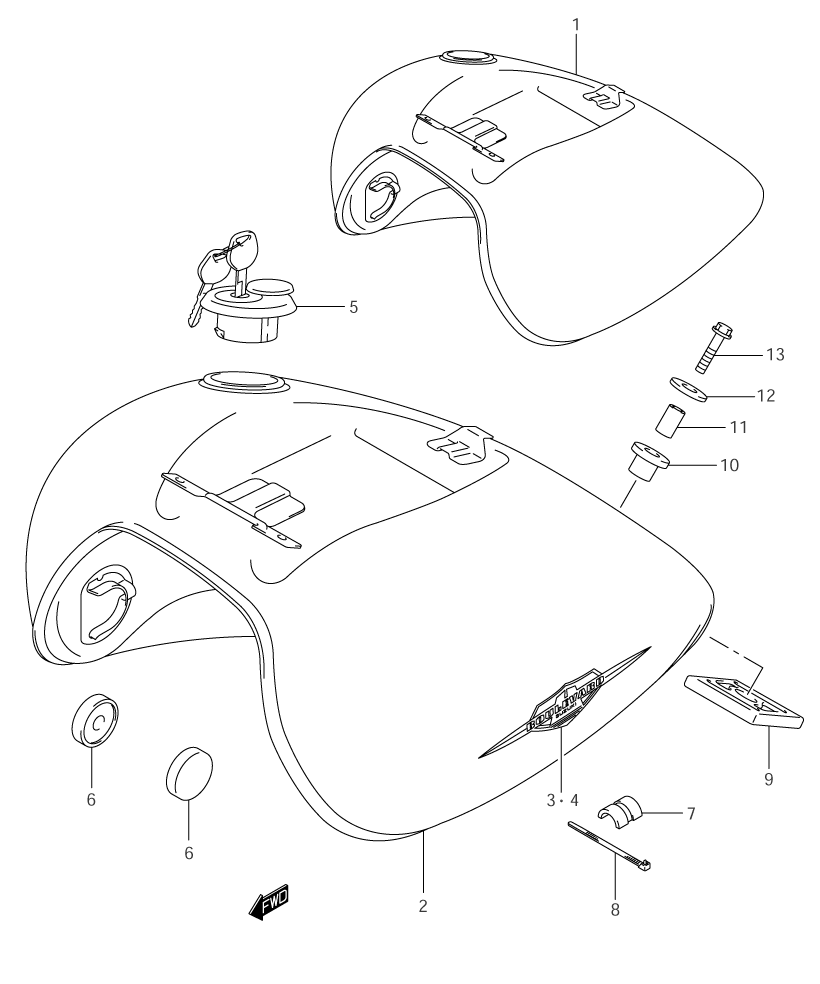

FUEL TANK для Suzuki VL800Z K5 - 2005 года выпуска
-
№АртикулНазвание
-
2-144100-41FP0-YU7 TANK ASSY, FUEL (YU7 - RED)TANK ASSY, FUEL (YU7 - RED)
-
2-244100-41FR0-YU7 TANK ASSY, FUEL (YU7 - RED)TANK ASSY, FUEL (YU7 - RED)
-
5-144200-41810 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
5-244200-41820 CAP SET, FUEL (CALIF. ONLY)CAP SET, FUEL (CALIF. ONLY)
-
609329-10007 CUSHION, (FRONT)CUSHION, (FRONT)
-
744541-14F10 CUSHION, (SIDE)CUSHION, (SIDE)
-
809407-25402 CLAMPCLAMP
-
944542-41F00 CUSHION, REAR (LOWER)CUSHION, REAR (LOWER)
-
1044541-41F00 CUSHION, REAR (UPPER)CUSHION, REAR (UPPER)
-
1109180-08057 SPACERSPACER
-
1209160-08140 WASHERWASHER
-
1301550-08353 BOLTBOLT
