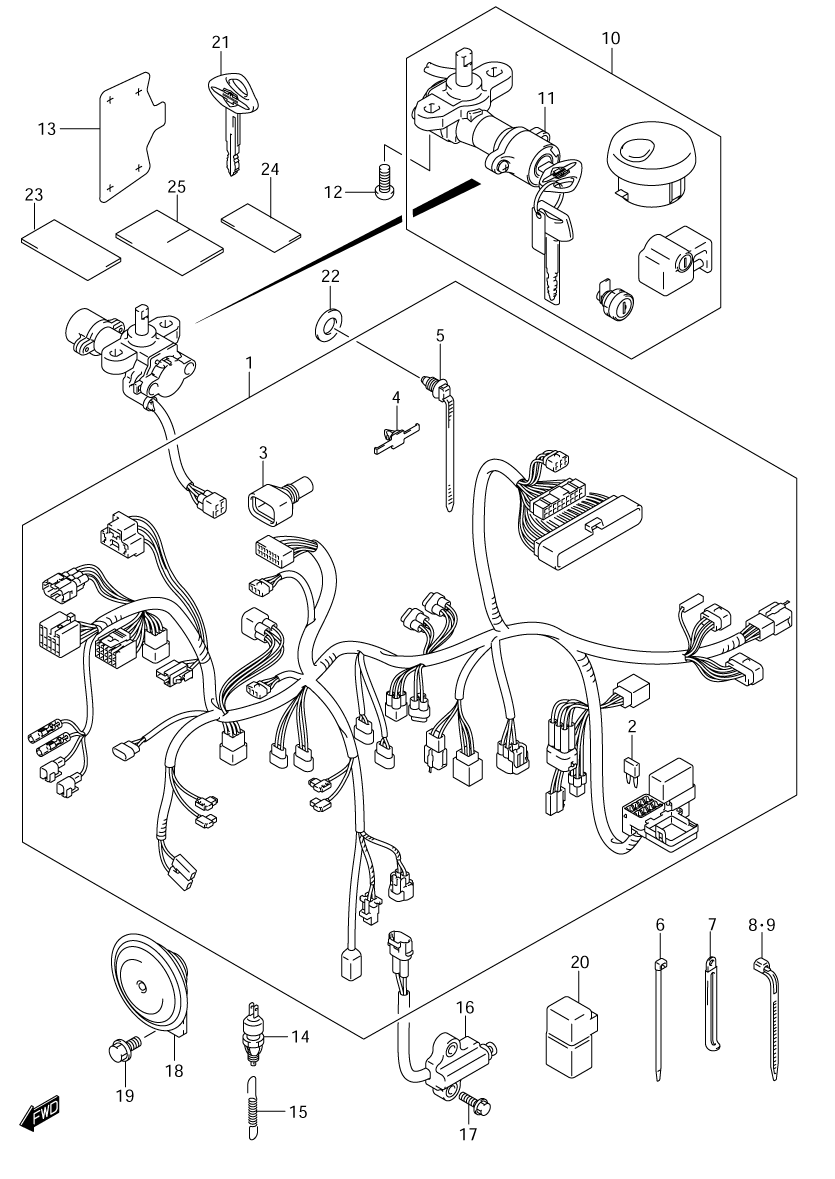

ELECTRICAL - WIRING HARNESS для Suzuki VL800Z K5 - 2005 года выпуска
-
№АртикулНазвание
-
136610-41FE0 HARNESS, WIRINGHARNESS, WIRING
-
2-109481-10501 ...FUSE (10A)...FUSE (10A)
-
2-209481-15501 ...FUSE (15A)...FUSE (15A)
-
336618-33E00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
409407-05410 ...CLAMP...CLAMP
-
509407-17403 ...CLAMP...CLAMP
-
609407-14407 CLAMP (L:145)CLAMP (L:145)
-
7-109404-06433 CLAMP (L:80)CLAMP (L:80)
-
7-209404-06435 CLAMP (L:135)CLAMP (L:135)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
909407-19401 CLAMP (L:190)CLAMP (L:190)
-
10-137101-41830 LOCK SET (EXCEPT CALIF.)LOCK SET (EXCEPT CALIF.)
-
10-237101-41840 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1137100-41FC0 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1209139-08016 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
1337187-41F10 PROTECTOR, IGNITION SWITCHPROTECTOR, IGNITION SWITCH
-
1437740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1509443-06073 SPRING, STOP LAMPSPRING, STOP LAMP
-
1637840-41F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1701550-06203 BOLTBOLT
-
1838500-41F10 HORN ASSYHORN ASSY
-
1901550-08123 BOLTBOLT
-
2038740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2137146-41FA0 KEY, BLANK "BOULEVARD" (OPT)KEY, BLANK "BOULEVARD" (OPT)
-
2209160-06079 WASHER, REAR CLAMPWASHER, REAR CLAMP
-
2336611-16G00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
2436920-08D10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2536920-33C00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
