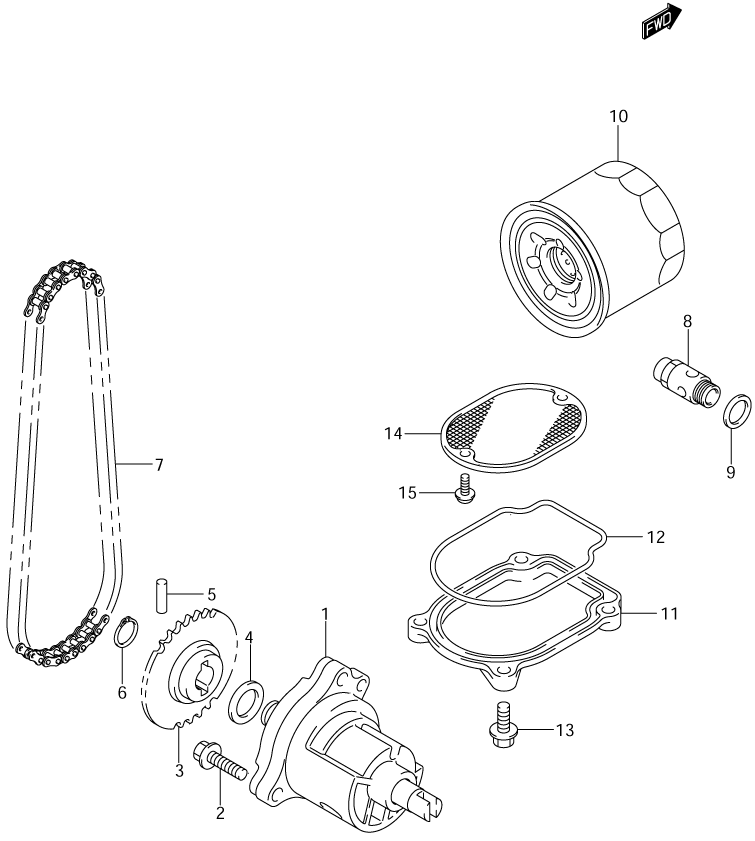

OIL PUMP для Suzuki VL800T K5 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    16400-38A01 PUMP ASSY., ENG OIL
    PUMP ASSY., ENG OIL
  • 2
    01550-06253 BOLT, OIL PUMP
    BOLT, OIL PUMP
  • 3
    16331-38A10 SPROCKET, OIL PUMP DRIVEN
    SPROCKET, OIL PUMP DRIVEN
  • 4
    09181-12158 WASHER, OIL PUMP DRIVEN
    WASHER, OIL PUMP DRIVEN
  • 5
    09261-05006 PIN, OIL PUMP DRIVEN SP
    PIN, OIL PUMP DRIVEN SP
  • 6
    08331-31126 CIRCLIP, OIL PUMP DRIVEN
    CIRCLIP, OIL PUMP DRIVEN
  • 7
    16310-38A00 CHAIN ASSY., OIL PUMP DR
    CHAIN ASSY., OIL PUMP DR
  • 8
    16440-17C20 VALVE ASSY., OIL RELIEF
    VALVE ASSY., OIL RELIEF
  • 9
    09168-16002 GASKET, OIL RELIEF VALVE
    GASKET, OIL RELIEF VALVE
  • 10
    16510-03G00-X07 FILTER ASSY., ENGINE OIL
    FILTER ASSY., ENGINE OIL
  • 11
    16523-38A00 CAP, OIL STRAINER
    CAP, OIL STRAINER
  • 12
    16528-38A00 O-RING, OIL STRAINER CA
    O-RING, OIL STRAINER CA
  • 13
    01550-06203 BOLT, OIL STRAINER CAP
    BOLT, OIL STRAINER CAP
  • 14
    16520-38A00 STRAINER, ENG OIL
    STRAINER, ENG OIL
  • 15
    02112-75123 SCREW, OIL STRAINER
    SCREW, OIL STRAINER
