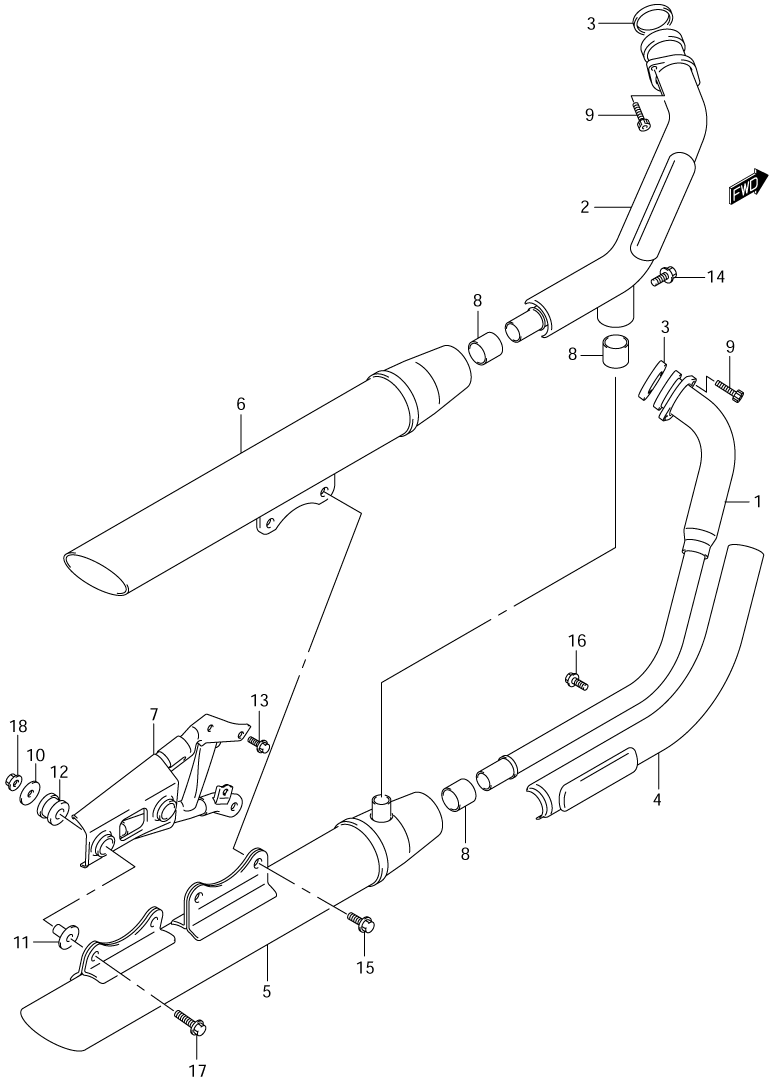

MUFFLER для Suzuki VL800T K5 - 2005 года выпуска
-
№АртикулНазвание
-
114150-41F01 PIPE, EXHAUST (RIGHT)PIPE, EXHAUST (RIGHT)
-
214160-41F01 PIPE, EXHAUST (LEFT)PIPE, EXHAUST (LEFT)
-
314181-10F00 GASKET, EXHAUSTGASKET, EXHAUST
-
414180-41F01 COVER, EXHAUST FRONTCOVER, EXHAUST FRONT
-
5-114310-41F12-H01 MUFFLER, FRONT (EXCEPT CALIF.)MUFFLER, FRONT (EXCEPT CALIF.)
-
5-214310-41F60-H01 MUFFLER, FRONT (CALIF. ONLY)MUFFLER, FRONT (CALIF. ONLY)
-
6-114340-41F12-H01 MUFFLER, REAR (EXCEPT CALIF.)MUFFLER, REAR (EXCEPT CALIF.)
-
6-214340-41F60-H01 MUFFLER, REAR (CALIF. ONLY)MUFFLER, REAR (CALIF. ONLY)
-
714410-41F01 BRACKET, MUFFLER SUPPORTBRACKET, MUFFLER SUPPORT
-
814771-29E00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
909106-08165 BOLT, EXHAUST PIPEBOLT, EXHAUST PIPE
-
1009160-08140 WASHERWASHER
-
1109180-08156 SPACERSPACER
-
1209320-12049 CUSHIONCUSHION
-
1301550-08163 BOLT, MUFFLER SUPPORT BRACKETBOLT, MUFFLER SUPPORT BRACKET
-
1401550-08353 BOLT, MUFFLER CONNECTORBOLT, MUFFLER CONNECTOR
-
1501550-08453 BOLT, MUFFLER SUPPORTBOLT, MUFFLER SUPPORT
-
1607120-06163 BOLT, EXHAUST COVERBOLT, EXHAUST COVER
-
1709106-08174 BOLT, MUFFLER JOINTBOLT, MUFFLER JOINT
-
1808361-25088 NUTNUT
