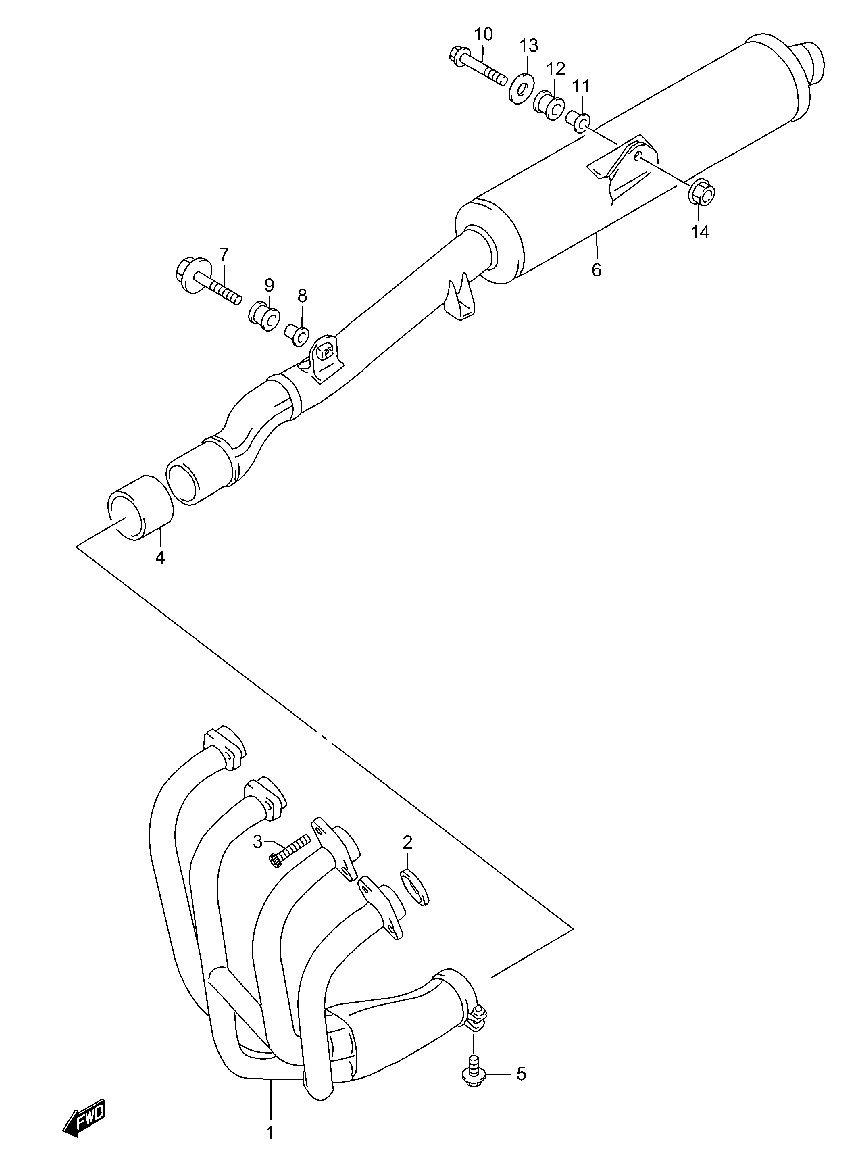

MUFFLER для Suzuki GSX600F K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    14100-19E20 EXHAUST
    EXHAUST
  • 2
    14181-18C00 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 3
    07130-08253 BOLT, EXHAUST PIPE (GREEN)
    BOLT, EXHAUST PIPE (GREEN)
  • 4
    14771-27E00 CONNECTOR, MUFFLER
    CONNECTOR, MUFFLER
  • 5
    01550-08403 BOLT, MUFFLER CONNECTOR
    BOLT, MUFFLER CONNECTOR
  • 6
    14305-19E30 MUFFLER (EXCEPT CALIF.)
    MUFFLER (EXCEPT CALIF.)
  • 6
    14305-19E20 MUFFLER (CALIF. ONLY)
    MUFFLER (CALIF. ONLY)
  • 7
    09118-08152 BOLT (8X45)
    BOLT (8X45)
  • 8
    09180-08152 SPACER, MUFFLER SPRT, FRONT (L:24.2)
    SPACER, MUFFLER SPRT, FRONT (L:24.2)
  • 9
    09320-12048 CUSHION, MUFFLER SPRT, FRONT
    CUSHION, MUFFLER SPRT, FRONT
  • 10
    09103-08358 BOLT, MUFFLER SPRT, REAR
    BOLT, MUFFLER SPRT, REAR
  • 11
    09180-08156 SPACER, MUFFLER SPRT, REAR (L:25.5)
    SPACER, MUFFLER SPRT, REAR (L:25.5)
  • 12
    09320-12049 CUSHION, MUFFLER SPRT, REAR
    CUSHION, MUFFLER SPRT, REAR
  • 13
    09160-08140 WASHER, MUFFLER SUPPORT, REAR
    WASHER, MUFFLER SUPPORT, REAR
  • 14
    08361-25088 NUT, MUFFLER SPRT, REAR
    NUT, MUFFLER SPRT, REAR
