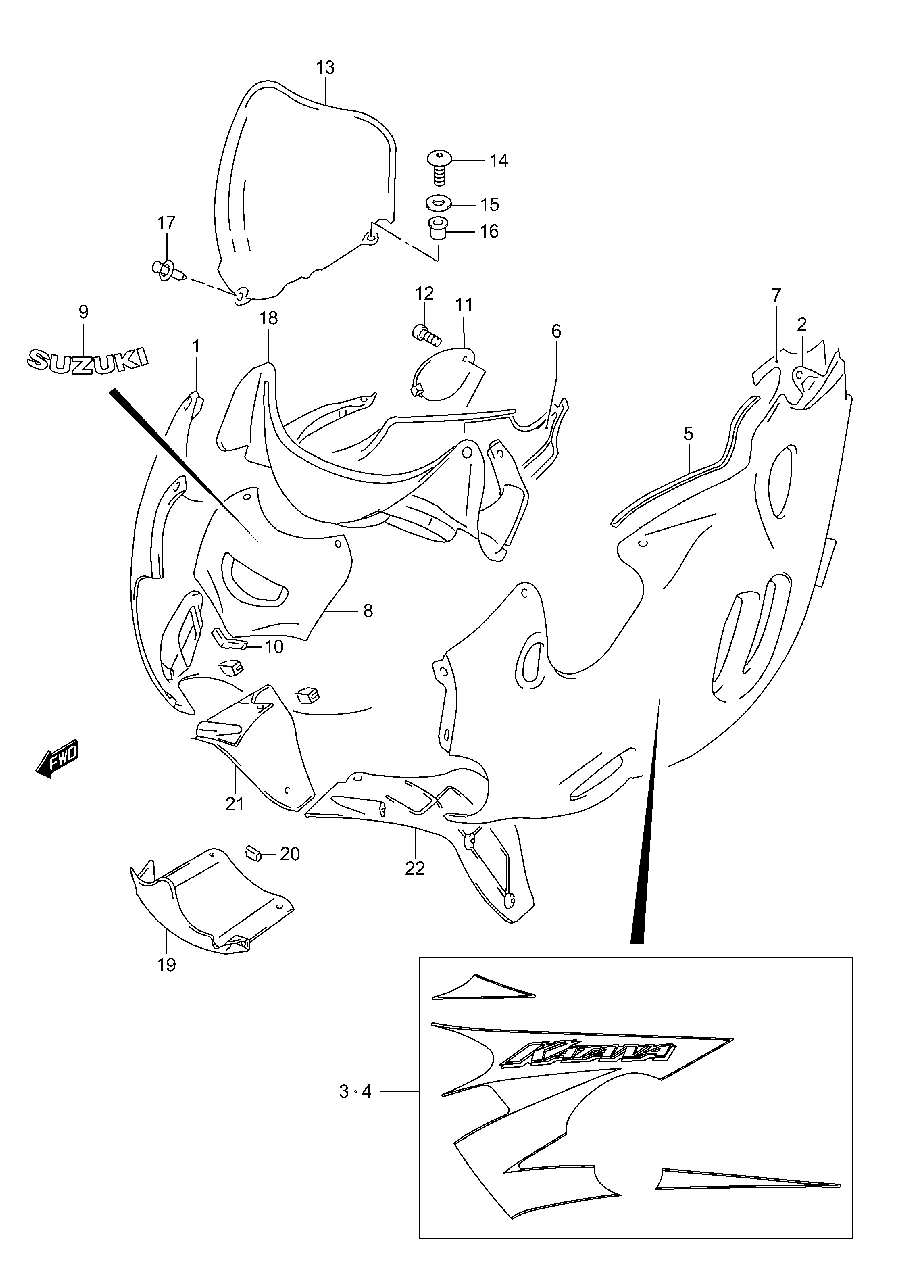

COWLING BODY для Suzuki GSX600F K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    94503-08F00-YU9 COWL ASSY, SIDE RIGHT HAND (YELLOW, YU9)
    COWL ASSY, SIDE RIGHT HAND (YELLOW, YU9)
  • 1
    94503-08F00-YC2 COWL ASSY, SIDE RIGHT HAND (BLUE, YC2)
    COWL ASSY, SIDE RIGHT HAND (BLUE, YC2)
  • 2
    94504-08F00-YU9 COWL ASSY, SIDE LEFT HAND (YELLOW, YU9) (EXCEPT CALIF)
    COWL ASSY, SIDE LEFT HAND (YELLOW, YU9) (EXCEPT CALIF)
  • 2
    94504-08F00-YC2 COWL ASSY, SIDE LEFT HAND (BLUE, YC2) (EXCEPT CALIF)
    COWL ASSY, SIDE LEFT HAND (BLUE, YC2) (EXCEPT CALIF)
  • 2
    94504-08F10-YU9 COWL ASSY, SIDE LEFT HAND (YELLOW, YU9) (CALF ONLY)
    COWL ASSY, SIDE LEFT HAND (YELLOW, YU9) (CALF ONLY)
  • 2
    94504-08F10-YC2 COWL ASSY, SIDE LEFT HAND (BLUE, YC2) (CALIF ONLY)
    COWL ASSY, SIDE LEFT HAND (BLUE, YC2) (CALIF ONLY)
  • 3
    68680-08F30-YGJ TAPE, LOWER RIGHT HAND (FOR YU9)
    TAPE, LOWER RIGHT HAND (FOR YU9)
  • 3
    68680-08F30-YGK TAPE, LOWER RIGHT HAND (FOR YC2)
    TAPE, LOWER RIGHT HAND (FOR YC2)
  • 4
    68690-08F30-YGJ TAPE, LOWER LEFT HAND (FOR YU9) (EXCEPT CALIF)
    TAPE, LOWER LEFT HAND (FOR YU9) (EXCEPT CALIF)
  • 4
    68690-08F30-YGK TAPE, LOWER LEFT HAND (FOR YC2) (EXCEPT CALIF)
    TAPE, LOWER LEFT HAND (FOR YC2) (EXCEPT CALIF)
  • 4
    68690-08F40-YGJ TAPE, LOWER LEFT HAND (FOR YU9) (CALIF ONLY)
    TAPE, LOWER LEFT HAND (FOR YU9) (CALIF ONLY)
  • 4
    68690-08F40-YGK TAPE, LOWER LEFT HAND (FOR YC2) (CALIF ONLY)
    TAPE, LOWER LEFT HAND (FOR YC2) (CALIF ONLY)
  • 5
    94631-44110 MOLDING
    MOLDING
  • 6
    94439-08F00 SHIELD, HEAT RIGHT HAND
    SHIELD, HEAT RIGHT HAND
  • 7
    94449-08F00 SHIELD, HEAT LEFT HAND
    SHIELD, HEAT LEFT HAND
  • 8
    94410-08F00-YU9 PANEL, CENTER UPPER (FOR YU9)
    PANEL, CENTER UPPER (FOR YU9)
  • 8
    94410-08F00-YEX PANEL, CENTER UPPER (FOR YC2)
    PANEL, CENTER UPPER (FOR YC2)
  • 9
    68185-05C10-019 TAPE, UPPER PANEL (BLACK/YELLOW FOR YU9)
    TAPE, UPPER PANEL (BLACK/YELLOW FOR YU9)
  • 9
    68185-05C10-YBD TAPE, UPPER PANEL (WHITE/BLUE FOR YC2)
    TAPE, UPPER PANEL (WHITE/BLUE FOR YC2)
  • 10
    94413-08F00 CUSHION
    CUSHION
  • 11
    94435-08F00-YU9 LID, OIL (YELLOW, FOR YU9)
    LID, OIL (YELLOW, FOR YU9)
  • 11
    94435-08F00-YC2 LID, OIL (BLUE, FOR YC2)
    LID, OIL (BLUE, FOR YC2)
  • 12
    09139-06030 SCREW
    SCREW
  • 13
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 14
    09139-05025 SCREW
    SCREW
  • 15
    08322-01053 WASHER
    WASHER
  • 16
    09159-05019 NUT
    NUT
  • 17
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 18
    94421-08F00 PANEL, METER
    PANEL, METER
  • 19
    94412-08F00-YU9 PANEL, CENTER LOWER (YELLOW FOR YU9)
    PANEL, CENTER LOWER (YELLOW FOR YU9)
  • 19
    94412-08F00-YC2 PANEL, CENTER LOWER (BLUE, FOR YC2)
    PANEL, CENTER LOWER (BLUE, FOR YC2)
  • 20
    94414-08F00 CUSHION
    CUSHION
  • 21
    94461-08F10 PANEL, INNER RIGHT HAND
    PANEL, INNER RIGHT HAND
  • 22
    94462-08F10 PANEL, INNER LEFT HAND
    PANEL, INNER LEFT HAND
