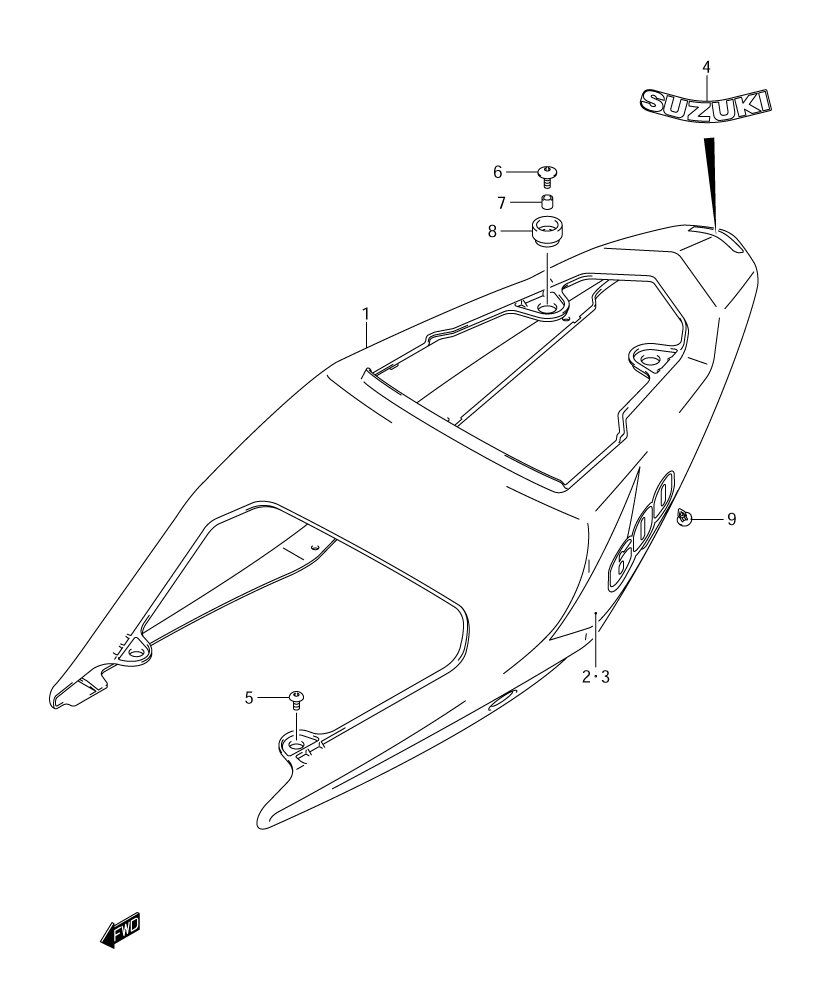

SIDE COVER для Suzuki GSX-R600 K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47100-29G00-YBD COVER, FRAME (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
    COVER, FRAME (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
  • 1-2
    47100-29G00-YEC COVER, FRAME (YEC - YELLOW)
    COVER, FRAME (YEC - YELLOW)
  • 1-3
    47100-29G00-019 COVER, FRAME (019 - BLACK)
    COVER, FRAME (019 - BLACK)
  • 2-1
    68135-29G00-AVG ...TAPE, (RIGHT) (AVG - BLACK/ORANGE/BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, (RIGHT) (AVG - BLACK/ORANGE/BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
  • 2-2
    68135-29G00-AVH ...TAPE, (RIGHT) (AVH - BLACK/ORANGE/YELLOW) (FOR YEC - YELLOW)
    ...TAPE, (RIGHT) (AVH - BLACK/ORANGE/YELLOW) (FOR YEC - YELLOW)
  • 2-3
    68135-29G00-ATK ...TAPE, (RIGHT) (ATK - ORANGE/BLACK/ORANGE/BLACK) (FOR 019 - BLACK)
    ...TAPE, (RIGHT) (ATK - ORANGE/BLACK/ORANGE/BLACK) (FOR 019 - BLACK)
  • 3-1
    68145-29G00-AVG ...TAPE, (LEFT) (AVG - BLACK/ORANGE/BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE, (LEFT) (AVG - BLACK/ORANGE/BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
  • 3-2
    68145-29G00-AVH ...TAPE, (LEFT) (AVH - BLACK/ORANGE/YELLOW) (FOR YEC - YELLOW)
    ...TAPE, (LEFT) (AVH - BLACK/ORANGE/YELLOW) (FOR YEC - YELLOW)
  • 3-3
    68145-29G00-ATK ...TAPE, (LEFT) (ATK - ORANGE/BLACK/ORANGE/BLACK) (FOR 019 - BLACK)
    ...TAPE, (LEFT) (ATK - ORANGE/BLACK/ORANGE/BLACK) (FOR 019 - BLACK)
  • 4-1
    68280-04F00-019 ...EMBLEM (019 - BLACK) (FOR LR5 - BLUE/WHITE, YEC - YELLOW)
    ...EMBLEM (019 - BLACK) (FOR LR5 - BLUE/WHITE, YEC - YELLOW)
  • 4-2
    68280-04F00-YD8 ...EMBLEM (YD8 - SILVER) (FOR 019 - BLACK)
    ...EMBLEM (YD8 - SILVER) (FOR 019 - BLACK)
  • 5
    09139-06131 SCREW, FRONT
    SCREW, FRONT
  • 6
    09139-06030 SCREW, (UPPER)
    SCREW, (UPPER)
  • 7
    09180-06286 SPACER
    SPACER
  • 8
    09320-10045 CUSHION, (UPPER)
    CUSHION, (UPPER)
  • 9
    09409-06314-5PK CLIP
    CLIP
