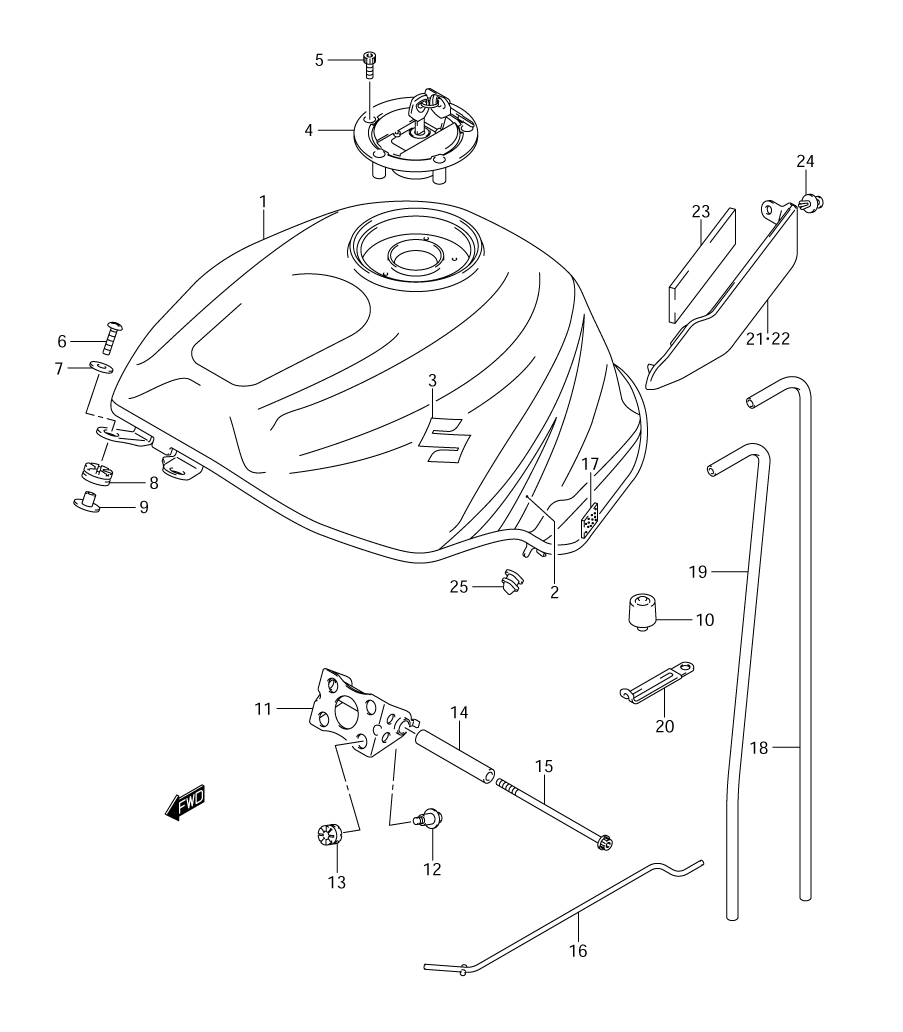

FUEL TANK для Suzuki GSX-R600 K4 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-29G00-YBA TANK, FUEL ASSY. (YBA - BLUE) (FOR LR5 - BLUE/WHITE) (EXCEPT CALIF.)
    TANK, FUEL ASSY. (YBA - BLUE) (FOR LR5 - BLUE/WHITE) (EXCEPT CALIF.)
  • 1-2
    44100-29G00-YEC TANK, FUEL ASSY. (YEC - YELLOW) (EXCEPT CALIF.)
    TANK, FUEL ASSY. (YEC - YELLOW) (EXCEPT CALIF.)
  • 1-3
    44100-29G00-019 TANK, FUEL ASSY. (019 - BLACK) (EXCEPT CALIF.)
    TANK, FUEL ASSY. (019 - BLACK) (EXCEPT CALIF.)
  • 1-4
    44100-29G20-YBA TANK, FUEL ASSY. (YBA - BLUE) (FOR LR5 - BLUE/WHITE) (CALIF. ONLY)
    TANK, FUEL ASSY. (YBA - BLUE) (FOR LR5 - BLUE/WHITE) (CALIF. ONLY)
  • 1-5
    44100-29G20-YEC TANK, FUEL ASSY. (YEC - YELLOW) (CALIF. ONLY)
    TANK, FUEL ASSY. (YEC - YELLOW) (CALIF. ONLY)
  • 1-6
    44100-29G20-019 TANK, FUEL ASSY. (019 - BLACK) (CALIF. ONLY)
    TANK, FUEL ASSY. (019 - BLACK) (CALIF. ONLY)
  • 2-1
    68110-29G00-LR5 ...TAPE SET (LR5 - BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
    ...TAPE SET (LR5 - BLUE/WHITE) (FOR LR5 - BLUE/WHITE)
  • 2-2
    68110-29G00-AGN ...TAPE SET (AGN - YELLOW/BLACK) (FOR YEC - YELLOW)
    ...TAPE SET (AGN - YELLOW/BLACK) (FOR YEC - YELLOW)
  • 2-3
    68110-29G00-ATJ ...TAPE SET (ATJ - ORANGE/BLACK/SILVER) (FOR 019- BLACK)
    ...TAPE SET (ATJ - ORANGE/BLACK/SILVER) (FOR 019- BLACK)
  • 3-1
    68111-18G00-ABF ...EMBLEM (ABF - SILVER/BLUE) (FOR LR5 - BLUE/WHITE)
    ...EMBLEM (ABF - SILVER/BLUE) (FOR LR5 - BLUE/WHITE)
  • 3-2
    68111-18G00-ATF ...EMBLEM (ATF - BLACK/YELLOW) (FOR YEC - YELLOW)
    ...EMBLEM (ATF - BLACK/YELLOW) (FOR YEC - YELLOW)
  • 3-3
    68111-18G00-E9Y ...EMBLEM (E9Y - SILVER/BLACK) (FOR 019- BLACK)
    ...EMBLEM (E9Y - SILVER/BLACK) (FOR 019- BLACK)
  • 4-1
    44200-16850 CAP SET, FUEL TANK (EXCEPT CALIF.)
    CAP SET, FUEL TANK (EXCEPT CALIF.)
  • 4-2
    44200-16860 CAP SET, FUEL TANK (CALIF. ONLY)
    CAP SET, FUEL TANK (CALIF. ONLY)
  • 5
    09106-05017 BOLT
    BOLT
  • 6
    09139-06029 SCREW, FRONT
    SCREW, FRONT
  • 7
    09160-06054 WASHER
    WASHER
  • 8
    44511-16G00 CUSHION, FRONT
    CUSHION, FRONT
  • 9
    44512-16G00 SPACER, FRONT
    SPACER, FRONT
  • 10
    44542-29G00 CUSHION, TANK SIDE
    CUSHION, TANK SIDE
  • 11
    44530-29G00 BRACKET, TANK
    BRACKET, TANK
  • 12
    09139-06132 SCREW, BRACKET
    SCREW, BRACKET
  • 13
    09320-08071 CUSHION
    CUSHION
  • 14
    44561-18G00 SPACER
    SPACER
  • 15
    09106-06103 BOLT
    BOLT
  • 16
    44574-35F00 STAY, FUEL TANK
    STAY, FUEL TANK
  • 17
    44572-13G00 FASTENER
    FASTENER
  • 18
    44423-16G01 HOSE, WATER DRAIN
    HOSE, WATER DRAIN
  • 19
    44424-18G00 HOSE, BREATHER
    HOSE, BREATHER
  • 20
    09404-06431 CLAMP
    CLAMP
  • 21
    44171-29G00-291 COVER, TANK (RIGHT) (291 - BLACK)
    COVER, TANK (RIGHT) (291 - BLACK)
  • 22
    44181-29G00-291 COVER, TANK (LEFT) (291 - BLACK)
    COVER, TANK (LEFT) (291 - BLACK)
  • 23
    44277-29G00 CUSHION
    CUSHION
  • 24
    09409-08314-6GS CLIP (6GS - GRAY)
    CLIP (6GS - GRAY)
  • 25
    44276-29G00 CUSHION
    CUSHION
