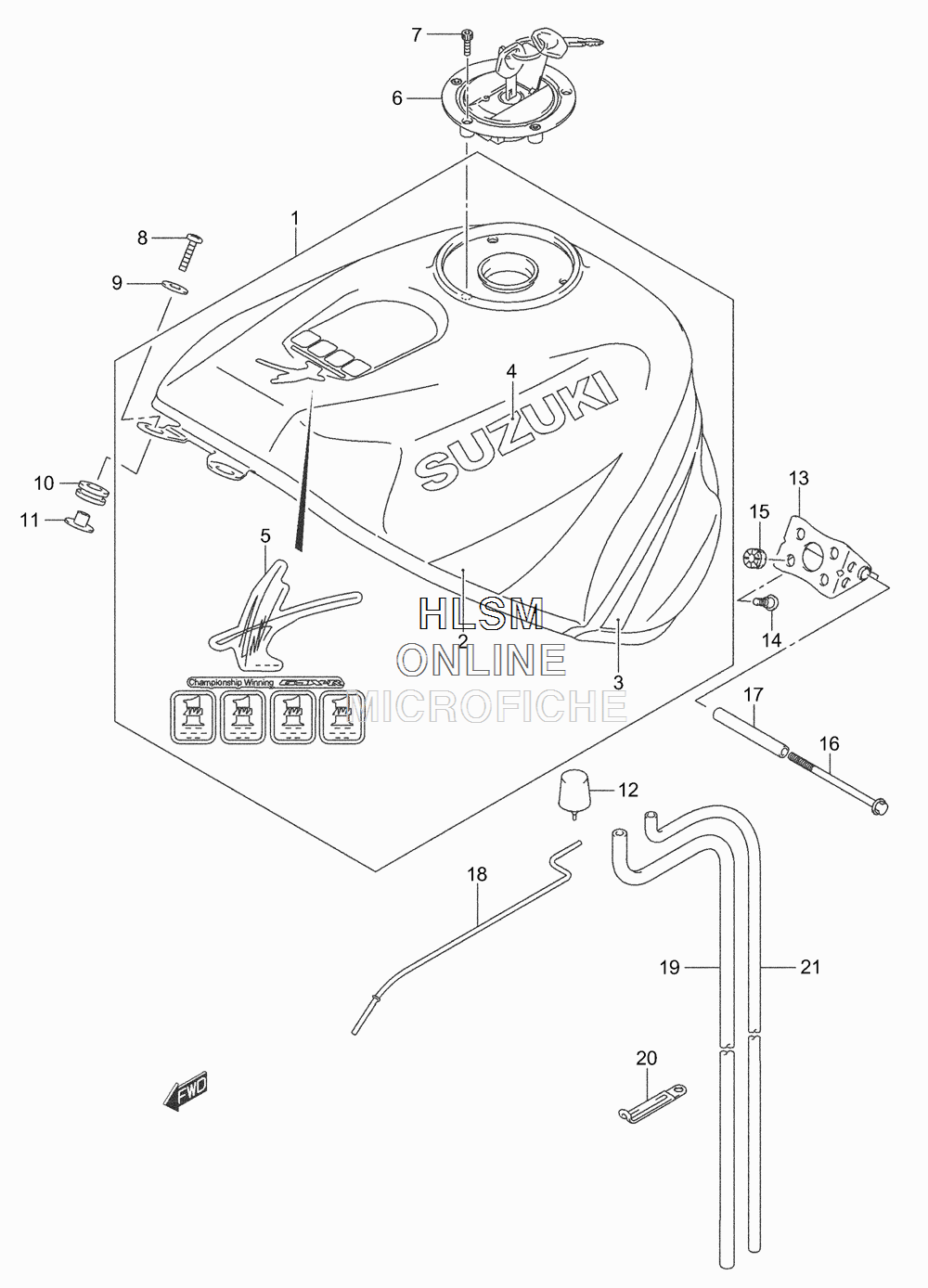

FUEL TANK (NOT FOR CANADA) для Suzuki GSX-R1000Z K4 - 2004 года выпуска`
-
№АртикулНазвание
-
144100-18GE0-LR5 TANK ASSY, FUEL (INCL. 2-5)TANK ASSY, FUEL (INCL. 2-5)
-
144100-18GF0-LR5 TANK ASSY, FUEL (INCL. 2-5) (CALIF ONLY)TANK ASSY, FUEL (INCL. 2-5) (CALIF ONLY)
-
268110-18G00-LS3 TAPE SET, UPPER (BLUE/WHITE)TAPE SET, UPPER (BLUE/WHITE)
-
368110-18G10-LS3 TAPE SET, LOWER (BLUE/WHITE)TAPE SET, LOWER (BLUE/WHITE)
-
468111-12C30-YBD EMBLEM (WHITE)EMBLEM (WHITE)
-
568111-18GA0-AZU EMBLEM, UPPEREMBLEM, UPPER
-
644200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
644200-16860 CAP SET, FUEL TANK (CALIF ONLY)CAP SET, FUEL TANK (CALIF ONLY)
-
709106-05017 BOLTBOLT
-
809139-06029 BOLT, FRONTBOLT, FRONT
-
909160-06054 WASHERWASHER
-
1044511-19F00 CUSHION, FRONTCUSHION, FRONT
-
1144512-19F00 SPACER, FRONTSPACER, FRONT
-
1244542-18G00 CUSHION, SIDE NO.2CUSHION, SIDE NO.2
-
1344530-18G00 BRACKET, REAR NO.1BRACKET, REAR NO.1
-
1409139-06132 SCREWSCREW
-
1509320-08071 CUSHIONCUSHION
-
1609106-06103 BOLT, JOINTBOLT, JOINT
-
1744561-18G00 SPACERSPACER
-
1844574-35F00 STAY, FUEL TANKSTAY, FUEL TANK
-
1944423-16G01 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2009404-06431 CLAMPCLAMP
-
2144424-18G00 HOSE, BREATHERHOSE, BREATHER
