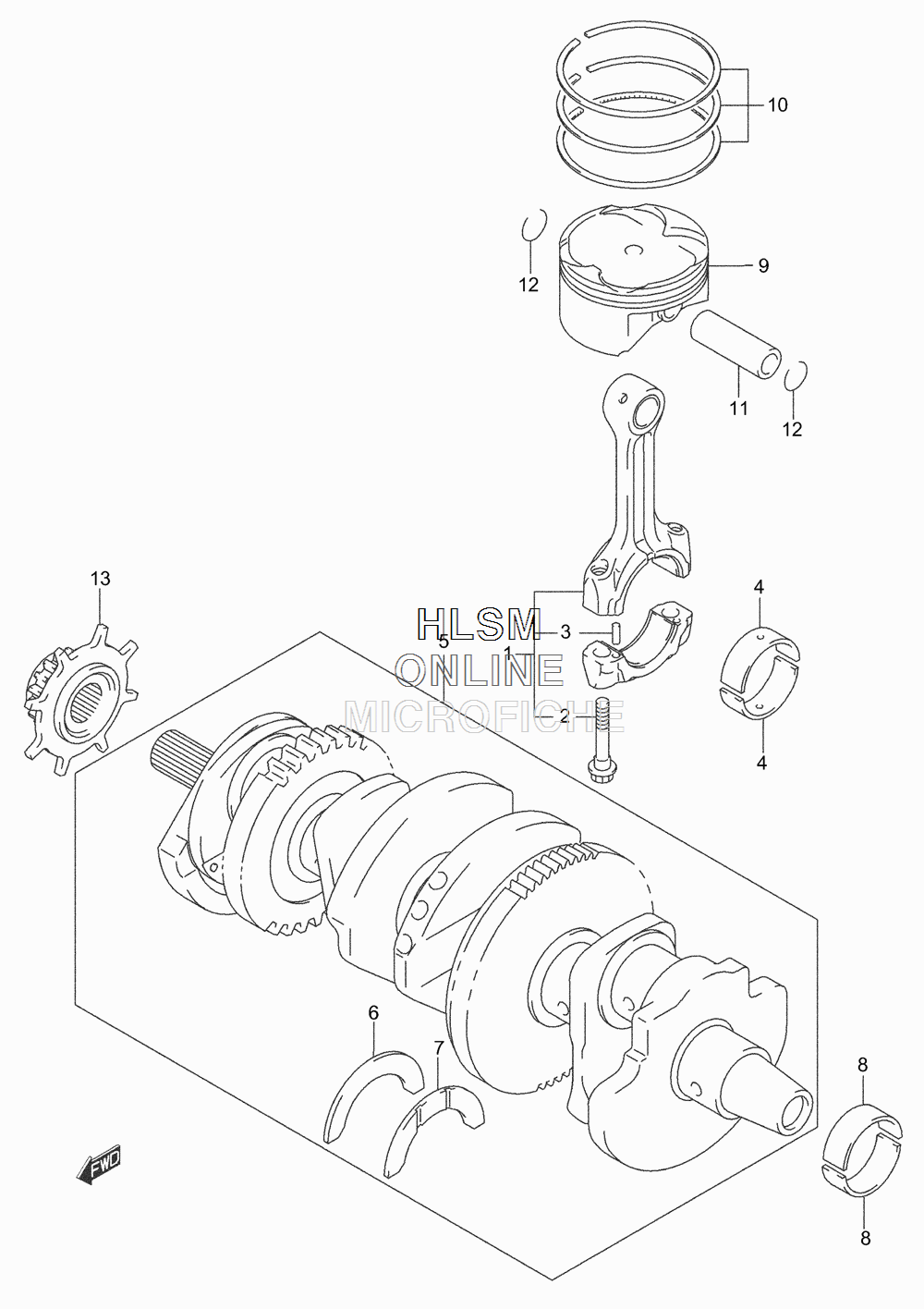

CRANKSHAFT W/ PISTON для Suzuki GSX-R1000Z K4 - 2004 года выпуска
-
№АртикулНазвание
-
112160-40F00 ROD ASSY, CONNECTING (INCL. 2-3)ROD ASSY, CONNECTING (INCL. 2-3)
-
212163-24F00 BOLTBOLT
-
312165-27A50 PIN, CONNRODPIN, CONNROD
-
412164-40F00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
412164-40F00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
412164-40F00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
412164-40F00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-40830 CRANKSHAFT SET (INCL. 6-7)CRANKSHAFT SET (INCL. 6-7)
-
612228-48B00-0E0 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
712228-48B00-0B0 BEARING, THRUST LEFT HAND (BROWN)BEARING, THRUST LEFT HAND (BROWN)
-
712228-48B00-0C0 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
712228-48B00-0D0 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
712228-48B00-0E0 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
712228-48B00-0F0 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
712228-48B00-0G0 BEARING, THRUST LEFT HAND (ORANGE)BEARING, THRUST LEFT HAND (ORANGE)
-
712228-48B00-0H0 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
812229-40F00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-40F00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-40F00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-40F00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
912111-40F00-0F0 PISTONPISTON
-
1012140-40F00 RING SET, PISTONRING SET, PISTON
-
1112151-40F00 PIN, PISTONPIN, PISTON
-
1209381-16001 CIRCLIPCIRCLIP
-
1312731-18G00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
