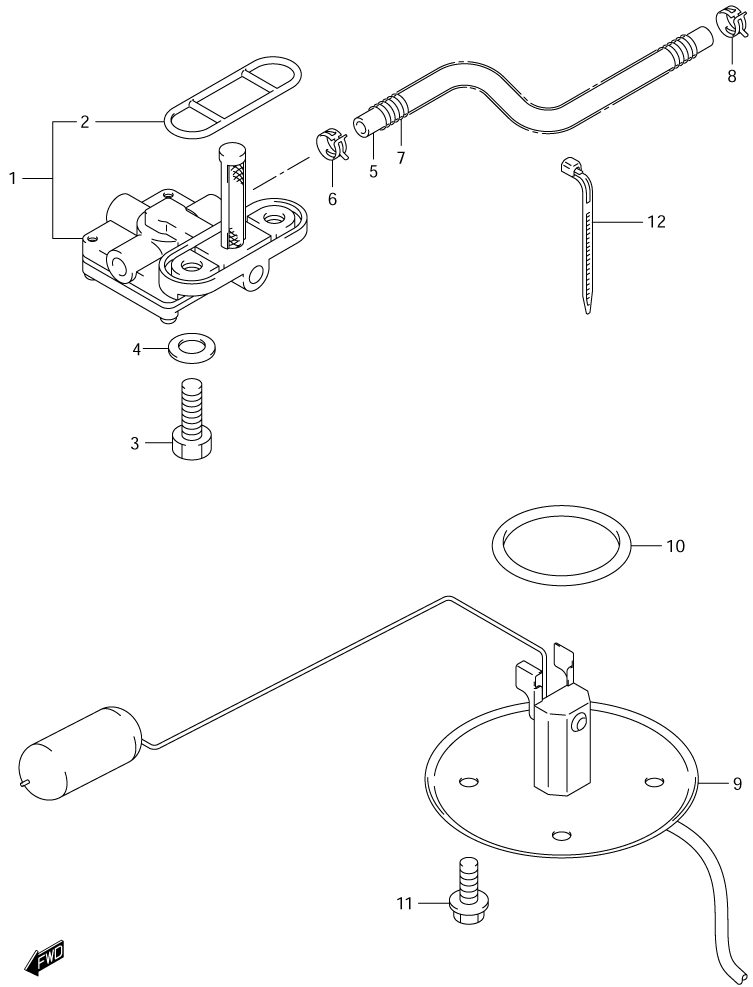

FUEL COCK ASSY. для Suzuki VL800Z K3 VOLUSIA LTD - 2003 года выпуска`
-
№АртикулНазвание
-
144300-41F00 COCK ASSY., FUELCOCK ASSY., FUEL
-
244351-33E00 ...O-RING...O-RING
-
309128-06086 BOLT, COCKBOLT, COCK
-
409168-06026 GASKETGASKET
-
509359-50101-600 HOSE, FUEL (L:600->460)HOSE, FUEL (L:600->460)
-
609401-11413 CLIPCLIP
-
709440-12037 SPRINGSPRING
-
809401-09403 CLIPCLIP
-
934810-41F00 GAUGE, FUEL LEVELGAUGE, FUEL LEVEL
-
1034825-31F00 O-RINGO-RING
-
1101550-06123 BOLTBOLT
-
1209404-06429 CLAMPCLAMP
