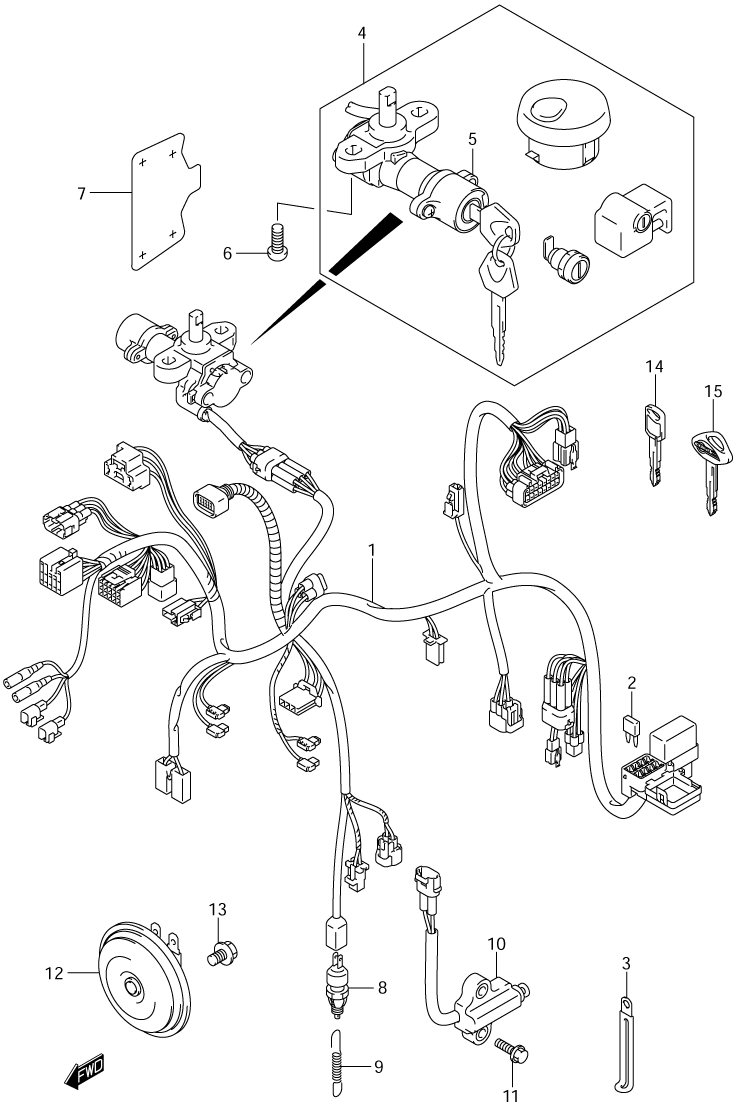

ELECTRICAL - WIRING HARNESS для Suzuki VL800Z K3 VOLUSIA LTD - 2003 года выпуска

№

Артикул

Название
1

36610-41F80 HARNESS, WIRING

HARNESS, WIRING
2-1

09481-10501 ...FUSE (10A)

...FUSE (10A)
2-2

09481-15501 ...FUSE (15A)

...FUSE (15A)
3

09404-06433 CLAMP (L:80)

CLAMP (L:80)
4-2

37000-41880 LOCK SET (EXCEPT CALIF.)

LOCK SET (EXCEPT CALIF.)
4-4

37000-41890 LOCK SET (CALIF. ONLY)

LOCK SET (CALIF. ONLY)
5-2

37100-41F30 ...LOCK ASSY., STEERING

...LOCK ASSY., STEERING
6

09139-08016 SCREW, STEERING LOCK

SCREW, STEERING LOCK
7

37187-41F00 PROTECTOR, IGNITION SWITCH

PROTECTOR, IGNITION SWITCH
8

37740-24A00 SWITCH ASSY., STOP LAMP

SWITCH ASSY., STOP LAMP
9

09443-06073 SPRING, STOP LAMP

SPRING, STOP LAMP
10

37840-41F00 SWITCH ASSY., SIDE STAND

SWITCH ASSY., SIDE STAND
11

01550-06203 BOLT

BOLT
12

38500-41F00 HORN ASSY.

HORN ASSY.
13

01550-08123 BOLT

BOLT
15

37146-41F30 KEY, BLANK (VOLUSIA) (OPT)

KEY, BLANK (VOLUSIA) (OPT)
