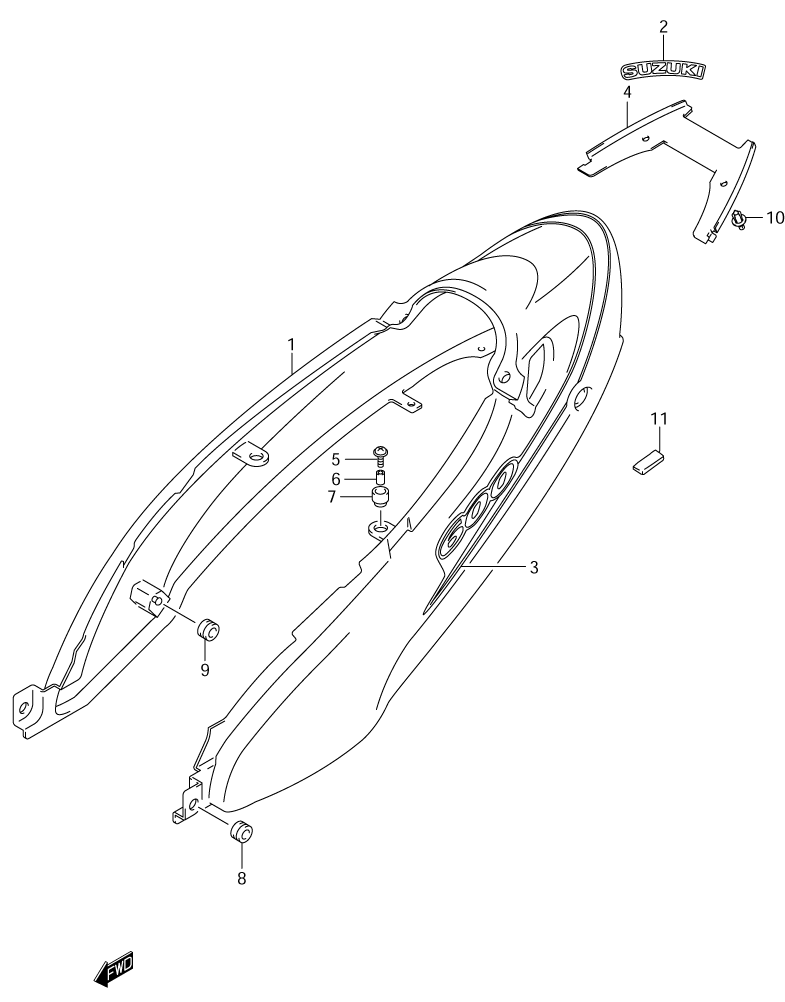

SIDE COVER для Suzuki GSX600F K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-08F70-33J COVER, FRAME (33J - BLACK) (FOR YC2 - BLUE)
    COVER, FRAME (33J - BLACK) (FOR YC2 - BLUE)
  • 1-2
    47110-08F70-1NX COVER, FRAME (1NX - BLACK) (YU9 - YELLOW)
    COVER, FRAME (1NX - BLACK) (YU9 - YELLOW)
  • 2-1
    68131-39F00-1ZY ...EMBLEM (1ZY - GRAY) (FOR 33J - BLACK)
    ...EMBLEM (1ZY - GRAY) (FOR 33J - BLACK)
  • 2-2
    68131-39F00-1ZZ ...EMBLEM (1ZZ - GRAY) (FOR 1NX - BLACK)
    ...EMBLEM (1ZZ - GRAY) (FOR 1NX - BLACK)
  • 3-1
    68135-08F70-LR3 ...TAPE, FRAME COVER (LR3 - BLACK/GRAY/BLUE) (FOR 33J - BLACK)
    ...TAPE, FRAME COVER (LR3 - BLACK/GRAY/BLUE) (FOR 33J - BLACK)
  • 3-2
    68135-08F70-LR4 ...TAPE, FRAME COVER (LR4 - BLACK/GRAY/YELLOW) (FOR 1NX - BLACK)
    ...TAPE, FRAME COVER (LR4 - BLACK/GRAY/YELLOW) (FOR 1NX - BLACK)
  • 4
    47321-08FA0 COVER, FRAME (LOWER)
    COVER, FRAME (LOWER)
  • 5
    09136-06105 SCREW (UPPER)
    SCREW (UPPER)
  • 6
    09180-06286 SPACER
    SPACER
  • 7
    09320-10045 CUSHION
    CUSHION
  • 8
    09320-08028 CUSHION (FRONT)
    CUSHION (FRONT)
  • 9
    09320-08018 CUSHION (CENTER)
    CUSHION (CENTER)
  • 10
    09409-08308-5ES CLIP (5ES - BLACK)
    CLIP (5ES - BLACK)
  • 11
    44894-24A00 CUSHION (REAR)
    CUSHION (REAR)
