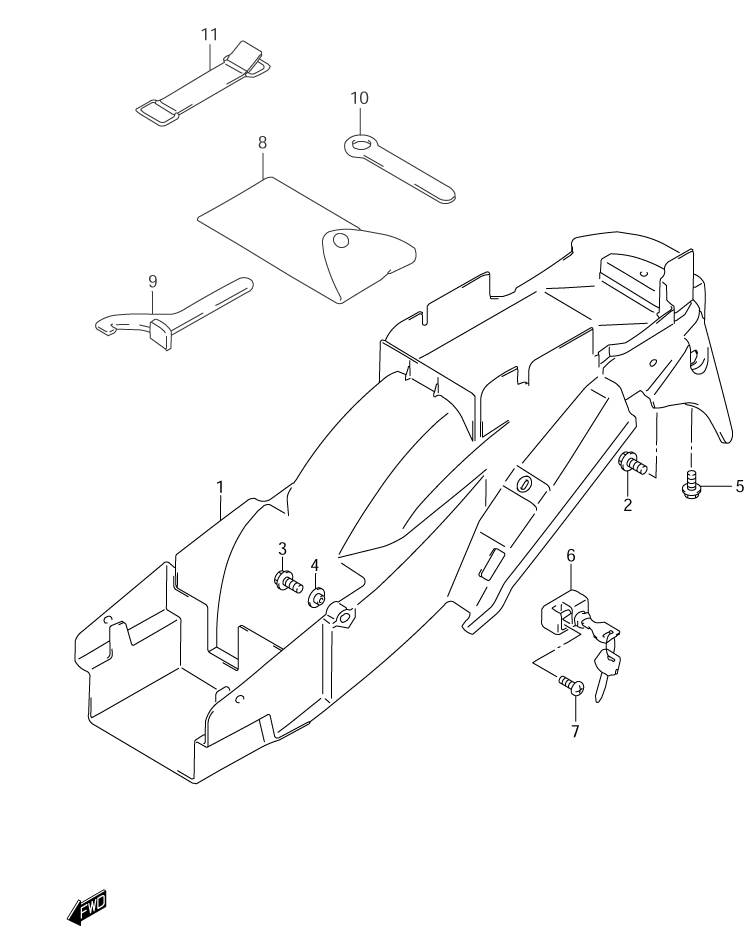

FENDER - REAR W/TOOLS для Suzuki GSX600F K3 - 2003 года выпуска
-
№АртикулНазвание
-
163111-08FB0-291 FENDER (REAR) (291 - BLACK)FENDER (REAR) (291 - BLACK)
-
209113-06001 BOLTBOLT
-
301550-06163 BOLT (FRONT) (LEFT)BOLT (FRONT) (LEFT)
-
409169-06071 WASHERWASHER
-
509116-06165 BOLT (CENTER)BOLT (CENTER)
-
695700-44820 LOCK SET, HELMETLOCK SET, HELMET
-
709139-06089 SCREWSCREW
-
809800-21036 TOOL ASSY.TOOL ASSY.
-
909822-00005 CLAMP, WRENCHCLAMP, WRENCH
-
1009816-00102 HEXAGON SPANNER, 3HEXAGON SPANNER, 3
-
1147435-02F01 BAND, TOOLBAND, TOOL
