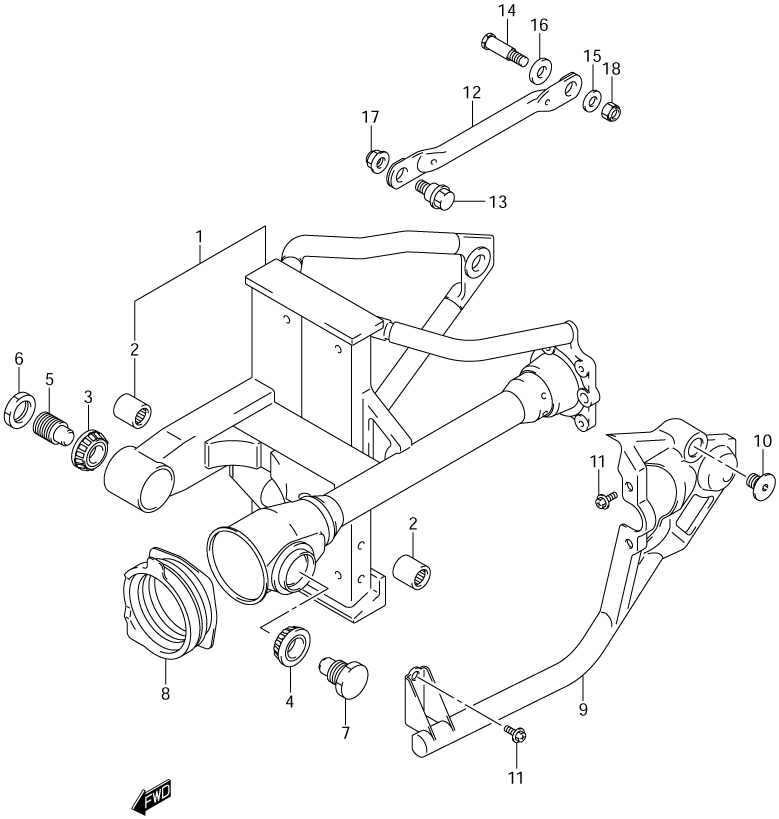

SUSPENSION - REAR SWING ARM для Suzuki VL800 K2 VOLUSIA - 2002 года выпуска
-
№АртикулНазвание
-
161101-41870-019 SWINGING ARM SET, REARSWINGING ARM SET, REAR
-
209263-17037 ...BEARING, ROD (17X24X25)...BEARING, ROD (17X24X25)
-
309265-17013 BEARING, PIVOT (RIGHT) (17X40X13.25,WITH PLATE)BEARING, PIVOT (RIGHT) (17X40X13.25,WITH PLATE)
-
409265-17012 BEARING, PIVOT (LEFT) (17X40X13.25)BEARING, PIVOT (LEFT) (17X40X13.25)
-
561213-24A00 BOLT, PIVOT (RIGHT)BOLT, PIVOT (RIGHT)
-
609140-24007 NUT, PIVOT (RIGHT)NUT, PIVOT (RIGHT)
-
761213-10F00 BOLT, PIVOT (LEFT)BOLT, PIVOT (LEFT)
-
861372-41F00 BOOT, SHAFTBOOT, SHAFT
-
961126-41F00 COVER, (RIGHT/REAR) SWGARM (LEFT)COVER, (RIGHT/REAR) SWGARM (LEFT)
-
1061127-41F00 BOLT, RR SWGARM COVER, (RIGHT/REAR)BOLT, RR SWGARM COVER, (RIGHT/REAR)
-
1109111-06058 BOLT, (RIGHT/REAR) SWGARM COVERBOLT, (RIGHT/REAR) SWGARM COVER
-
1264310-41F00 TORQUE LINK, REARTORQUE LINK, REAR
-
1309111-10062 BOLT, FRONTBOLT, FRONT
-
1409111-10057 BOLT, REARBOLT, REAR
-
1509160-10085 WASHER, REARWASHER, REAR
-
1609320-12501 CUSHION, REARCUSHION, REAR
-
1708319-31103 NUT, FRONTNUT, FRONT
-
1809159-10027 NUT, REARNUT, REAR
