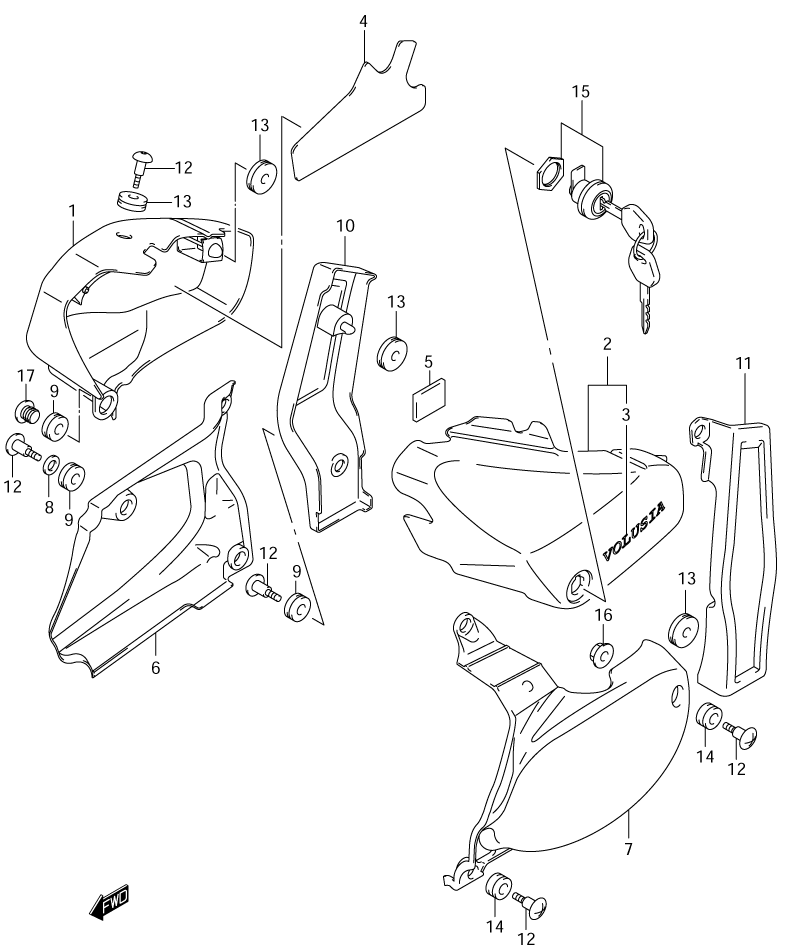

SIDE COVER для Suzuki VL800 K2 VOLUSIA - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-41F00-33J COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J - BLACK, FH9 - BLUE/BLACK) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J - BLACK, FH9 - BLUE/BLACK) (EXCEPT CALIF.)
  • 1-2
    47110-41F00-YM6 COVER, FRAME (RIGHT) (YM6 - SILVER) (FOR HE6 - SILVER/SILVER) (EXCEPT CALIF.)
    COVER, FRAME (RIGHT) (YM6 - SILVER) (FOR HE6 - SILVER/SILVER) (EXCEPT CALIF.)
  • 1-3
    47110-41F20-33J COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J - BLACK, FH9 - BLUE/BLACK) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (33J - BLACK) (FOR 33J - BLACK, FH9 - BLUE/BLACK) (CALIF. ONLY)
  • 1-4
    47110-41F20-YM6 COVER, FRAME (RIGHT) (YM6 - SILVER) (FOR HE6 - SILVER/SILVER) (CALIF. ONLY)
    COVER, FRAME (RIGHT) (YM6 - SILVER) (FOR HE6 - SILVER/SILVER) (CALIF. ONLY)
  • 2-1
    47210-41F00-33J COVER, FRAME (LEFT) (33J - BLACK) (FOR 33J - BLACK, FH9 - BLUE/BLACK)
    COVER, FRAME (LEFT) (33J - BLACK) (FOR 33J - BLACK, FH9 - BLUE/BLACK)
  • 2-2
    47210-41F00-YM6 COVER, FRAME (LEFT) (YM6 - SILVER) (FOR HE6 - SILVER/SILVER)
    COVER, FRAME (LEFT) (YM6 - SILVER) (FOR HE6 - SILVER/SILVER)
  • 3-1
    68131-41F00-FW8 ...EMBLEM (FW8 - SILVER/BLACK/GRAY) (FOR 33J - BLACK, FH9 - BLUE/BLACK)
    ...EMBLEM (FW8 - SILVER/BLACK/GRAY) (FOR 33J - BLACK, FH9 - BLUE/BLACK)
  • 3-2
    68131-41F00-HJ2 ...EMBLEM (HJ2 - BLACK/SILVER/GRAY/SILVER) (FOR HE6 - SILVER/SILVER)
    ...EMBLEM (HJ2 - BLACK/SILVER/GRAY/SILVER) (FOR HE6 - SILVER/SILVER)
  • 4
    47166-41F00 SHIELD, FRAME COVER (RIGHT)
    SHIELD, FRAME COVER (RIGHT)
  • 5
    93676-80020 CUSHION, (LEFT)
    CUSHION, (LEFT)
  • 6
    47130-41F00 COVER, SIDE LOWER (RIGHT)
    COVER, SIDE LOWER (RIGHT)
  • 7
    47231-41F00 COVER, SIDE LOWER (LEFT)
    COVER, SIDE LOWER (LEFT)
  • 8
    09160-10123 WASHER
    WASHER
  • 9
    09320-08021 CUSHION
    CUSHION
  • 10
    47141-41F00-019 COVER, SIDE REAR (RIGHT) (019 - BLACK)
    COVER, SIDE REAR (RIGHT) (019 - BLACK)
  • 11
    47241-41F00-019 COVER, SIDE REAR (LEFT) (019 - BLACK)
    COVER, SIDE REAR (LEFT) (019 - BLACK)
  • 12
    09139-06087 SCREW
    SCREW
  • 13
    09320-08018 CUSHION
    CUSHION
  • 14
    09320-09501 CUSHION
    CUSHION
  • 15
    95700-07860 LOCK SET, FUEL LID
    LOCK SET, FUEL LID
  • 16
    08316-10063 NUT, SIDE LOWER (LEFT)
    NUT, SIDE LOWER (LEFT)
  • 17
    09250-09001 PLUG
    PLUG
