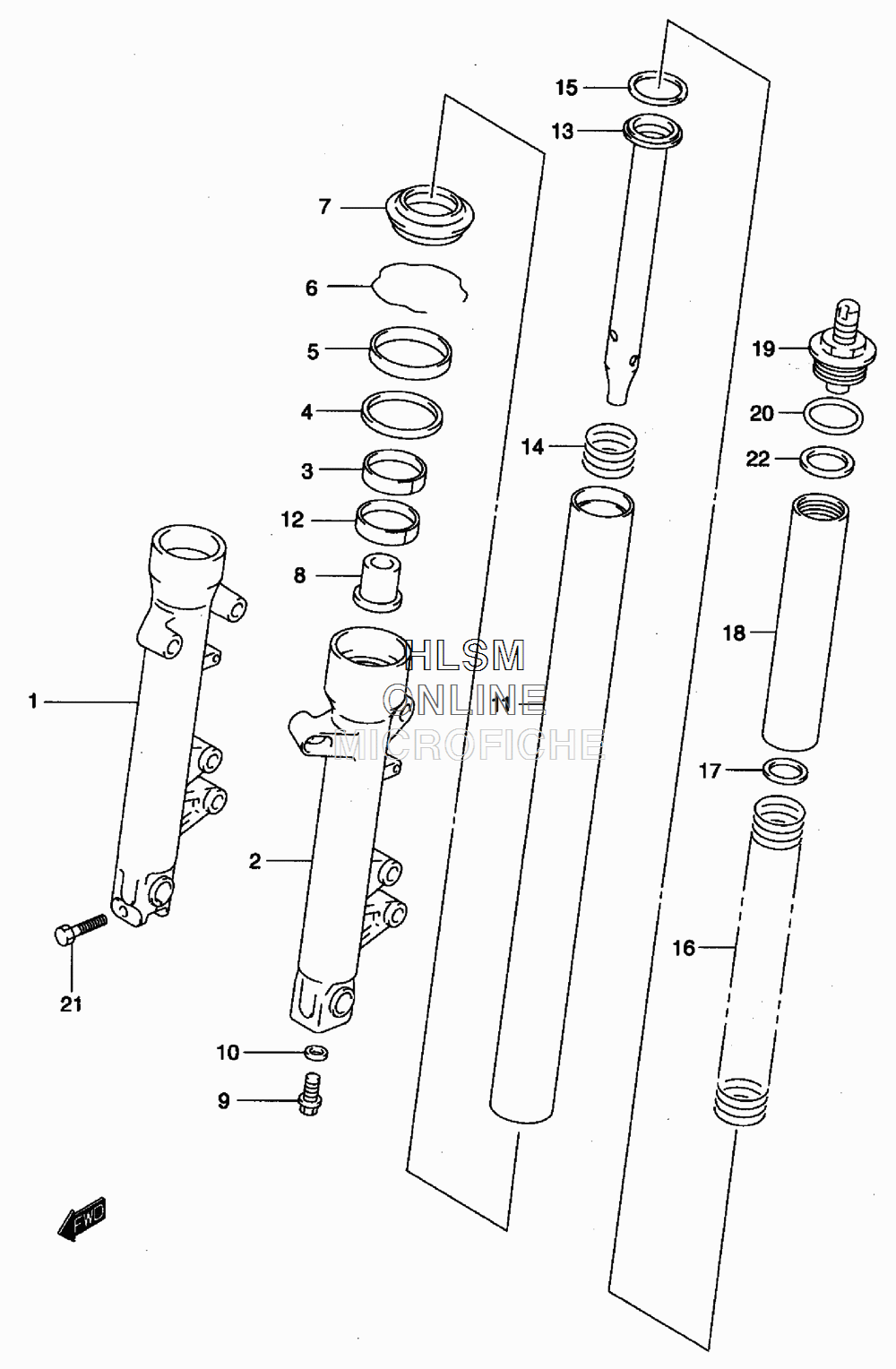

SUSPENSION - FRONT FORK для Suzuki SV650 K2 - 2002 года выпуска
-
№АртикулНазвание
-
51103-20FC0 DAMPER ASSY, FRONT FORK RIGHT HAND (ALL EXCEPT CAN.)DAMPER ASSY, FRONT FORK RIGHT HAND (ALL EXCEPT CAN.)
-
51104-20FC0 DAMPER ASSY, FRONT FORK LEFT HAND (ALL EXCEPT CAN.)DAMPER ASSY, FRONT FORK LEFT HAND (ALL EXCEPT CAN.)
-
151130-20FA0 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
251140-20FA0 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
351167-26E10 METAL, SLIDEMETAL, SLIDE
-
451158-05A00 WASHERWASHER
-
551153-14F00 SEAL, OILSEAL, OIL
-
651156-49440 CIRCLIPCIRCLIP
-
751173-14F00 SEAL, DUSTSEAL, DUST
-
851195-33D10 PIECE, OIL LOCKPIECE, OIL LOCK
-
951147-16510 BOLTBOLT
-
1051148-41310 WASHERWASHER
-
1151110-20F00 TUBE, INNERTUBE, INNER
-
1251121-33D10 PISTONPISTON
-
1351146-20F50 CYLINDER (ALL EXCEPT CAN.)CYLINDER (ALL EXCEPT CAN.)
-
1451177-06C00 SPRINGSPRING
-
1551196-31F00 RING, PISTONRING, PISTON
-
1651171-20FA0 SPRING, FRONTSPRING, FRONT
-
1751356-10D03 WASHERWASHER
-
1851176-20FC0 SPACER, SPRING (ALL EXCEPT CAN.)SPACER, SPRING (ALL EXCEPT CAN.)
-
1951351-10D80 CAPCAP
-
2009280-32001 O RINGO RING
-
2101550-08457 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
2251192-06C00 WASHER, UPPERWASHER, UPPER
