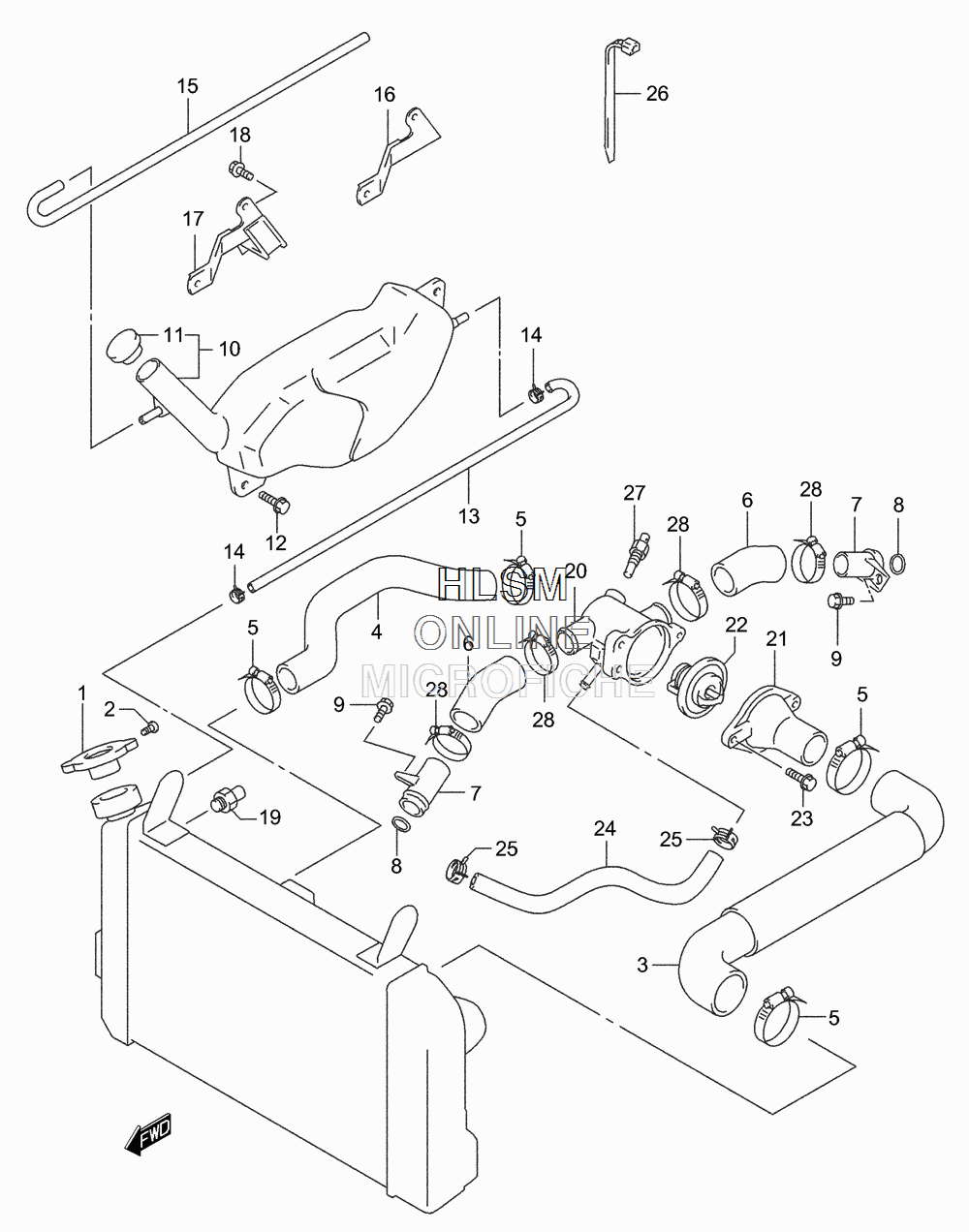

RADIATOR HOSE W/ RESERVOIR для Suzuki SV650 K2 - 2002 года выпуска
-
№АртикулНазвание
-
117730-19D11 CAP, RADIATOR 1.1CAP, RADIATOR 1.1
-
217733-03D10 SCREW, RADIATOR CAPSCREW, RADIATOR CAP
-
317851-19F00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
417852-19F00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
509402-38511 CLAMPCLAMP
-
617853-19F00 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
717890-02F00 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
809280-18009 O RINGO RING
-
907130-06123 BOLTBOLT
-
1017910-19F00 TANK ASSY, RESERVOIR (INC. 11)TANK ASSY, RESERVOIR (INC. 11)
-
1117932-12C00 CAP, RESERVOIR TANKCAP, RESERVOIR TANK
-
1201550-06163 BOLTBOLT
-
1317981-19F00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1409401-08411 CLIPCLIP
-
1509359-50901-980 HOSE, RESERVOIR TANK OVERFLOWHOSE, RESERVOIR TANK OVERFLOW
-
1617920-19F11 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1801550-06123 BOLTBOLT
-
1917680-24A20 SWITCH, RADIATOR FANSWITCH, RADIATOR FAN
-
2017662-19F02 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2117663-02FA0 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2217670-50F00 THERMOSTAT, WATER (82ЯC)THERMOSTAT, WATER (82ЯC)
-
2301550-06163 BOLTBOLT
-
2417856-19F00 HOSE, CONNECTOR TO WATER PUMPHOSE, CONNECTOR TO WATER PUMP
-
2509401-12409 CLAMPCLAMP
-
2609407-14403 CLAMP (L:140)CLAMP (L:140)
-
2734850-44D30 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2809402-28511 CLAMPCLAMP
