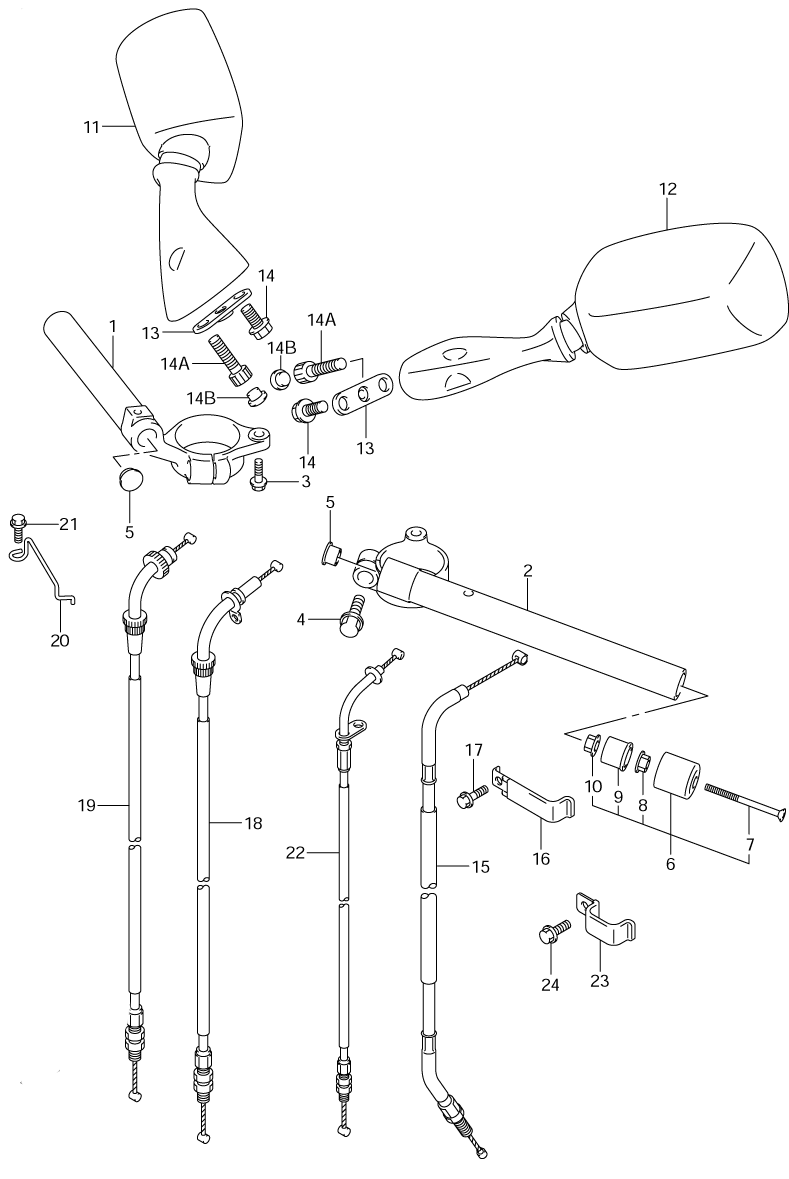

HANDLEBAR W/ CABLES - MIRRORS для Suzuki GSX-R600T K2 TELEFONICA - 2002 года выпуска`
-
№АртикулНазвание
-
156111-39F00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
256151-39F00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
301550-06203 BOLT, SETBOLT, SET
-
456123-35F00 BOLT, HANDLEBARBOLT, HANDLEBAR
-
509250-14006 CAPCAP
-
656200-35830 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
702122-06603 ...SCREW...SCREW
-
808316-10083 ...NUT...NUT
-
956272-44500 ...EXPANDER...EXPANDER
-
1009159-06024 ...NUT...NUT
-
1156500-40F10 MIRROR ASSY. REAR VIEW (RIGHT)MIRROR ASSY. REAR VIEW (RIGHT)
-
1256600-40F10 MIRROR ASSY. REAR VIEW (LEFT)MIRROR ASSY. REAR VIEW (LEFT)
-
1394576-24F00 CUSHIONCUSHION
-
14A07130-06303 BOLTBOLT
-
14B09250-05009 BOLTBOLT
-
1558200-35F10 CABLE ASSY., CLUTCHCABLE ASSY., CLUTCH
-
1636651-35F00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1701550-05123 BOLTBOLT
-
1858300-39F20 CABLE ASSY., THROTTLE NO.1CABLE ASSY., THROTTLE NO.1
-
1958300-39F30 CABLE ASSY., THROTTLE NO.2CABLE ASSY., THROTTLE NO.2
-
2058621-35F10 GUIDE, CABLEGUIDE, CABLE
-
2101550-06163 BOLTBOLT
-
2258410-39F00 CABLE, STARTERCABLE, STARTER
