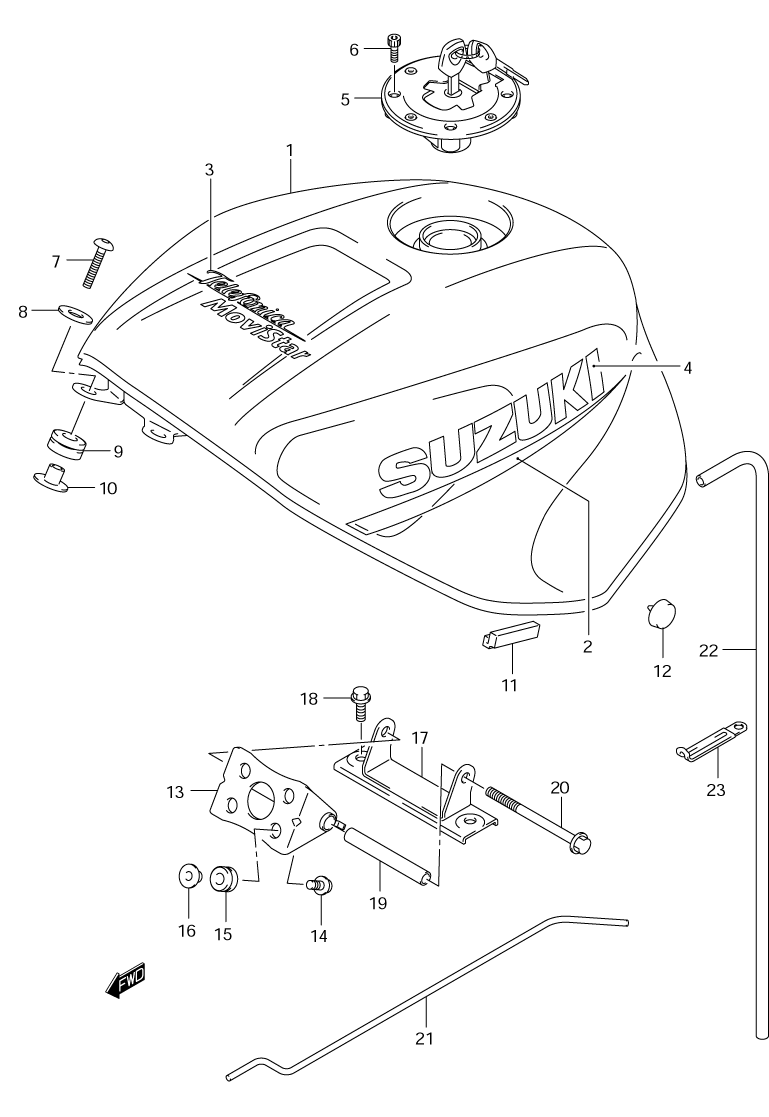

FUEL TANK для Suzuki GSX-R600T K2 TELEFONICA - 2002 года выпуска
-
№АртикулНазвание
-
1-144100-39FA0-YC2 TANK ASSY., FUEL (YC2 - BLUE) (EXCEPT CALIF.)TANK ASSY., FUEL (YC2 - BLUE) (EXCEPT CALIF.)
-
1-244100-39FB0-YC2 TANK ASSY., FUEL (YC2 - BLUE) (CALIF. ONLY)TANK ASSY., FUEL (YC2 - BLUE) (CALIF. ONLY)
-
268110-39F20-FT8 ...TAPE SET, FUEL TANK (FT8 - YELLOW/BLUE)...TAPE SET, FUEL TANK (FT8 - YELLOW/BLUE)
-
368111-39F00-FP1 ...EMBLEM "MOVISTAR" (FP1 - YELLOW/WHITE/BLUE)...EMBLEM "MOVISTAR" (FP1 - YELLOW/WHITE/BLUE)
-
468111-42E20-0JW ...EMBLEM (0JW - WHITE)...EMBLEM (0JW - WHITE)
-
5-144201-33820 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
5-244200-33890 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
609106-05017 BOLTBOLT
-
709139-06029 BOLT (FRONT)BOLT (FRONT)
-
809160-06054 WASHERWASHER
-
944511-19F00 CUSHION (FRONT)CUSHION (FRONT)
-
1044512-19F00 SPACER (FRONT)SPACER (FRONT)
-
1144541-35F00 CUSHION, SIDECUSHION, SIDE
-
1244542-35F00 CUSHION, SIDE (REAR)CUSHION, SIDE (REAR)
-
1344530-35F00 BRACKET (REAR/UPPER)BRACKET (REAR/UPPER)
-
1409116-06152 BOLTBOLT
-
1509320-08001 CUSHIONCUSHION
-
1609169-06062 SPACERSPACER
-
1744550-35F10 BRACKET (REAR/LOWER)BRACKET (REAR/LOWER)
-
1801550-08163 BOLT BRACKETBOLT BRACKET
-
1944561-35F00 SPACER JOINTSPACER JOINT
-
2001550-06953 BOLT, JOINTBOLT, JOINT
-
2144574-35F00 STAYSTAY
-
2244423-35F00 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2309404-06432 CLAMPCLAMP
