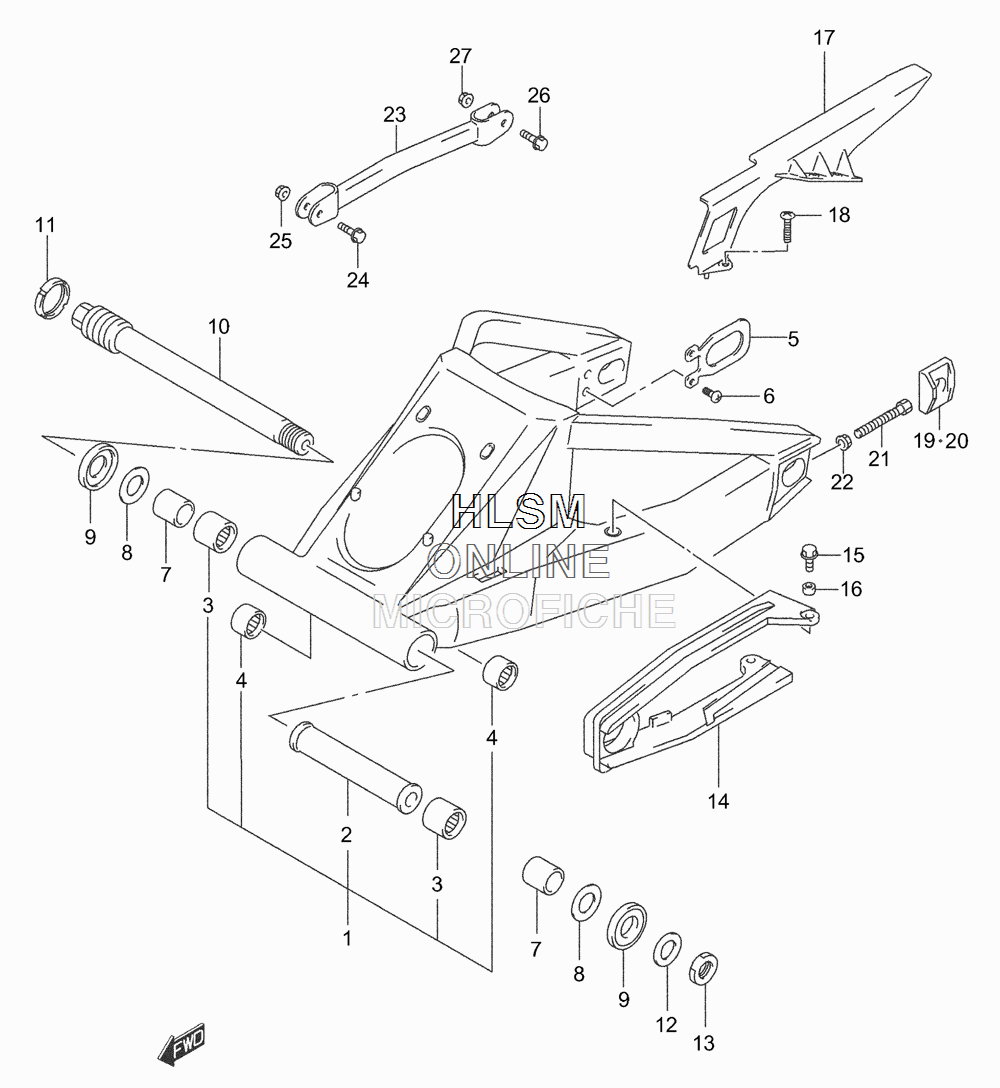

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-1300RZ K2 - 2002 года выпуска
-
№АртикулНазвание
-
161000-24F10 SWINGING ARM ASSY, REAR (INCL. 2-4)SWINGING ARM ASSY, REAR (INCL. 2-4)
-
261281-33E10 SPACER,RR SWGARSPACER,RR SWGAR
-
309263-30040 BEARING, PIVOT (30X40X25)BEARING, PIVOT (30X40X25)
-
409263-20071 BEARING, ROD (20X27X23.5)BEARING, ROD (20X27X23.5)
-
561124-33E00 PLATE, BRACKETPLATE, BRACKET
-
602142-06163 SCREWSCREW
-
761251-17E10 SPACER, BEARINGSPACER, BEARING
-
808211-25481 WASHERWASHER
-
961262-17E10 SEAL, DUSTSEAL, DUST
-
1061211-33E00 SHAFT, PIVOTSHAFT, PIVOT
-
1161214-40C31 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
1209160-25070 WASHERWASHER
-
1309159-25001 NUTNUT
-
1461273-24F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1509116-06152 BOLT (6X20)BOLT (6X20)
-
1609180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1761311-33E01 CASE, CHAINCASE, CHAIN
-
1809139-06083 SCREW (6X16)SCREW (6X16)
-
1961446-33E10 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
2061445-33E00 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
2109100-08287 BOLT (8X50)BOLT (8X50)
-
2208316-10083 NUTNUT
-
2364310-24F00 TORQUELINK, REARTORQUELINK, REAR
-
2409111-08085 BOLT, FRONT (8X35.5)BOLT, FRONT (8X35.5)
-
2508319-31087 NUTNUT
-
2609103-10019 BOLT, REAR (10X37)BOLT, REAR (10X37)
-
2708319-31107 NUTNUT
