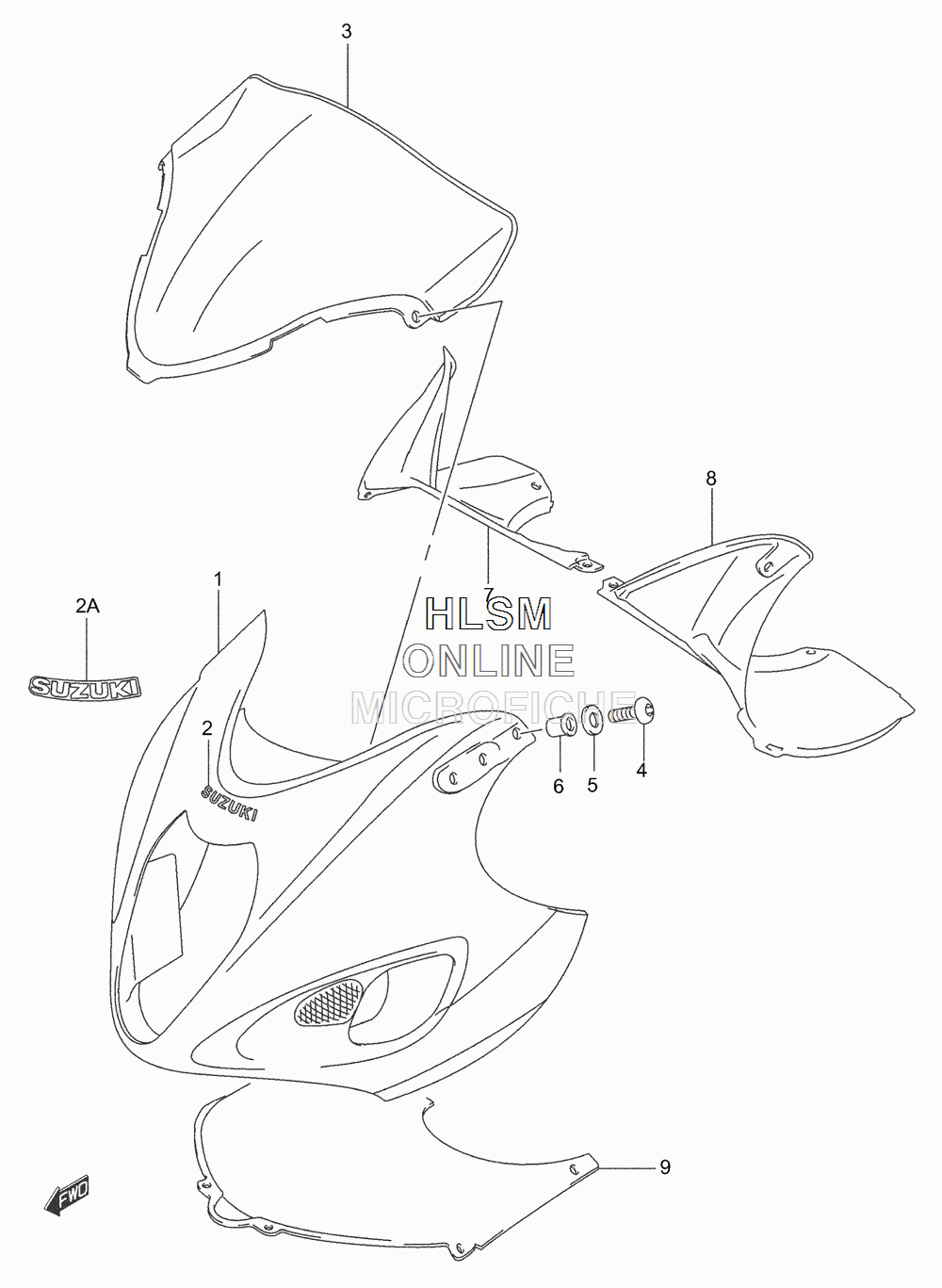

COWLING BODY для Suzuki GSX-1300RZ K2 - 2002 года выпуска
-
№АртикулНазвание
-
194401-24F40-019 COWLING ASSY, BODY (BLACK) (INCL. 2-2A)COWLING ASSY, BODY (BLACK) (INCL. 2-2A)
-
2A68641-24F00-JB5 EMBLEM (FOR 019)EMBLEM (FOR 019)
-
394611-24F00 WINDSCREENWINDSCREEN
-
409139-05025 SCREWSCREW
-
508322-01053 WASHERWASHER
-
609159-05019 NUTNUT
-
794641-24F00 PANEL, UPPER RIGHT HANDPANEL, UPPER RIGHT HAND
-
894651-24F00 PANEL, UPPER LEFT HANDPANEL, UPPER LEFT HAND
-
994419-24F00 COVER, BODY COWLCOVER, BODY COWL
