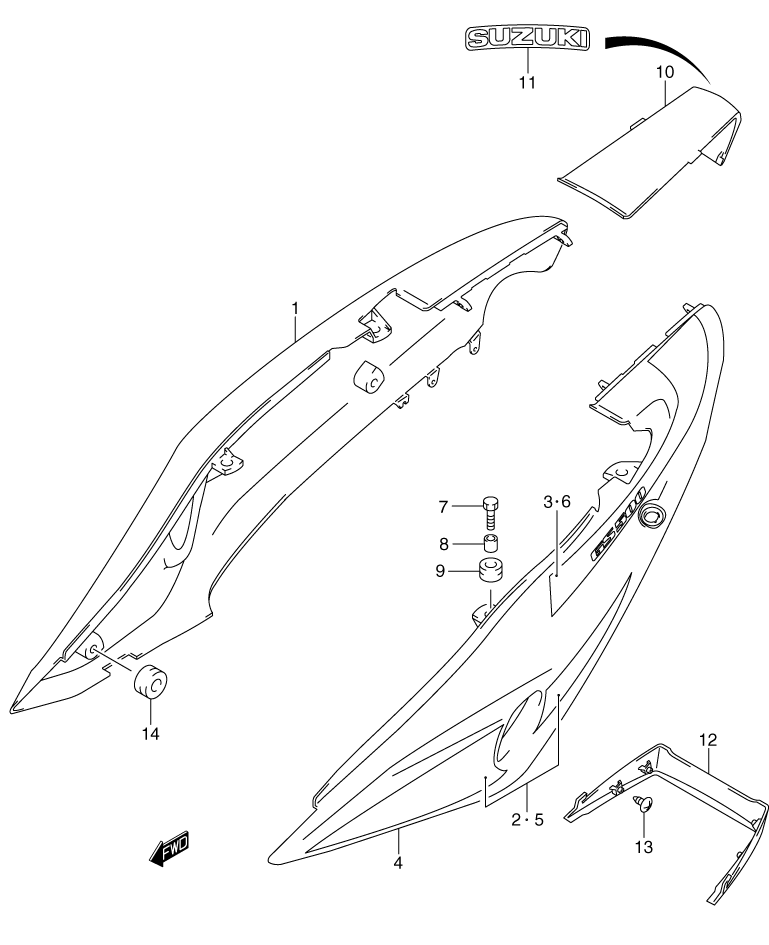

SIDE COVER для Suzuki GS500 K2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-01DK0-YD8 COVER, FRAME (RIGHT) (YD8 - SILVER) (FOR Y7L - BLACK)
    COVER, FRAME (RIGHT) (YD8 - SILVER) (FOR Y7L - BLACK)
  • 1-2
    47110-01DK0-YUX COVER, FRAME (RIGHT) (YUX - SILVER) (FOR YC2 - BLUE)
    COVER, FRAME (RIGHT) (YUX - SILVER) (FOR YC2 - BLUE)
  • 2-1
    68130-01D90-FP2 ...TAPE SET (RIGHT) (FP2 - SILVER/BLACK) (FOR Y7L - BLACK)
    ...TAPE SET (RIGHT) (FP2 - SILVER/BLACK) (FOR Y7L - BLACK)
  • 2-2
    68130-01D90-GZ8 ...TAPE SET (RIGHT) (GZ8 - BLUE/SILVER) (FOR YC2 - BLUE)
    ...TAPE SET (RIGHT) (GZ8 - BLUE/SILVER) (FOR YC2 - BLUE)
  • 3
    68135-01D40-HJ5 ...TAPE (RIGHT) (HJ5 - BLACK/GRAY/WHITE)
    ...TAPE (RIGHT) (HJ5 - BLACK/GRAY/WHITE)
  • 4-1
    47210-01DK0-YD8 COVER, FRAME (LEFT) (YD8 - SILVER) (FOR Y7L - BLACK)
    COVER, FRAME (LEFT) (YD8 - SILVER) (FOR Y7L - BLACK)
  • 4-2
    47210-01DKO-YUX COVER, FRAME (LEFT) (YUX - SILVER) (FOR YC2 - BLUE)
    COVER, FRAME (LEFT) (YUX - SILVER) (FOR YC2 - BLUE)
  • 5-1
    68140-01D90-FP2 ...TAPE SET (LEFT) (FP2 - SILVER/BLACK) (FOR Y7L - BLACK)
    ...TAPE SET (LEFT) (FP2 - SILVER/BLACK) (FOR Y7L - BLACK)
  • 5-2
    68140-01D90-GZ8 ...TAPE SET (LEFT) (GZ8 - BLUE/SILVER) (FOR YC2 - BLUE)
    ...TAPE SET (LEFT) (GZ8 - BLUE/SILVER) (FOR YC2 - BLUE)
  • 6
    68145-01D40-HJ5 ...TAPE (LEFT) (HJ5 - BLACK/GRAY/WHITE)
    ...TAPE (LEFT) (HJ5 - BLACK/GRAY/WHITE)
  • 7
    09116-06010 BOLT
    BOLT
  • 8
    09180-06263 SPACER
    SPACER
  • 9
    09320-09016 CUSHION
    CUSHION
  • 10
    47310-01D50-YD8 COVER (CENTER) (YD8 - SILVER)
    COVER (CENTER) (YD8 - SILVER)
  • 11
    68165-01D00-Y7L ...EMBLEM (Y7L - BLACK)
    ...EMBLEM (Y7L - BLACK)
  • 12
    47321-01DA0 COVER, FRAME (LOWER)
    COVER, FRAME (LOWER)
  • 13
    03541-04103 SCREW
    SCREW
  • 14
    09320-08018 CUSHION
    CUSHION
