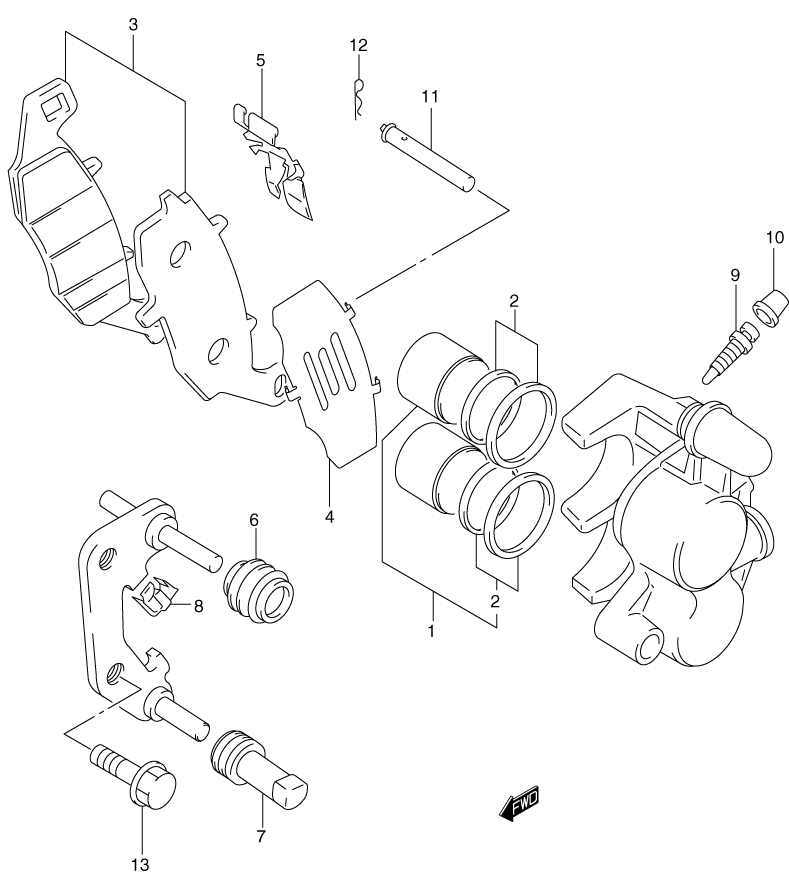

BRAKE - FRONT CALIPER для Suzuki GS500 K2 - 2002 года выпуска`
-
№АртикулНазвание
-
1A59100-33D90 CALIPER ASSY. (FRONT/RIGHT)CALIPER ASSY. (FRONT/RIGHT)
-
159300-33830 ...PISTON SET...PISTON SET
-
259300-35820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
359102-33810 ...PAD SET...PAD SET
-
459171-33D00 ...SHIM, PAD...SHIM, PAD
-
559115-33D00 ...SPRING...SPRING
-
659112-44B00 ...BOOT...BOOT
-
759313-36500 ...INSULATOR...INSULATOR
-
859116-33D00 ...GUIDE...GUIDE
-
959121-18410 ...BLEEDER...BLEEDER
-
1055156-66310 ...CAP...CAP
-
1159141-44B01 ...PIN...PIN
-
1269142-45000 ...CLIP...CLIP
-
1301550-10253 BOLTBOLT
