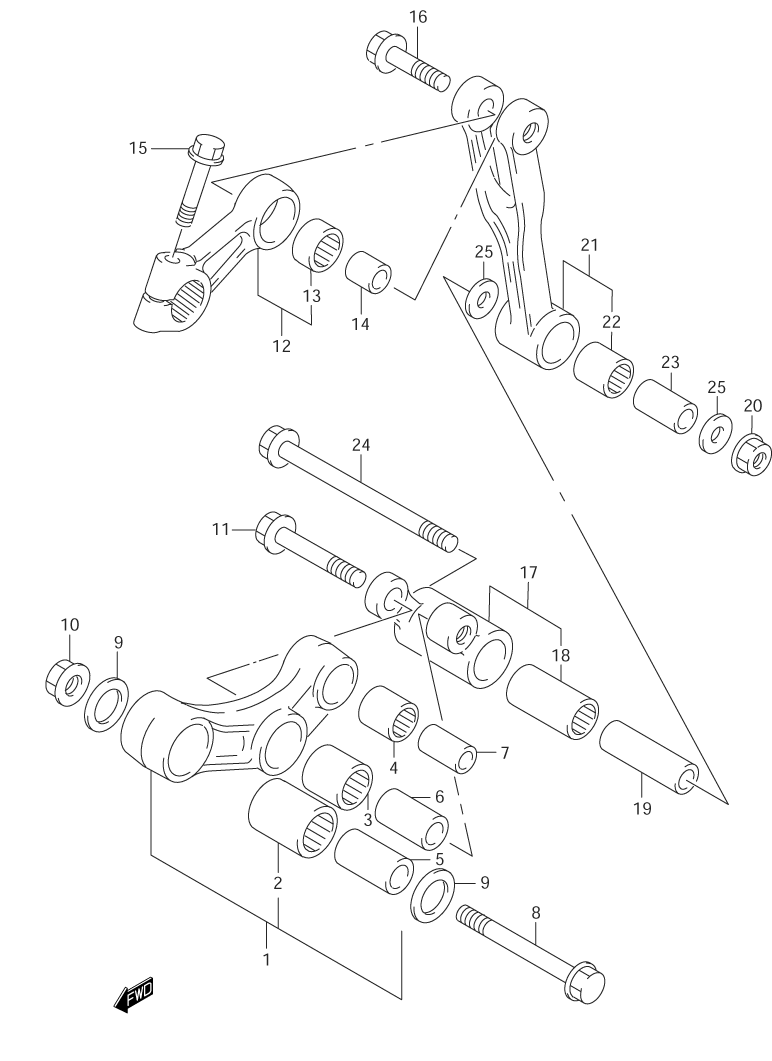

SUSPENSION - CUSHION LEVER для Suzuki TL-1000R K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    62600-02870 LEVER SET (REAR) CUSHION
    LEVER SET (REAR) CUSHION
  • 2
    09263-20074 ...BEARING (FRONT) (20X27X32)
    ...BEARING (FRONT) (20X27X32)
  • 3
    09263-20074 ...BEARING (CENTER) (20X27X32)
    ...BEARING (CENTER) (20X27X32)
  • 4
    09263-17034 ...BEARING (REAR) (17X24X26)
    ...BEARING (REAR) (17X24X26)
  • 5
    62317-27C10 SPACER, LEVER (FRONT) (12X20X34)
    SPACER, LEVER (FRONT) (12X20X34)
  • 6
    62317-27C10 SPACER, LEVER (CENTER) (12X20X34)
    SPACER, LEVER (CENTER) (12X20X34)
  • 7
    62684-40A10 SPACER, LEVER (REAR) (10X17X30)
    SPACER, LEVER (REAR) (10X17X30)
  • 8
    62658-33E00 BOLT, LEVER (FRONT) (12X72)
    BOLT, LEVER (FRONT) (12X72)
  • 9
    09181-20186 WASHER, LEVER (FRONT) (20X30X0.50)
    WASHER, LEVER (FRONT) (20X30X0.50)
  • 10
    08319-31128 NUT (FRONT)
    NUT (FRONT)
  • 11
    62668-42A02 BOLT, LEVER (CENTER) (12X62)
    BOLT, LEVER (CENTER) (12X62)
  • 12
    62600-02880 ARM SET (REAR) CUSHION
    ARM SET (REAR) CUSHION
  • 13
    09263-17042 ...BEARING (17X25X16.7)
    ...BEARING (17X25X16.7)
  • 14
    62646-02FA0 SPACER, ARM (10X17X19)
    SPACER, ARM (10X17X19)
  • 15
    09103-08042 BOLT, ARM (8X31)
    BOLT, ARM (8X31)
  • 16
    09103-10044 BOLT, ARM (10X40)
    BOLT, ARM (10X40)
  • 17
    62650-02820 ROD SET, CUSHION (REAR/RIGHT)
    ROD SET, CUSHION (REAR/RIGHT)
  • 18
    09263-20071 ...BEARING (20X27X23.5)
    ...BEARING (20X27X23.5)
  • 19
    62317-02FA0 SPACER, ROD (RIGHT) (12X20X57)
    SPACER, ROD (RIGHT) (12X20X57)
  • 20
    08319-31128 NUT
    NUT
  • 21
    62640-02820 ROD SET, CUSHION (REAR/RIGHT)
    ROD SET, CUSHION (REAR/RIGHT)
  • 22
    09263-20064 ...BEARING (20X27X26)
    ...BEARING (20X27X26)
  • 23
    62684-01D00 SPACER, ROD (LEFT) (12X20X30)
    SPACER, ROD (LEFT) (12X20X30)
  • 24
    62657-31301 BOLT, ROD (12X131)
    BOLT, ROD (12X131)
  • 25
    09181-20184 SHIM (20X28X1.50)
    SHIM (20X28X1.50)
