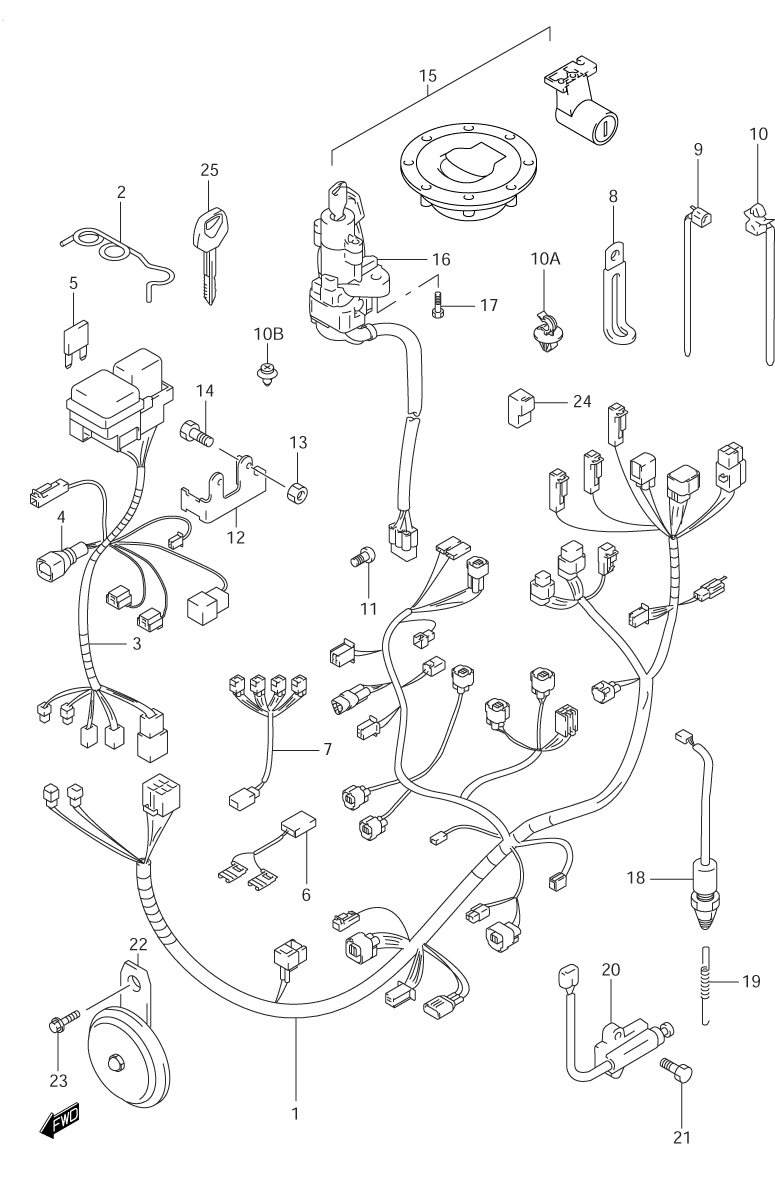

ELECTRICAL - WIRING HARNESS для Suzuki TL-1000R K1 - 2001 года выпуска`
-
№АртикулНазвание
-
136610-02F60 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
236619-02F00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
336620-02F60 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
436618-33E00 ...COVER, SPEEDOMETER...COVER, SPEEDOMETER
-
5-109481-10501 ...FUSE (10A)...FUSE (10A)
-
5-209481-15501 ...FUSE (15A)...FUSE (15A)
-
636852-02F00 WIRE, IGNITION COIL LEADWIRE, IGNITION COIL LEAD
-
736854-02F60 WIRE, INJECTION LEADWIRE, INJECTION LEAD
-
8-109404-06432 CLAMP (L:80)CLAMP (L:80)
-
8-209404-06433 CLAMP (L:95)CLAMP (L:95)
-
9-109407-14403 CLAMP (L:125)CLAMP (L:125)
-
9-209407-18402 CLAMP (L:165)CLAMP (L:165)
-
9-309407-25401 CLAMP (L:235)CLAMP (L:235)
-
10-109407-11402 CLAMP (L:90)CLAMP (L:90)
-
10-209407-14408 CLAMP (L:120)CLAMP (L:120)
-
10-309407-17401 CLAMP (L:150)CLAMP (L:150)
-
10A09403-07325 CLAMPCLAMP
-
10B09409-07305-5PK CLIPCLIP
-
1101550-06123 BOLTBOLT
-
1236744-33E00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1394619-27A00 NUT, FUSE BOXNUT, FUSE BOX
-
1402142-05123 SCREW, FUSE BOXSCREW, FUSE BOX
-
15-137103-33870 LOCK SET (EXCEPT CALIF.)LOCK SET (EXCEPT CALIF.)
-
15-237103-33880 LOCK SET (CALIF. ONLY)LOCK SET (CALIF. ONLY)
-
1637100-33E20 ...LOCK ASSY., STEERING...LOCK ASSY., STEERING
-
1709139-08016 SCREW (8X20)SCREW (8X20)
-
1837740-31D00 SWITCH ASSY., STOP LAMPSWITCH ASSY., STOP LAMP
-
1909443-06012 SPRINGSPRING
-
2037840-26X50 SWITCH ASSY., SIDE STANDSWITCH ASSY., SIDE STAND
-
2101550-06163 BOLTBOLT
-
2238500-02F60 HORN ASSY.HORN ASSY.
-
2301550-08123 BOLTBOLT
-
2438740-26E00 RELAY ASSY., FUELRELAY ASSY., FUEL
-
2537146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
