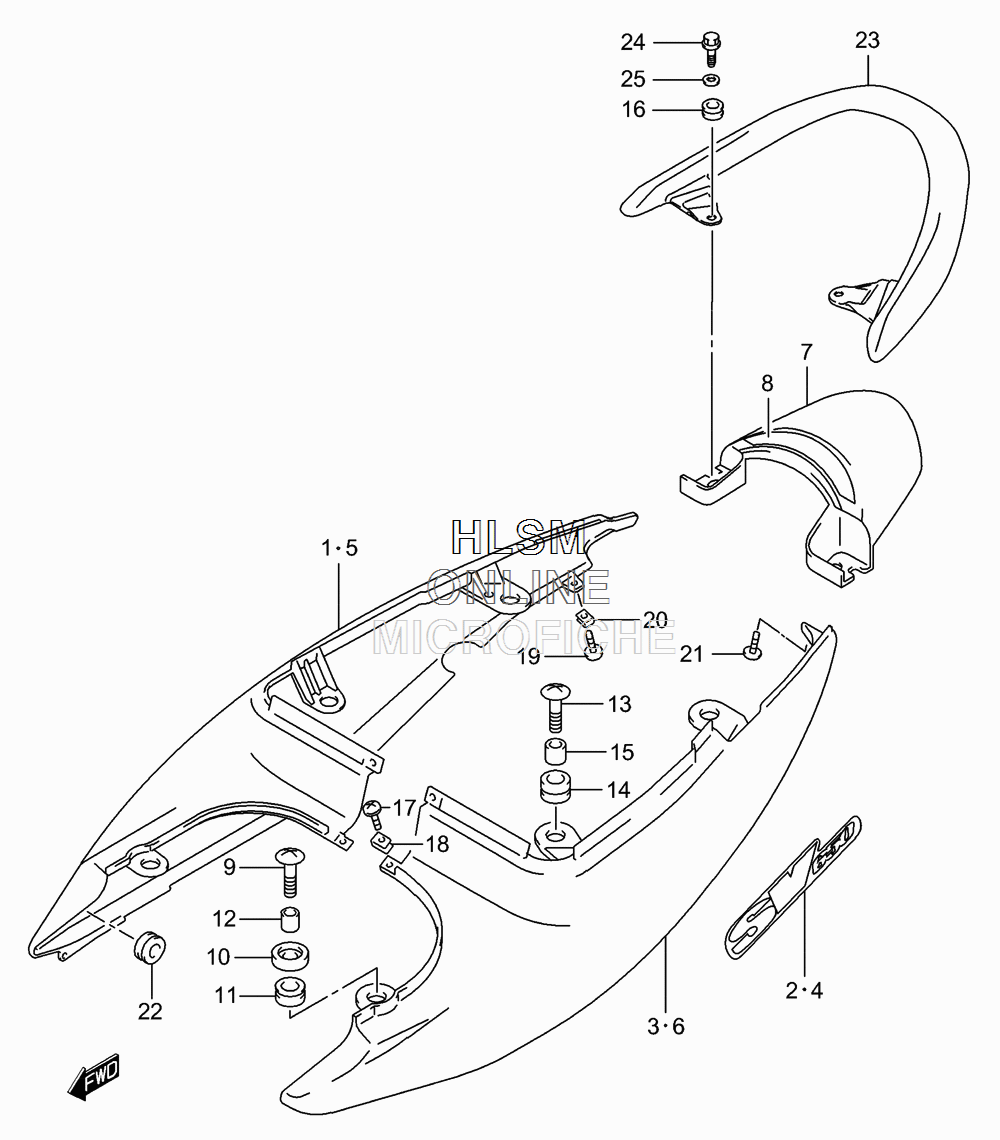

SEAT TAIL COVER для Suzuki SV650 K1 - 2001 года выпуска
-
№АртикулНазвание
-
145501-20F00-YEX COVER, SEAT TAIL RIGHT HAND (BLUE) FOR YC2COVER, SEAT TAIL RIGHT HAND (BLUE) FOR YC2
-
145501-20F00-YFX COVER, SEAT TAIL RIGHT HAND (BLACK) FOR Y7LCOVER, SEAT TAIL RIGHT HAND (BLACK) FOR Y7L
-
145501-20F00-19A COVER, SEAT TAIL RIGHT HAND (RED) FOR 19ACOVER, SEAT TAIL RIGHT HAND (RED) FOR 19A
-
145501-20F00-Y9H COVER, SEAT TAIL RIGHT HAND (YELLOW) (INC. 2) FOR Y9HCOVER, SEAT TAIL RIGHT HAND (YELLOW) (INC. 2) FOR Y9H
-
268165-20F00-ED9 EMBLEM, TAIL COVER,SV650 FOR YEXEMBLEM, TAIL COVER,SV650 FOR YEX
-
268165-20F00-ED1 EMBLEM, TAIL COVER,SV650 FOR YFXEMBLEM, TAIL COVER,SV650 FOR YFX
-
268165-20F00-ED6 EMBLEM, TAIL COVER,SV650 FOR 19AEMBLEM, TAIL COVER,SV650 FOR 19A
-
268165-20F00-ED1 EMBLEM, TAIL COVER,SV650 FOR Y9HEMBLEM, TAIL COVER,SV650 FOR Y9H
-
345502-20F00-YEX COVER, SEAT TAIL LEFT HAND (BLUE) FOR YC2COVER, SEAT TAIL LEFT HAND (BLUE) FOR YC2
-
345502-20F00-YFX COVER, SEAT TAIL LEFT HAND (BLACK) FOR Y7LCOVER, SEAT TAIL LEFT HAND (BLACK) FOR Y7L
-
345502-20F00-19A C0VER, SEAT TAIL LEFT HAND (RED) FOR 19AC0VER, SEAT TAIL LEFT HAND (RED) FOR 19A
-
345502-20F00-Y9H COVER, SEAT TAIL LEFT HAND (YELLOW) FOR Y9HCOVER, SEAT TAIL LEFT HAND (YELLOW) FOR Y9H
-
468165-20F00-ED9 EMBLEM, TAIL COVER,SV650 FOR YEXEMBLEM, TAIL COVER,SV650 FOR YEX
-
468165-20F00-ED1 EMBLEM, TAIL COVER,SV650 FOR YFXEMBLEM, TAIL COVER,SV650 FOR YFX
-
468165-20F00-ED6 EMBLEM, TAIL COVER,SV650 FOR 19AEMBLEM, TAIL COVER,SV650 FOR 19A
-
468165-20F00-ED1 EMBLEM, TAIL COVER,SV650 FOR Y9HEMBLEM, TAIL COVER,SV650 FOR Y9H
-
745503-19F50-35W COVER, SEAT TAIL CENTER (GRAY) FOR YC2,19A,Y9HCOVER, SEAT TAIL CENTER (GRAY) FOR YC2,19A,Y9H
-
745503-19F50-Y7L COVER, SEAT TAIL CENTER (BLACK) FOR Y7LCOVER, SEAT TAIL CENTER (BLACK) FOR Y7L
-
845514-19F00 TAPE, SEAT TAIL COVER CENTERTAPE, SEAT TAIL COVER CENTER
-
909136-06083 SCREW, FRONT (6X30)SCREW, FRONT (6X30)
-
1047116-19F00 CUSHION, FR UPPER (10X28X13)CUSHION, FR UPPER (10X28X13)
-
1147115-19F00 CUSHION, FR LOWER (10X22X15)CUSHION, FR LOWER (10X22X15)
-
1209180-06294 SPACER (6.5X10X15.70)SPACER (6.5X10X15.70)
-
1309136-06105 SCREW, CENTER (6X20)SCREW, CENTER (6X20)
-
1409320-10045 CUSHION (10X28X19)CUSHION (10X28X19)
-
1509180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
1647115-05F00 CUSHION, REAR (15X28X12)CUSHION, REAR (15X28X12)
-
1703241-15123 SCREWSCREW
-
1809148-05038 NUTNUT
-
1903241-15123 SCREWSCREW
-
2009148-05038 NUTNUT
-
2103242-04103 SCREWSCREW
-
2209320-08018 CUSHION (8X26X7)CUSHION (8X26X7)
-
2346210-19F50-291 HANDLE, PILLION RIDER (BLACK)HANDLE, PILLION RIDER (BLACK)
-
2401551-08253 BOLTBOLT
-
2509160-08126 WASHERWASHER
