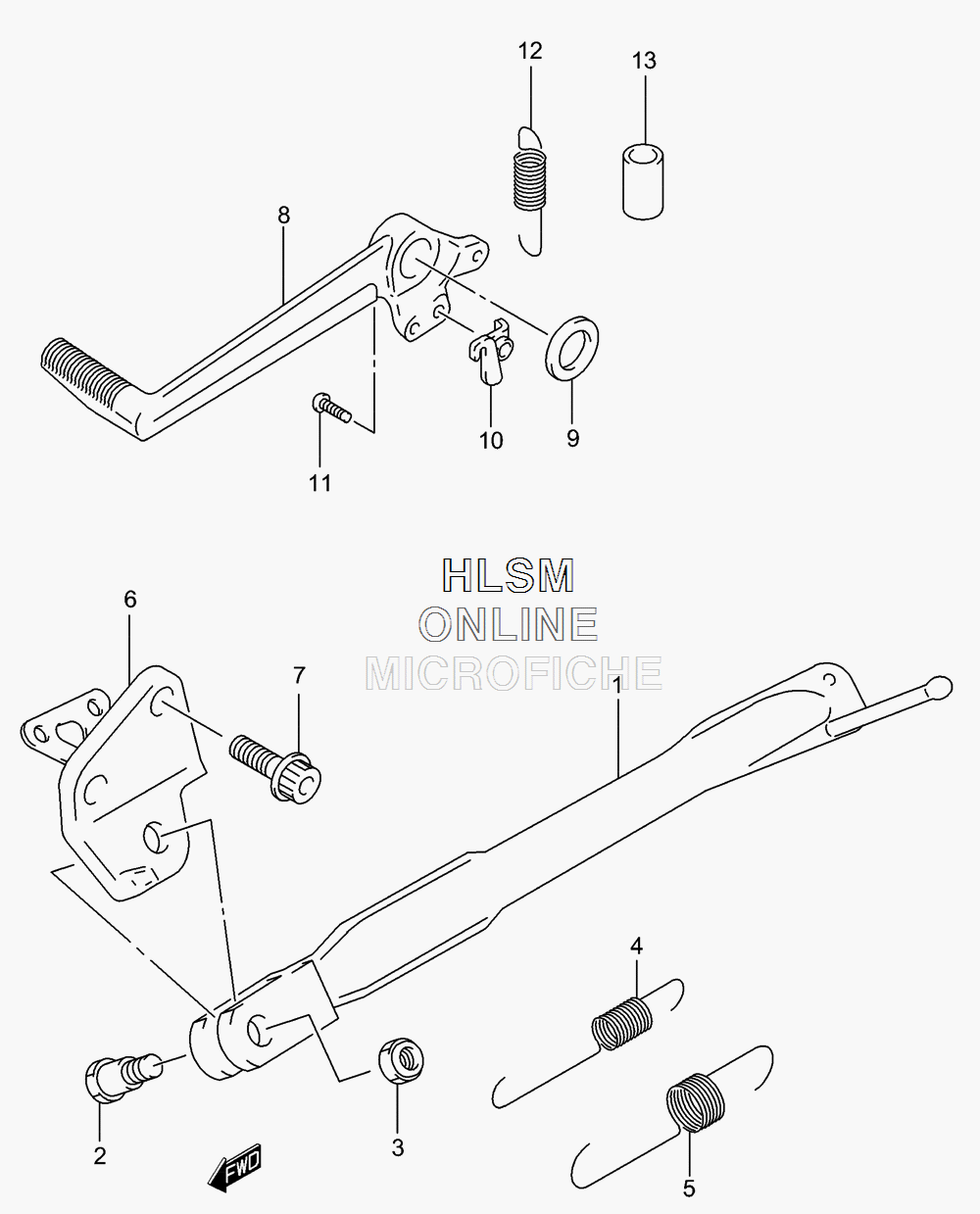

BRAKE PEDAL W/ STAND для Suzuki SV650 K1 - 2001 года выпуска`
-
№АртикулНазвание
-
142310-19F00 STAND, PROPSTAND, PROP
-
209111-10027 BOLTBOLT
-
308319-21103 NUTNUT
-
409443-14066 SPRING, INNERSPRING, INNER
-
509443-19012 SPRING, OUTERSPRING, OUTER
-
642330-19F01 BRACKET, PROP STANDBRACKET, PROP STAND
-
707120-10303 BOLTBOLT
-
843111-33E00 PEDAL, BRAKEPEDAL, BRAKE
-
909160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1043561-33E00 HOOK, RETURN SPRINGHOOK, RETURN SPRING
-
1102112-05163 SCREWSCREW
-
1209443-13029 SPRINGSPRING
-
1343261-17C00 TUBE, SPRING GUIDETUBE, SPRING GUIDE
