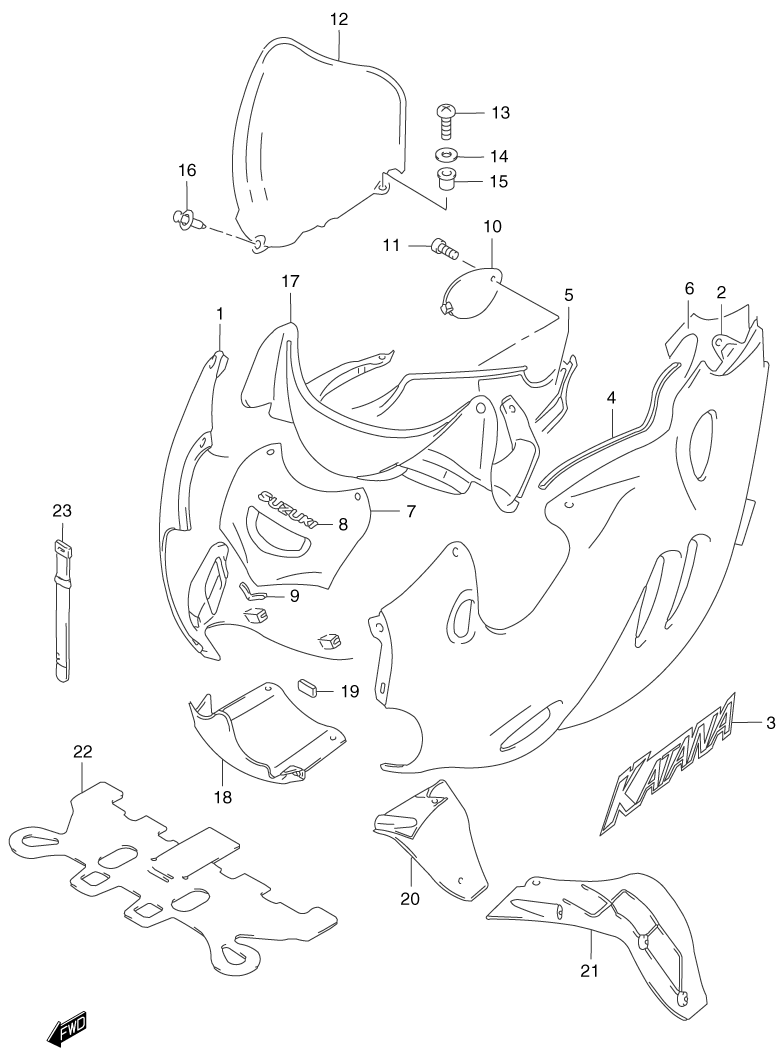

COWLING BODY для Suzuki GSX750F K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94403-08FG0-Y7L COWL ASSY. SIDE (RIGHT) (Y7L - BLACK)
    COWL ASSY. SIDE (RIGHT) (Y7L - BLACK)
  • 1-2
    94403-08FG0-YC7 COWL ASSY. SIDE (RIGHT) (YC7 - GOLD)
    COWL ASSY. SIDE (RIGHT) (YC7 - GOLD)
  • 2-1
    94404-08FG0-Y7L COWL ASSY. SIDE (LEFT) (Y7L - BLACK) (EXCEPT CALIF.)
    COWL ASSY. SIDE (LEFT) (Y7L - BLACK) (EXCEPT CALIF.)
  • 2-2
    94404-08FG0-YC7 COWL ASSY. SIDE (LEFT) (YC7 - GOLD) (EXCEPT CALIF.)
    COWL ASSY. SIDE (LEFT) (YC7 - GOLD) (EXCEPT CALIF.)
  • 2-3
    94404-08FH0-Y7L COWL ASSY. SIDE (LEFT) (Y7L - BLACK) (CALIF.ONLY)
    COWL ASSY. SIDE (LEFT) (Y7L - BLACK) (CALIF.ONLY)
  • 2-4
    94404-08FH0-YC7 COWL ASSY. SIDE (LEFT) (YC7 - GOLD) (CALIF.ONLY)
    COWL ASSY. SIDE (LEFT) (YC7 - GOLD) (CALIF.ONLY)
  • 3-1
    68681-08F50-EF7 ...EMBLEM, KATANA (EF7 - BLACK/BLACK/RED/BLACK) (FOR Y7L - BLACK)
    ...EMBLEM, KATANA (EF7 - BLACK/BLACK/RED/BLACK) (FOR Y7L - BLACK)
  • 3-2
    68681-08F50-EF9 ...EMBLEM, KATANA (EF9 - SILVERE/BLACK/RED/GOLD) (FOR YC7 - GOLD)
    ...EMBLEM, KATANA (EF9 - SILVERE/BLACK/RED/GOLD) (FOR YC7 - GOLD)
  • 4
    94631-44110 ...MOLDING
    ...MOLDING
  • 5
    94439-08F00 ...SHIELD, SIDE (RIGHT)
    ...SHIELD, SIDE (RIGHT)
  • 6
    94449-08F00 ...SHIELD, SIDE (LEFT)
    ...SHIELD, SIDE (LEFT)
  • 7-1
    94410-08F00-Y7L PANEL (CENTER) (UPPER) (Y7L - BLACK)
    PANEL (CENTER) (UPPER) (Y7L - BLACK)
  • 7-2
    94410-08F00-YC7 PANEL (CENTER) (UPPER) (YC7 - GOLD)
    PANEL (CENTER) (UPPER) (YC7 - GOLD)
  • 8-1
    68185-05C10-20H ...EMBLEM, SUZUKI (20H - SILVER) (FOR Y7L - BLACK)
    ...EMBLEM, SUZUKI (20H - SILVER) (FOR Y7L - BLACK)
  • 8-2
    68185-05C10-Y7L ...EMBLEM, SUKIKI (Y7L - BLACK) (FOR YC7 - GOLD)
    ...EMBLEM, SUKIKI (Y7L - BLACK) (FOR YC7 - GOLD)
  • 9
    94413-08F00 ...CUSHION, (UPPER)
    ...CUSHION, (UPPER)
  • 10-1
    94435-08F00-Y7L LID, OIL (Y7L - BLACK)
    LID, OIL (Y7L - BLACK)
  • 10-2
    94435-08F00-YC7 LID, OIL (YC7 - GOLD)
    LID, OIL (YC7 - GOLD)
  • 11
    09139-06030 SCREW
    SCREW
  • 12
    94611-08F00 WIND SCREEN
    WIND SCREEN
  • 13
    09139-05025 SCREW
    SCREW
  • 14
    08322-01053 WASHER
    WASHER
  • 15
    09159-05019 NUT
    NUT
  • 16
    09409-08308-5ES CLIP (BLACK)
    CLIP (BLACK)
  • 17
    94421-08F00 PANEL, METER
    PANEL, METER
  • 18-1
    94412-08F00-Y7L PANEL (CENTER) (LOWER) (Y7L - BLACK)
    PANEL (CENTER) (LOWER) (Y7L - BLACK)
  • 18-2
    94412-08F00-YC7 PANEL (CENTER) (LOWER) (YC7 - GOLD)
    PANEL (CENTER) (LOWER) (YC7 - GOLD)
  • 19
    94414-08F00 CUSHION (LOWER)
    CUSHION (LOWER)
  • 20-1
    94461-08F00-Y7L PANEL, INNER (RIGHT) (Y7L - BLACK)
    PANEL, INNER (RIGHT) (Y7L - BLACK)
  • 20-2
    94461-08F00-YC7 PANEL, INNER (RIGHT) (YC7 - GOLD)
    PANEL, INNER (RIGHT) (YC7 - GOLD)
  • 21-1
    94462-08F00-Y7L PANEL, INNER (LEFT) (Y7L - BLACK)
    PANEL, INNER (LEFT) (Y7L - BLACK)
  • 21-2
    94462-08F00-YC7 PANEL, INNER (LEFT) (YC7 - GOLD)
    PANEL, INNER (LEFT) (YC7 - GOLD)
  • 22
    94451-20C01 PLATE, AIR GUIDE
    PLATE, AIR GUIDE
  • 23-1
    09407-18402 CLAMP (L:165)
    CLAMP (L:165)
  • 23-2
    09407-25401 CLAMP (L:235)
    CLAMP (L:235)
