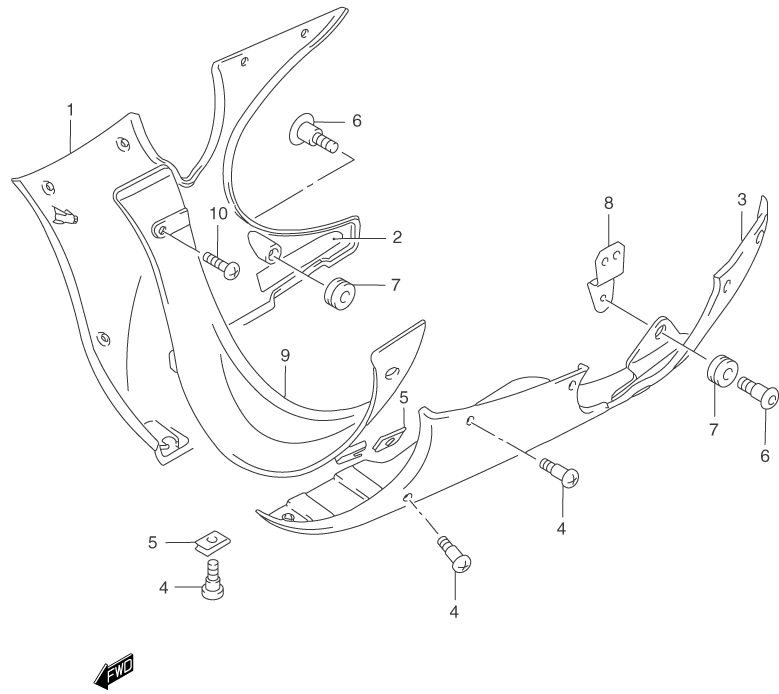

COWLING - UNDER BODY - INSTALLATION PARTS для Suzuki GSX750F K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94470-08F00-24K COWLING (UNDER) (RIGHT) (24K - CHARCOAL) (FOR Y7L - BLACK)
    COWLING (UNDER) (RIGHT) (24K - CHARCOAL) (FOR Y7L - BLACK)
  • 1-2
    94470-08F00-Y7L COWLING (UNDER) (RIGHT) (Y7L - BLACK) (FOR YC7 - GOLD)
    COWLING (UNDER) (RIGHT) (Y7L - BLACK) (FOR YC7 - GOLD)
  • 2
    94472-08F00 ...SHIELD (UNDER) COWL
    ...SHIELD (UNDER) COWL
  • 3-1
    94481-08F00-24K COWLING (UNDER) (LEFT) (CHARCOAL) (FOR Y7L - BLACK)
    COWLING (UNDER) (LEFT) (CHARCOAL) (FOR Y7L - BLACK)
  • 3-2
    94481-08F00-Y7L COWLING (UNDER) (LEFT) (Y7L - BLACK) (FOR YC7 - GOLD)
    COWLING (UNDER) (LEFT) (Y7L - BLACK) (FOR YC7 - GOLD)
  • 4
    09139-05054 SCREW
    SCREW
  • 5
    94484-24F00 NUT
    NUT
  • 6
    09139-06087 SCREW (CENTER)
    SCREW (CENTER)
  • 7
    09320-09016 CUSHION
    CUSHION
  • 8
    94570-08F00 BRACKET (LOWER) (LEFT)
    BRACKET (LOWER) (LEFT)
  • 9
    94475-08F00 COWLING (UNDER) (CENTER)
    COWLING (UNDER) (CENTER)
  • 10
    03541-05123 SCREW
    SCREW
