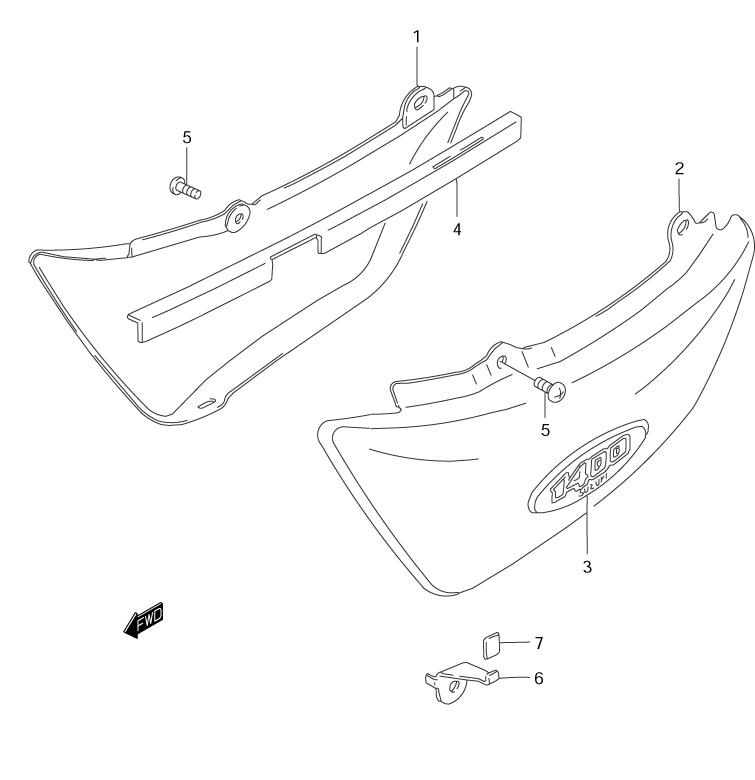

SIDE COVER для Suzuki VS-1400GLP Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-38B00-33J COVER, FRAME (RIGHT) (33J - BLACK)
    COVER, FRAME (RIGHT) (33J - BLACK)
  • 1-2
    47110-38B00-22U COVER, FRAME (RIGHT) (22U - MAROON) (FOR G2P)
    COVER, FRAME (RIGHT) (22U - MAROON) (FOR G2P)
  • 1-3
    47110-38B00-Y7G COVER, FRAME (RIGHT) (Y7G - GREEN) (FOR N3W)
    COVER, FRAME (RIGHT) (Y7G - GREEN) (FOR N3W)
  • 1-4
    47110-38B00-Y7H COVER, FRAME (RIGHT) (Y7H - BLUE) (FOR ER5)
    COVER, FRAME (RIGHT) (Y7H - BLUE) (FOR ER5)
  • 2-1
    47210-38B00-33J COVER, FRAME (LEFT) (33J - BLACK) (FOR G2E)
    COVER, FRAME (LEFT) (33J - BLACK) (FOR G2E)
  • 2-2
    47210-38B00-22U COVER, FRAME (LEFT) (22U - MAROON) (FOR G2P)
    COVER, FRAME (LEFT) (22U - MAROON) (FOR G2P)
  • 2-3
    47210-38B00-Y7G COVER, FRAME (LEFT) (Y7G - GREEN) (FOR N3W)
    COVER, FRAME (LEFT) (Y7G - GREEN) (FOR N3W)
  • 2-4
    47210-38B00-Y7H COVER, FRAME (LEFT) (Y7H - BLUE) (FOR ER5)
    COVER, FRAME (LEFT) (Y7H - BLUE) (FOR ER5)
  • 3-2
    68131-38B30-YE9 EMBLEM, FRAME COVER (YE9 - GOLD)
    EMBLEM, FRAME COVER (YE9 - GOLD)
  • 4
    47165-38B00 PROTECTOR
    PROTECTOR
  • 5
    02142-06123 SCREW
    SCREW
  • 6
    47171-38B00 HOOK, FRAME COVER (LEFT)
    HOOK, FRAME COVER (LEFT)
  • 7
    47175-38B00 CUSHION, HOOK
    CUSHION, HOOK
