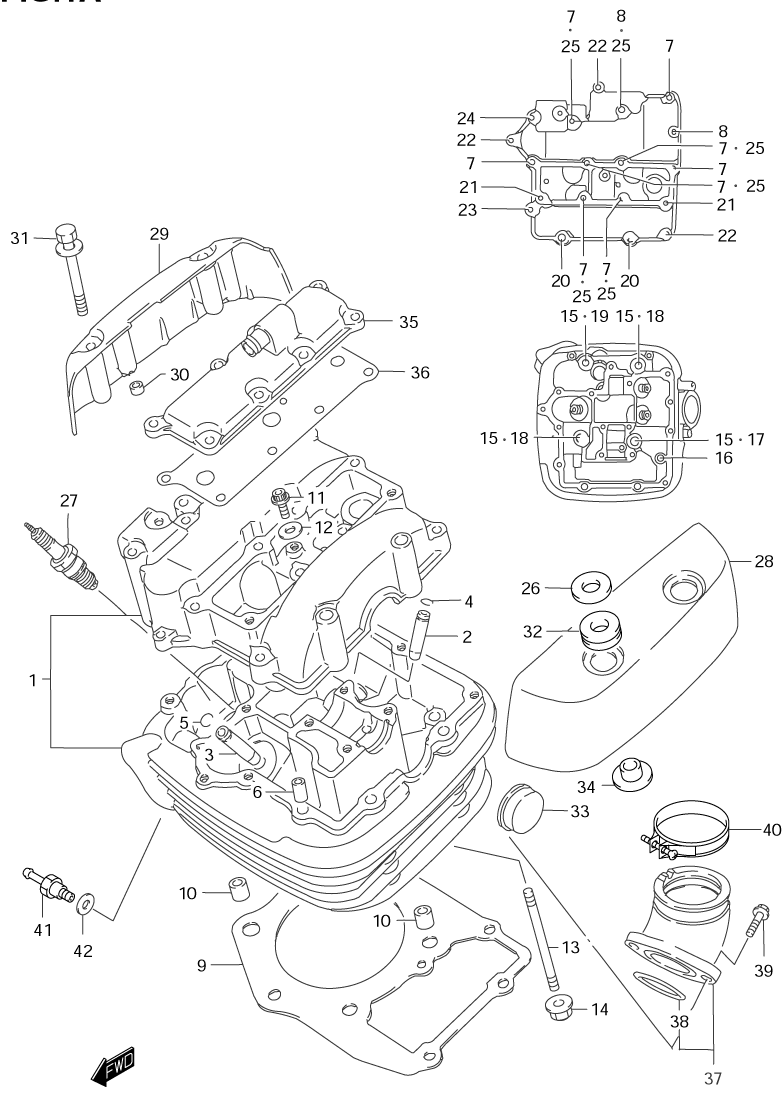

CYLINDER HEAD (FRONT) для Suzuki VS-1400GLP Y - 2000 года выпуска`
-
№АртикулНазвание
-
1-211101-38B50 HEAD, CYLINDER FRONT ASSY.HEAD, CYLINDER FRONT ASSY.
-
211115-38B70 ...GUIDE, VALVE INTAKE (OS:0.3)...GUIDE, VALVE INTAKE (OS:0.3)
-
311115-45740 ...GUIDE, VALVE EXHAUST (OS:0.3...GUIDE, VALVE EXHAUST (OS:0.3
-
409381-10004 ...RING, VALVE GUIDE INTAKE...RING, VALVE GUIDE INTAKE
-
509381-10003 ...RING, VALVE GUIDE EXHAUST...RING, VALVE GUIDE EXHAUST
-
609206-08001 ...PIN...PIN
-
709103-06064 ...BOLT (6X60)...BOLT (6X60)
-
809103-06102 ...BOLT (6X55)...BOLT (6X55)
-
911141-38B00 GASKET, CYLINDER HEAD FRONTGASKET, CYLINDER HEAD FRONT
-
1004211-13189 PINPIN
-
11-107120-06127 BOLT, OIL GALLERYBOLT, OIL GALLERY
-
11-207120-06123 BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1209168-06018 GASKETGASKET
-
1309108-08142 STUD BOLT (L:30)STUD BOLT (L:30)
-
1408316-10087 NUTNUT
-
15-209160-10060 WASHERWASHER
-
1609103-08099 BOLT (8X70)BOLT (8X70)
-
1709103-10178 BOLT (10X180)BOLT (10X180)
-
1809103-10179 BOLT (10X190)BOLT (10X190)
-
1909103-10180 BOLT (10X200)BOLT (10X200)
-
2009103-08213 BOLT (8X268)BOLT (8X268)
-
21-101550-06207 BOLTBOLT
-
21-201550-06203 BOLTBOLT
-
22-101550-06307 BOLTBOLT
-
22-201550-06303 BOLTBOLT
-
23-101550-06357 BOLTBOLT
-
23-201550-06353 BOLTBOLT
-
24-101550-06707 BOLTBOLT
-
24-201550-06703 BOLTBOLT
-
2509168-06023 GASKETGASKET
-
26-209160-08130 WASHERWASHER
-
27-109482-00334 SPARK PLUG (NGK,DPR8EA-9)SPARK PLUG (NGK,DPR8EA-9)
-
27-209482-00335-111 SPARK PLUG (ND,X24EPR-U9)SPARK PLUG (ND,X24EPR-U9)
-
27-709482-00354 SPARK PLUG (NGK,DPR7EA-9) (OPT)SPARK PLUG (NGK,DPR7EA-9) (OPT)
-
27-809482-00355-111 SPARK PLUG (ND,X22EPR-U9) (OPT)SPARK PLUG (ND,X22EPR-U9) (OPT)
-
27-909482-00330 SPARK PLUG (NGK,DPR9EA-9) (OPT)SPARK PLUG (NGK,DPR9EA-9) (OPT)
-
27-1009482-00331-111 SPARK PLUG (ND,X27EPR-U9) (OPT)SPARK PLUG (ND,X27EPR-U9) (OPT)
-
2811171-38B00 CAP, HEAD COVER (LEFT)CAP, HEAD COVER (LEFT)
-
2911172-38B00 CAP, HEAD COVER (RIGHT)CAP, HEAD COVER (RIGHT)
-
3011273-24B00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
31-201244-06607 BOLTBOLT
-
3209320-13015 CUSHIONCUSHION
-
3309241-30008 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
3409301-08007 BUSHBUSH
-
3511180-38B10 COVER, BREATHERCOVER, BREATHER
-
3611177-38B01-H17 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
37-213101-38B01 PIPE, INTAKE FRONTPIPE, INTAKE FRONT
-
3809280-42003 ...O-RING (D:2.4,ID:41.7)...O-RING (D:2.4,ID:41.7)
-
3901550-06163 BOLTBOLT
-
4009402-52501 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
4109362-06002 UNION, INTAKE PORTUNION, INTAKE PORT
-
4209168-06018 GASKETGASKET
