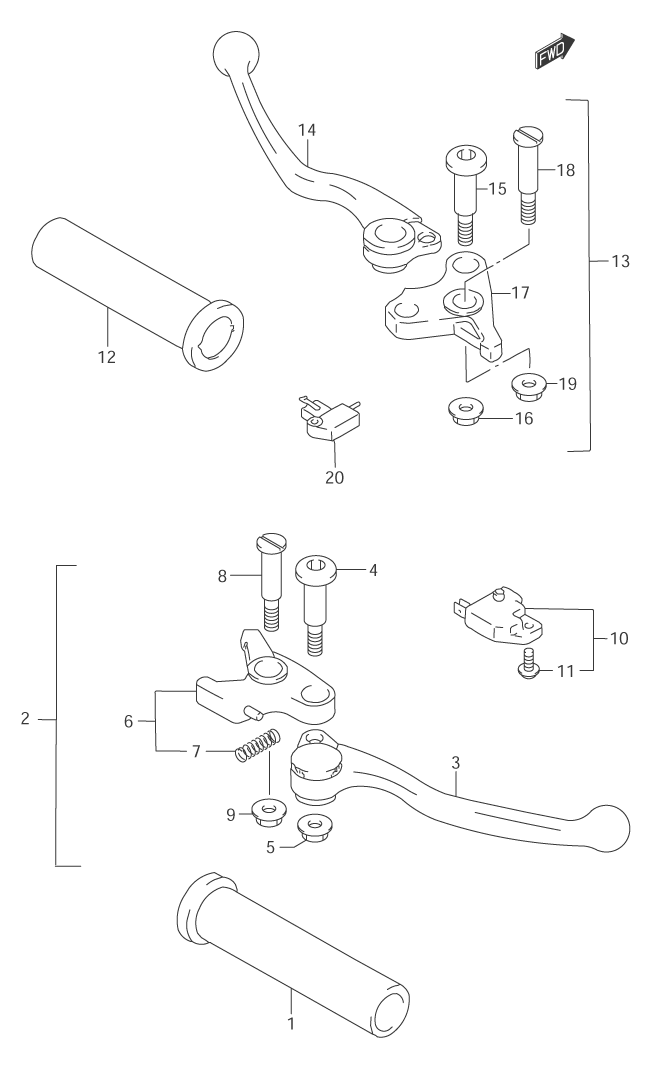

HANDLEBAR - LEVERS W/ GRIPS для Suzuki VL1500 Y - 2000 года выпуска
-
№АртикулНазвание
-
157110-26D00 GRIP, THROTTLEGRIP, THROTTLE
-
257300-40C20 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
357420-32C00 ...LEVER...LEVER
-
457437-32C01 ...BOLT, LEVER...BOLT, LEVER
-
508319-31063 ...NUT...NUT
-
657430-40C10 ...KNOCKER...KNOCKER
-
757438-32C00 ......SPRING......SPRING
-
857431-17C00 ...BOLT, PIVOT...BOLT, PIVOT
-
908316-10063 ...NUT...NUT
-
1057460-17C00 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1157465-17C00 ...SCREW...SCREW
-
1257210-26D00 GRIP, (LEFT)GRIP, (LEFT)
-
1357500-10F00 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1457620-10F00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1557437-32C01 ...BOLT, LEVER...BOLT, LEVER
-
1608319-31063 ...NUT...NUT
-
1757430-10F00 ...KNOCKER...KNOCKER
-
1857431-17C00 ...BOLT, PIVOT...BOLT, PIVOT
-
1908316-10063 ...NUT...NUT
-
2057560-10F00 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
