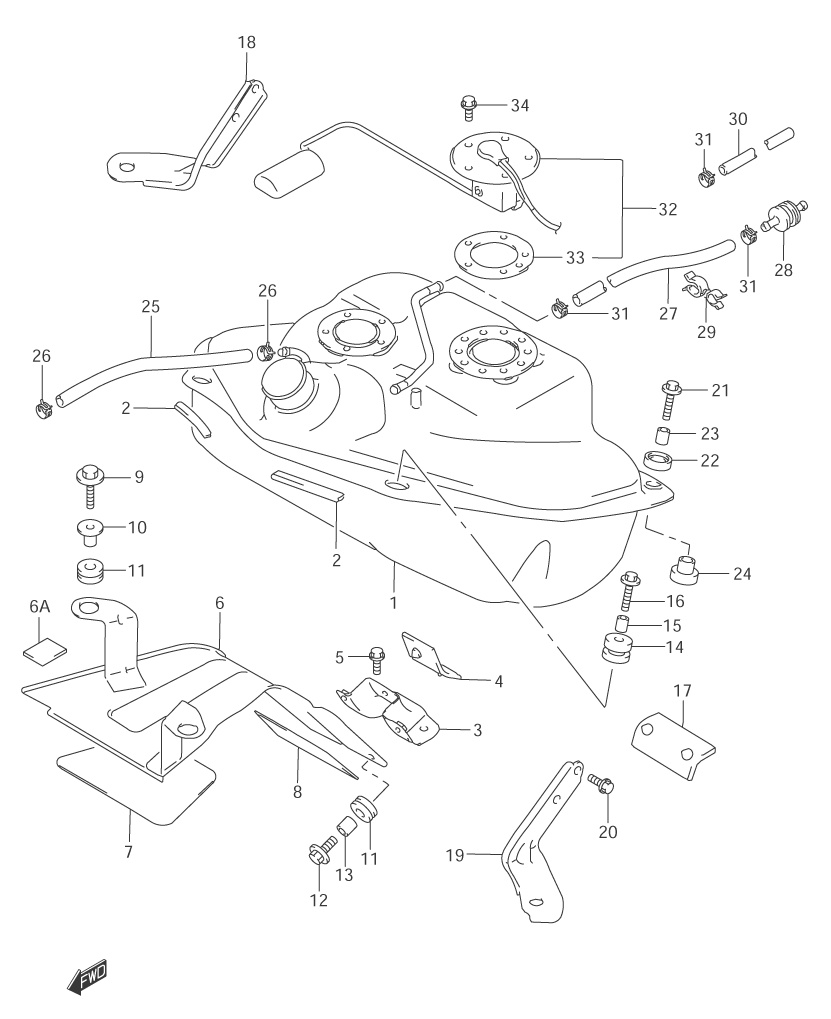

FUEL TANK для Suzuki VL1500 Y - 2000 года выпуска
-
№АртикулНазвание
-
144110-10F10 TANK, FUELTANK, FUEL
-
268241-04X50-00B MOLDINGMOLDING
-
344130-10F00 BRACKET, (FRONT)BRACKET, (FRONT)
-
444511-10F00 CUSHION, BRACKETCUSHION, BRACKET
-
501550-06103 BOLTBOLT
-
644270-10F02 COVER, FUEL TANK (FRONT)COVER, FUEL TANK (FRONT)
-
6A61544-94500 CUSHIONCUSHION
-
744267-10F00 SHIELD, COVER (UPPER)SHIELD, COVER (UPPER)
-
844268-10F00 SHIELD, COVER (LOWER)SHIELD, COVER (LOWER)
-
909116-06171 BOLT, COVER (UPPER)BOLT, COVER (UPPER)
-
1009169-06070 WASHERWASHER
-
1109320-08001 CUSHIONCUSHION
-
1209116-06115 BOLT, COVER (LOWER)BOLT, COVER (LOWER)
-
1309180-06248 SPACERSPACER
-
1444512-04F00 CUSHION, (FRONT)CUSHION, (FRONT)
-
1509180-06267 SPACERSPACER
-
1609116-06172 BOLTBOLT
-
1744541-10F00 CUSHION, (REAR) (CENTER)CUSHION, (REAR) (CENTER)
-
1844150-10F00 BRACKET, (REAR) (RIGHT)BRACKET, (REAR) (RIGHT)
-
1944160-10F00 BRACKET, (REAR) (LEFT)BRACKET, (REAR) (LEFT)
-
2001550-06103 BOLT, BRACKETBOLT, BRACKET
-
2109116-06172 BOLT, FUEL TANK (REAR)BOLT, FUEL TANK (REAR)
-
2209320-14022 CUSHION, (UPPER)CUSHION, (UPPER)
-
2309180-06271 SPACERSPACER
-
2409320-10020 CUSHION, (LOWER)CUSHION, (LOWER)
-
2509355-11165-600 HOSE, AIR VENT (L:600->190)HOSE, AIR VENT (L:600->190)
-
2609401-15404 CLIPCLIP
-
2709355-54116-600 HOSE, TANK AND VALVE (L:600->150HOSE, TANK AND VALVE (L:600->150
-
2885451-75100 CHECK VALVE, 2 WAYCHECK VALVE, 2 WAY
-
2909408-00140 CLAMPCLAMP
-
3009355-54116-600 HOSE, VALVE AND CATCH (L:600->440)HOSE, VALVE AND CATCH (L:600->440)
-
3109401-10409 CLIPCLIP
-
3234810-10F10 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
3334825-45100 ...GASKET...GASKET
-
3409117-05003 BOLTBOLT
